Description

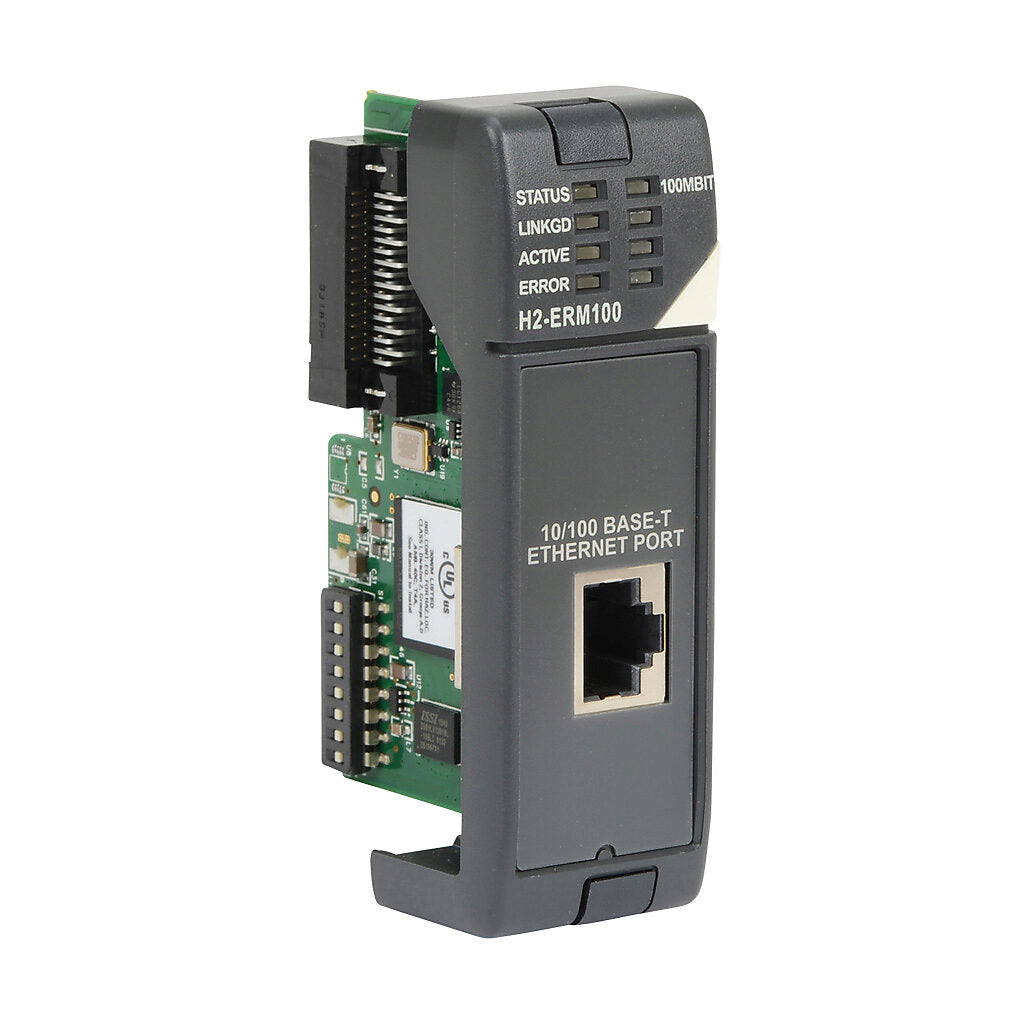

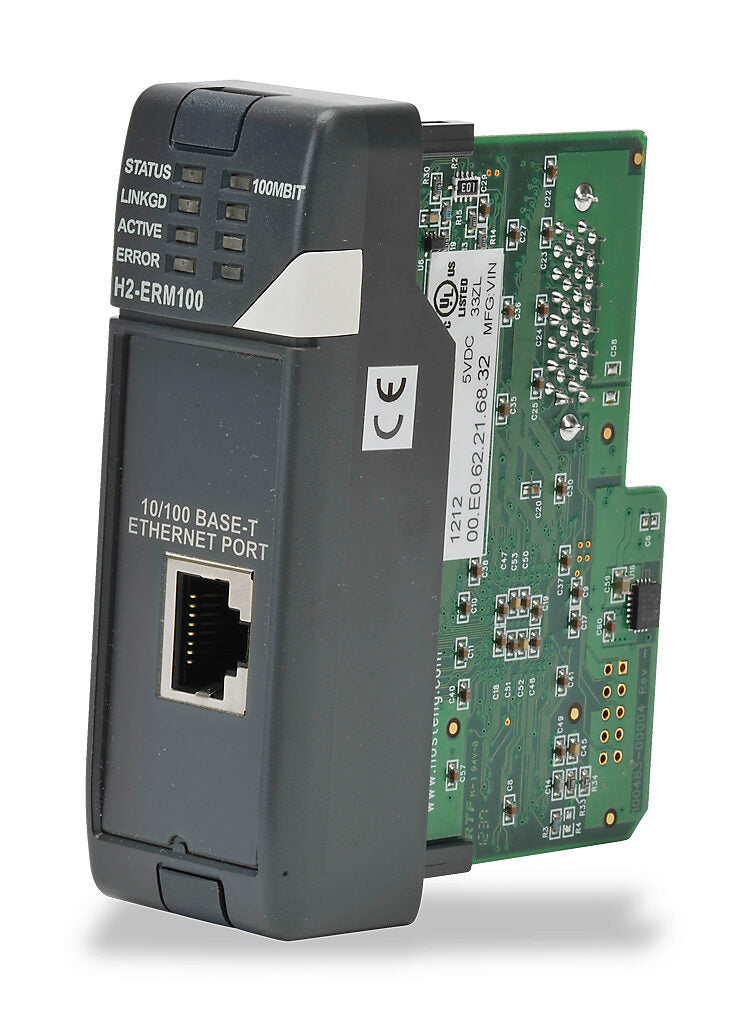

The Automation Direct H2-ERM100 is a DirectLOGIC DL205 Ethernet remote I/O module designed to extend PLC systems over industrial Ethernet networks. It provides a 10/100Base-T communication port for high-speed data exchange between compatible CPUs and distributed I/O bases. This module enables efficient remote I/O configuration for machine control and process automation applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Programmable Logic Controllers |
| Part Number |
H2-ERM100 |
| Subcategory |
Remote I/O Modules |
| Series |
DirectLOGIC DL205 |
| Item Type |
Ethernet remote I/O module |
| Number of Ports |
1 |
| Communication Port |
Ethernet 10/100Base-T |
| Supported Protocols |
IPX, TCP/IP, Ethernet remote I/O |
| Port Speed |
10/100 Mbps |
| Compatible CPUs |
D2-240, D2-250, D2-250-1, D2-260, D2-262, Do-more H2 series |
| Programming Software |
DirectSOFT v4.0 or later |
| Mounting |
DL205 base installation |
| Application |
Distributed remote I/O networking |
| Compatibility Note |
Not compatible with D2-230 CPU or H2-WPLCx-xx |
| Weight |
0.6 lb |
Information About H2-ERM100
The H2-ERM100 is part of the DirectLOGIC DL205 series of remote I/O modules engineered for Ethernet-based system expansion. It communicates using IPX, TCP/IP, and Ethernet remote I/O protocols to link local and remote DL205 bases. The module is compatible with D2-240, D2-250, D2-250-1, D2-260, D2-262, and Do-more H2 series CPUs, providing flexible architecture options for distributed control systems. Configuration and programming are performed using DirectSOFT v4.0 or later, and it is not compatible with D2-230 CPUs or H2-WPLCx-xx models.
Key Features:
- Ethernet Remote I/O Capability: Extends DL205 systems across Ethernet networks.
- 10/100Base-T Port: Supports high-speed industrial Ethernet communication.
- Multiple Protocol Support: Compatible with IPX, TCP/IP, and Ethernet remote I/O protocols.
- DL205 and Do-more Compatibility: Works with select D2 and H2 series CPUs.
- Distributed Control Architecture: Enables remote I/O base configuration for scalable automation.
- DirectSOFT Programming Support: Configurable using DirectSOFT v4.0 or later.
- Single Ethernet Port Design: Simplifies network integration within control panels.
- Industrial Application Focus: Designed for machine control and process system expansion.
The H2-ERM100 delivers the reliability and precision required for Ethernet-based remote I/O communication in PLC automation systems.
