Overview

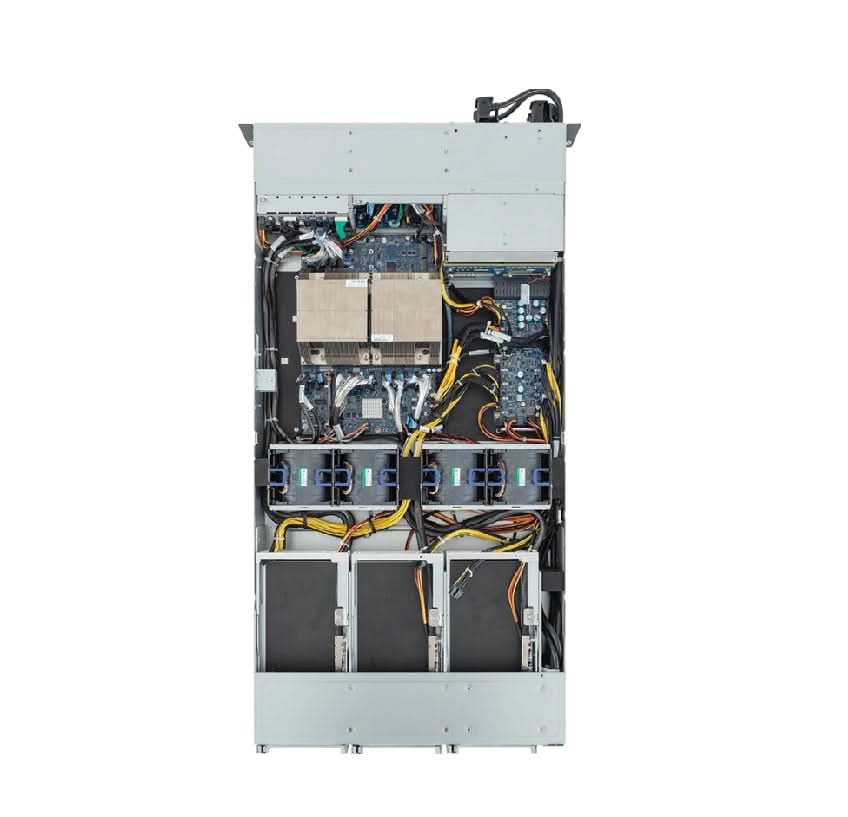

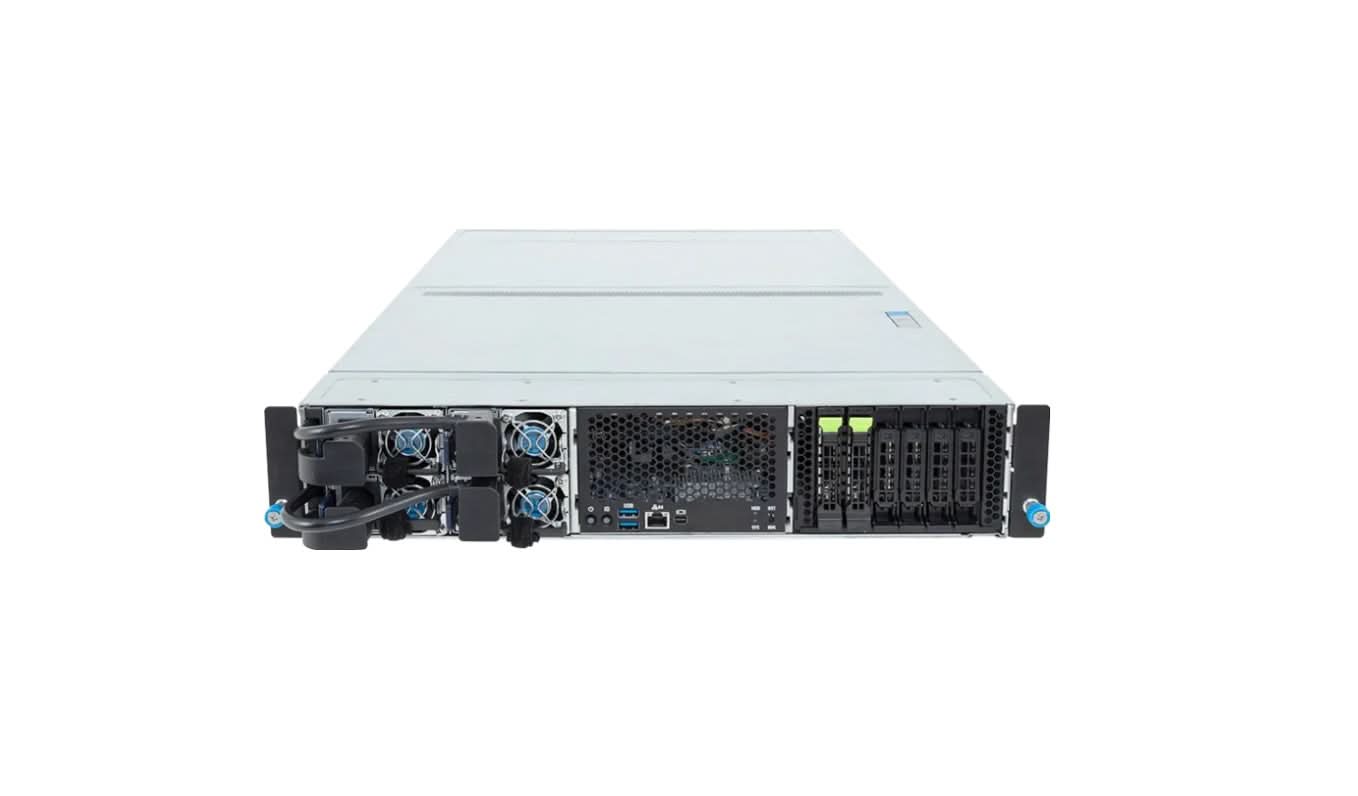

Gigabyte XV23-VC0-AAJ2 4xDual slot Gen5 2U Rackmount/GPU Server

Specifications

Model Number: XV23-VC0-AAJ2

Brand:   Gigabyte

Alt Part Number(s):  XV23-VC0-AAJ2

Product Type: GPU Server

Technical Description

Brand:  Gigabyte

Model: XV23-VC0-AAJ2

CPU /Computer:  2 × NVIDIA Grace CPUs (connected via NVLink‑C2C )

MemorySupported:  960GB of LPDDR5X

Memory bandwidth:  up to 768GB/s

Graphics Controller:  ASPEED AST2600

Motherboard:MVC3-MG0

LANFront:  1 x 10/100/1000 Mbps Management

Storage:

• Front Hot-Swap Storage: 2 x 2.5" Gen5 NVMe drive bays

• Internal M.2 Slots: 2 x M.2 slots (2242/2260/2280/22110), PCIe Gen5 x4 interface

Expansion SlotsPCIe Cable x 6:

 -2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 1 x FHFL x16 (Gen5 x16), from CPU_0
- 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 1 x FHFL x16 (Gen5 x16), from CPU_1

Front I/OI/O board - CFPX040

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED

Max Supported Power Supplies:  2

Power Supplies:  Redundant 2000W 80 PLUS Titanium

System Fans:  4 Dual slot Gen5 GPUs

*
