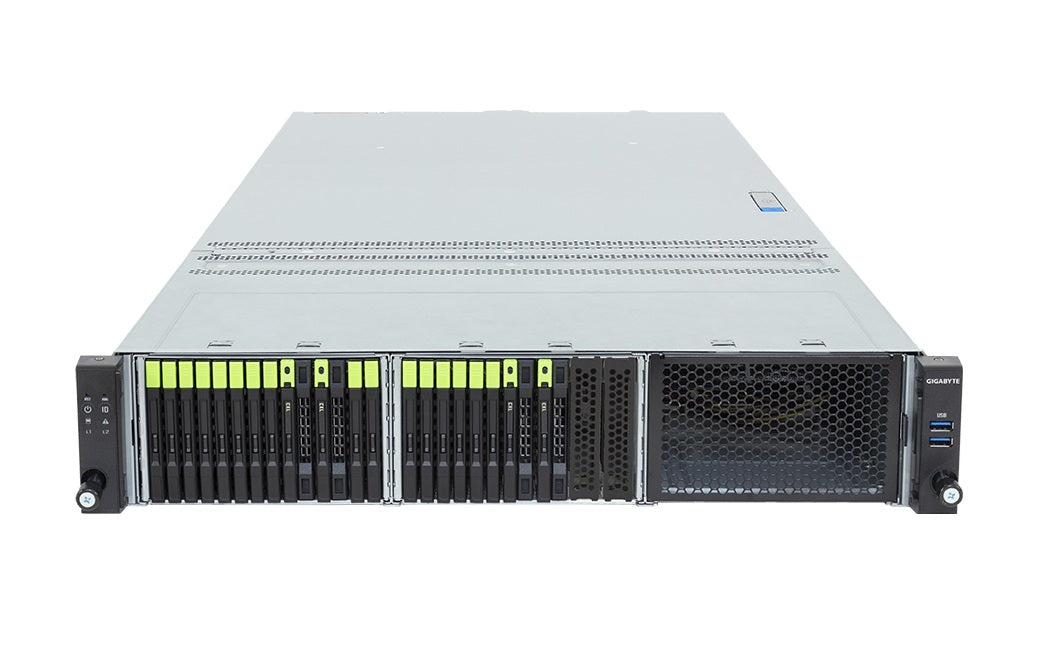

The Gigabyte R283-Z98-ACL1 (also referred to by its barebone model name R283-Z98-AAL1) is a 2U dual-socket rack server optimized for advanced cloud infrastructure, networking, and memory-intensive applications. It is uniquely designed to support CXL memory expansion and high-speed E3.S Gen5 NVMe storag.
Specifications
Model Number: R283-Z98-ACL1
Brand: Gigabyte
Alt Part Number(s): R283-Z98-ACL1
Product Type: Barebone Server
Technical Description
Brand: Gigabyte
Model Number: R283-Z98-ACL1
Processor Type: AMD EPYC 4005/ 4004 Series
Processor Core: 384 Core/768 Thread
Processor Power: TDP up to 400W
Processor Socket: 2 x LGA 6096 Socket SP5
Motherboard: MZ93-FS1
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 2 x 1Gb/s LAN + 1 dedicated Management LAN
Number of Drive Bays: 20 hot‑swap bays (16 NVMe + 4 2.5″), 3 x M.2
Expansion Slots: 1 x FHHL PCIe Gen5 x16 slot; 1 x OCP NIC 3.0 PCIe
Memory Supported: 6TB
Memory Technology: DDR5 RDIMMs
Memory Speed: 6400MT/s, 4800MT/s
Memory Slots: 24 DIMM Slots
Memory Channels: 12-channel memory per processor
Power Supply: Dual redundant 2700W 80 PLUS Titanium
System Cooling: 4 Fans 80x80x38mm
Form Factor: 2U Rackmount
Height: 3.44"
Width: 17.24"
Depth: 32.09"
