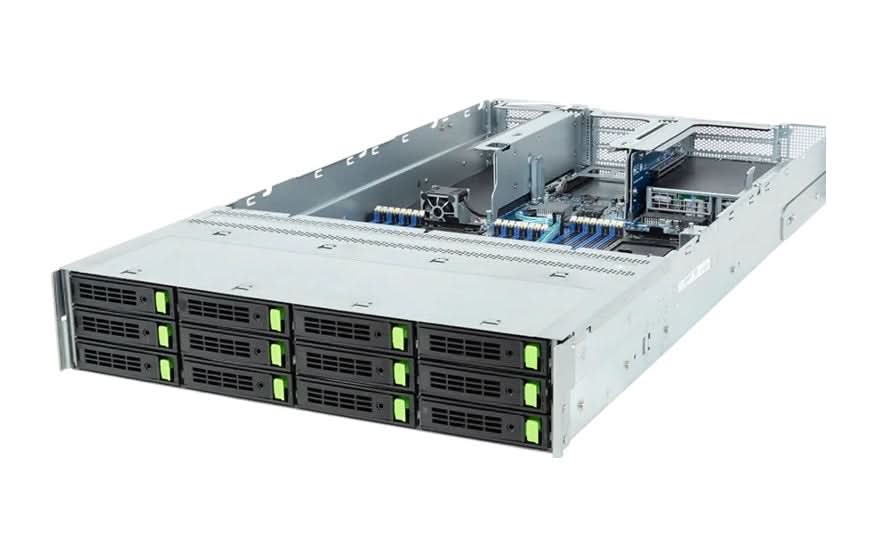

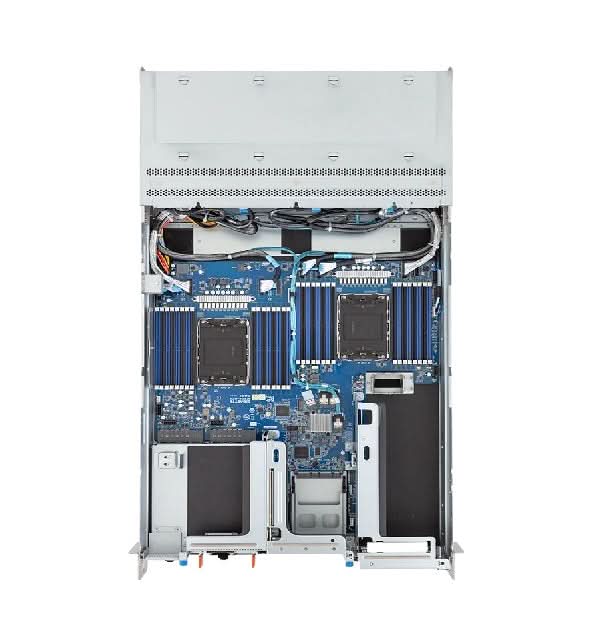

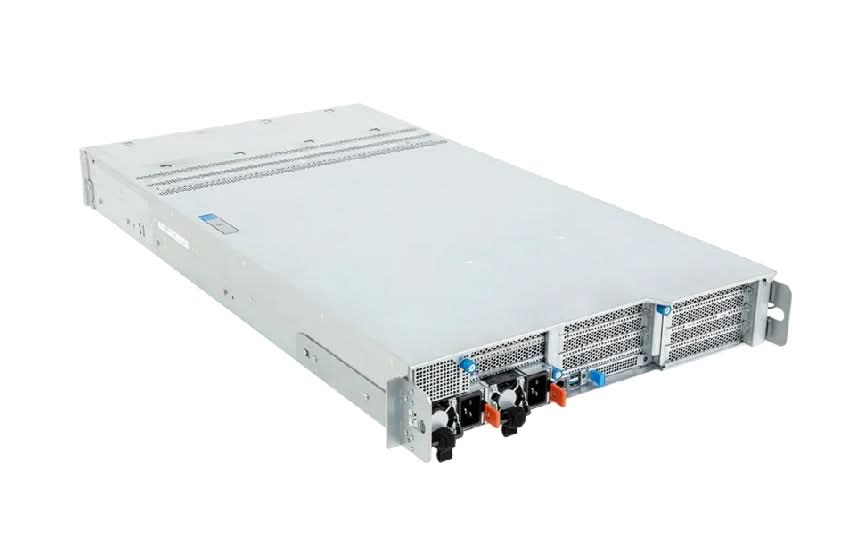

Gigabyte R283-SF0-IAL1 Intel Xeon Scalable DDR5 2U Rackmount/GPU Server
Specifications
Model Number: R283-SF0-IAL1
Brand: Gigabyte
Alt Part Number(s): R283-SF0-IAL1
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: R283-SF0-IAL1
Processor Type: 4th,5th Generation Intel Xeon Scalable
4th Gen Intel Xeon: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
5th Gen Intel Xeon: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
Processor Series: CPU Max
Intel Xeon Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Processor Power: Up to 350W
Processor Socket: 2 x LGA 4677 Socket E
Chipset Type: Intel C741
Motherboard: MSF3-GP0
Number of Channels: 8-Channel
Storage Hot-swap: 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
USB Type: 2 x USB 3.2 Gen1 ports (Type-A)
Controller Type: PCIe Gen5 x4 or SATA 6Gbps or SAS-4 24Gbps
Graphics Controller: Aspeed AST2600
Memory Supported: 8TB
Memory Technology: DDR5
Memory Slots: 32 x DIMM
Expansion Slots: 16
Power Supply: Dual 2700W 80 Plus
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: 2U Rackmount/GPU Server
*
