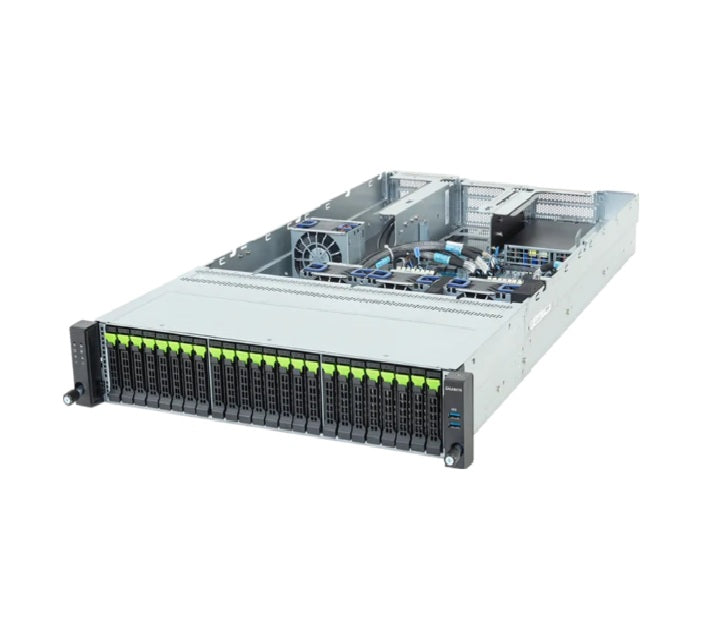

The GIGABYTE R264-SG3-AAJ1 is a high-performance 2U rack server optimized for AI inference, visual computing, networking, and hybrid/private cloud environments. It is powered by the latest Intel® Xeon® 6 processor family and features high-speed PCIe Gen5 connectivity throughout.
Specifications
Model Number: R264-SG3-AAJ1
Brand: Gigabyte
Alt Part Number(s): R264-SG3-AAJ1
Product Type: Barebone Server
Technical Description
Brand: Gigabyte
Model Number: R264-SG3-AAJ1
Processor Type: Single Intel Xeon 6700/6500-Series Processors
Processor Core: 128 Core/256 Thread
Processor Power: TDP up to 350W
Processor Socket: 1 x LGA 4710 Socket E2
Motherboard: MSG4-GU1
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 1 × 10/100/1000 Mbps (1GbE)
Number of Drive Bays: 24 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
Expansion Slots: 1 x FHFL PCIe Gen5 x16 slot, 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
Memory Supported: 4TB
Memory Size: 16 × 256 GB DIMMs
Memory Technology: DDR5 ECC
Memory Speed: RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC), MRDIMM: Up to 8000 MT/s
Memory Slots: 16 × DIMM Slots
Memory Channels: 8-channels
Power Supply: 1+1 2000W 80 PLUS Titanium
System Cooling: 3 x 80x80x38mm
Form Factor: 2U Rackmount
