Overview

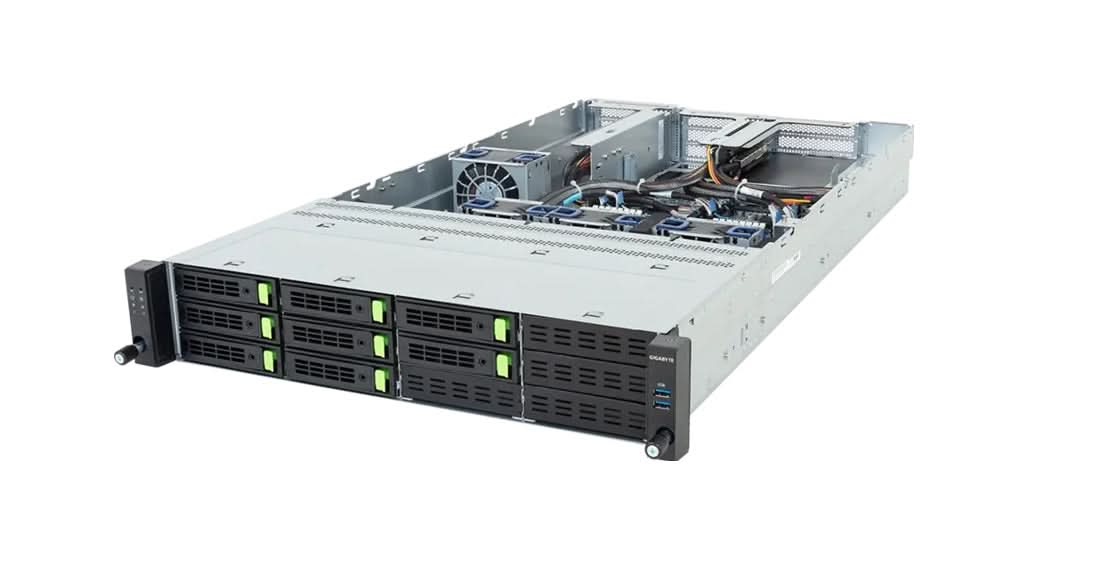

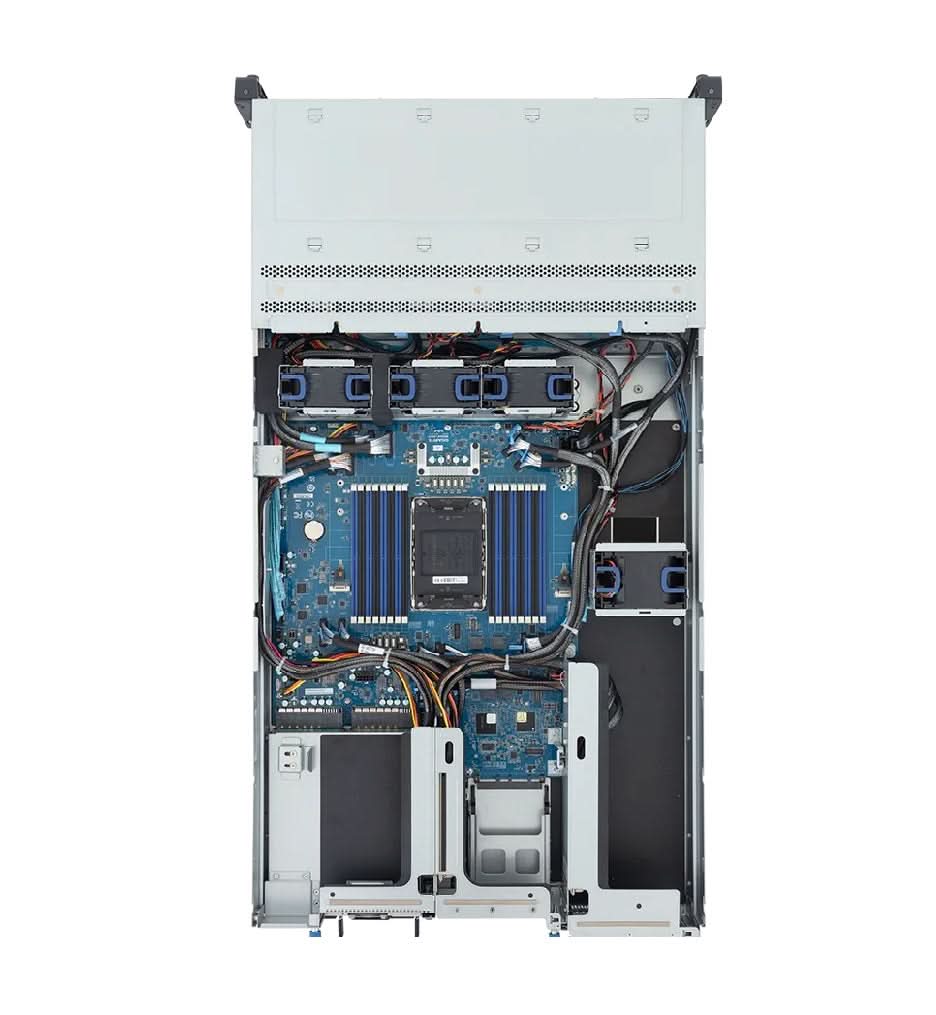

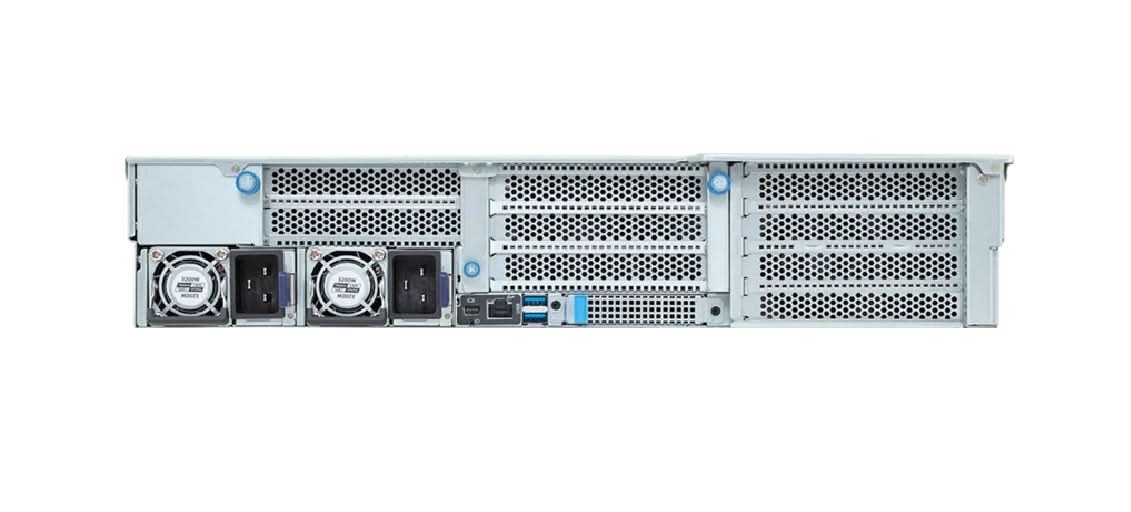

Gigabyte R264-SG2-AAS1 Intel Xeon 6 DDR5 2U Rackmount/GPU Server
Specifications
Model Number: R264-SG2-AAS1
Brand: Gigabyte
Alt Part Number(s): R264-SG2-AAS1
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: R264-SG2-AAS1
Processor Type: Intel Xeon 6 Processors
Intel Xeon 6700-Series Processors with 136 PCIe lanes
Intel Xeon 6500-Series Processors with 136 PCIe lanes
Processor Power: Up to 350W
Processor Socket: 1 x LGA 4710 Socket E2
Chipset Type: System on Chip
Motherboard: MSG4-GU1
USB Type: 2 x USB 3.2 Gen1 ports (Type-A)
Number of Fans: 4
Number of Channels: 8-Channel
Storage Hot-swap: 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
Controller Type: PCIe Gen5 x4 or SATA 6Gbps or SAS-4 24Gbps
Graphics Controller: Aspeed AST2600
Memory Supported: Up to2TB
Memory Technology: DDR5
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s
Memory Slots: 16 x DIMM
Expansion Slots: 16
Power Supply: 1+1 3200W 80Plus
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: 2U Rackmount/GPU Server
*
