Description

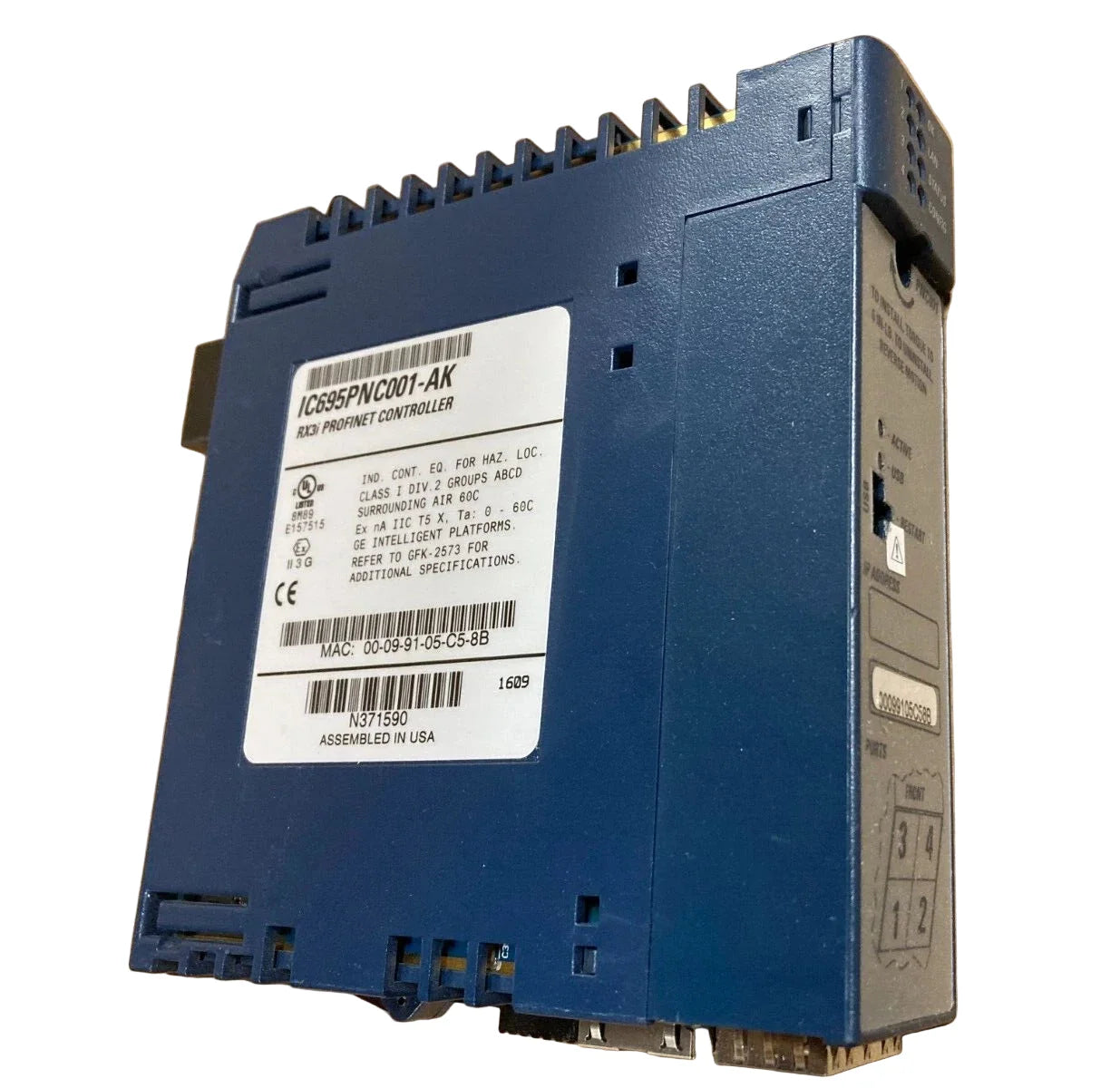

The GE Fanuc IC695PNC001-AK is a PACSystems RX3i PROFINET controller module designed for high-speed network connectivity. It enables RX3i controllers to interface with PROFINET I/O devices and supports firmware V2.20, which includes a HART Pass-Through feature for enhanced device integration.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
GE Fanuc |
| Category |
PLCs/Machine Control |
| Part Number |
IC695PNC001-AK |
| Subcategory |
Communication Module |
| Product Series |
PACSystems RX3i |
| Module Type |
PROFINET Controller |
| Firmware Version |
V2.20 (HART Pass-Through support) |
| Network Interface |
Dual 100 Mbps Ethernet (PROFINET) |
| Supported Protocols |
PROFINET IO Controller, TCP/IP |
| Communication Speed |
100 Mbps full duplex |
| Redundancy |
Network redundancy supported |
| Supported Devices |
Distributed I/O, HART field devices |
| Backplane Type |
Universal RX3i backplane |
| Application |
Industrial automation and process control |
| Operating Temperature |
0–60 °C |
| Storage Temperature |
-40–85 °C |
| Humidity Range |
5–95% RH non-condensing |
| Power Consumption |
7.5 W (typical) |
| Certifications |
CE, UL, RoHS |
| Country of Origin |
USA |
| Weight |
1.1 lbs (approx.) |
Information About IC695PNC001-AK
The IC695PNC001-AK is part of the GE Fanuc RX3i Series, serving as a dedicated PROFINET communication module for industrial automation networks. It provides reliable and deterministic Ethernet-based communication between RX3i PAC controllers and distributed I/O devices. Supporting firmware version V2.20, it introduces HART Pass-Through capability, allowing operators to access HART-compatible field devices directly via the PROFINET network. With redundant network support, high bandwidth, and robust diagnostic tools, the module is well-suited for complex control applications across manufacturing and process industries.
Key Features:
- PROFINET Connectivity: Provides seamless communication between RX3i controllers and PROFINET I/O devices.
- Firmware V2.20: Adds HART Pass-Through for field device integration and monitoring.
- High-Speed Networking: Operates on industrial Ethernet with deterministic performance.
- Redundant Network Support: Ensures system reliability and minimized downtime.
- Extensive Diagnostics: Built-in tools for fault detection, network health, and device monitoring.
- PACSystems RX3i Integration: Designed specifically for GE Fanuc RX3i controllers.
- Flexible Architecture: Supports distributed I/O for scalable automation systems.
- Industrial Grade: Rugged build for continuous operation in demanding environments.
The IC695PNC001-AK delivers the reliability and performance required for modern industrial networking in automation systems.
