Description

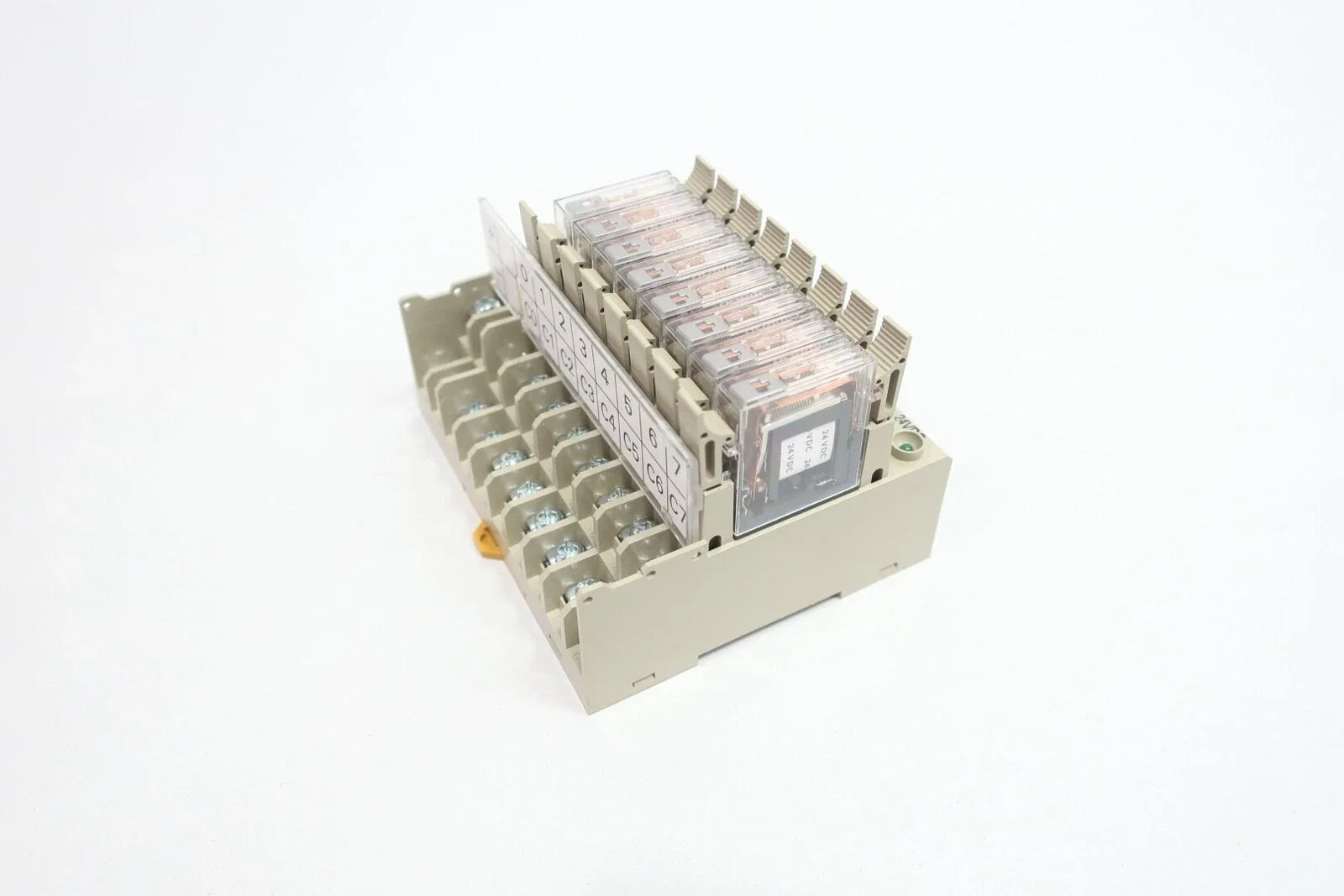

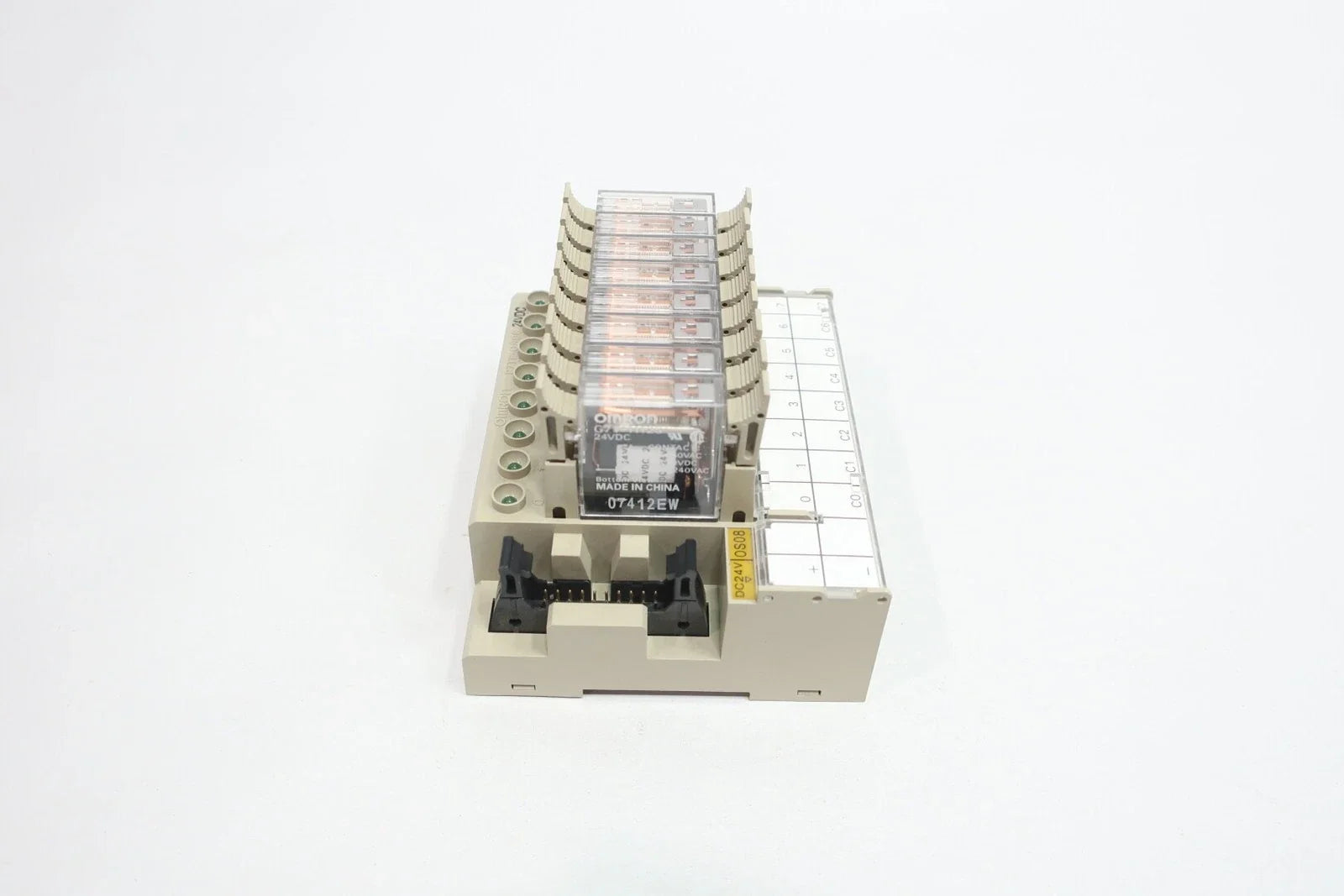

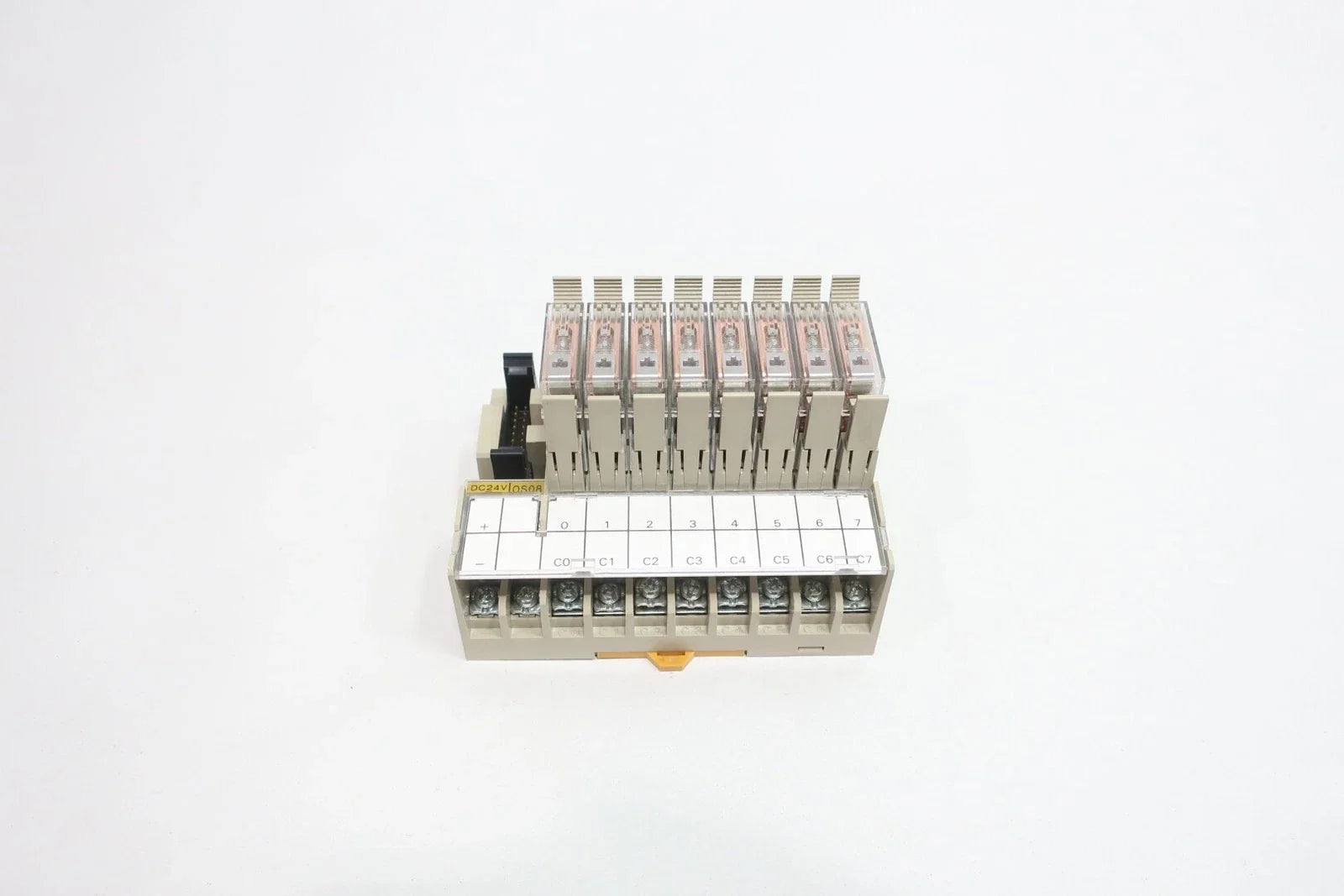

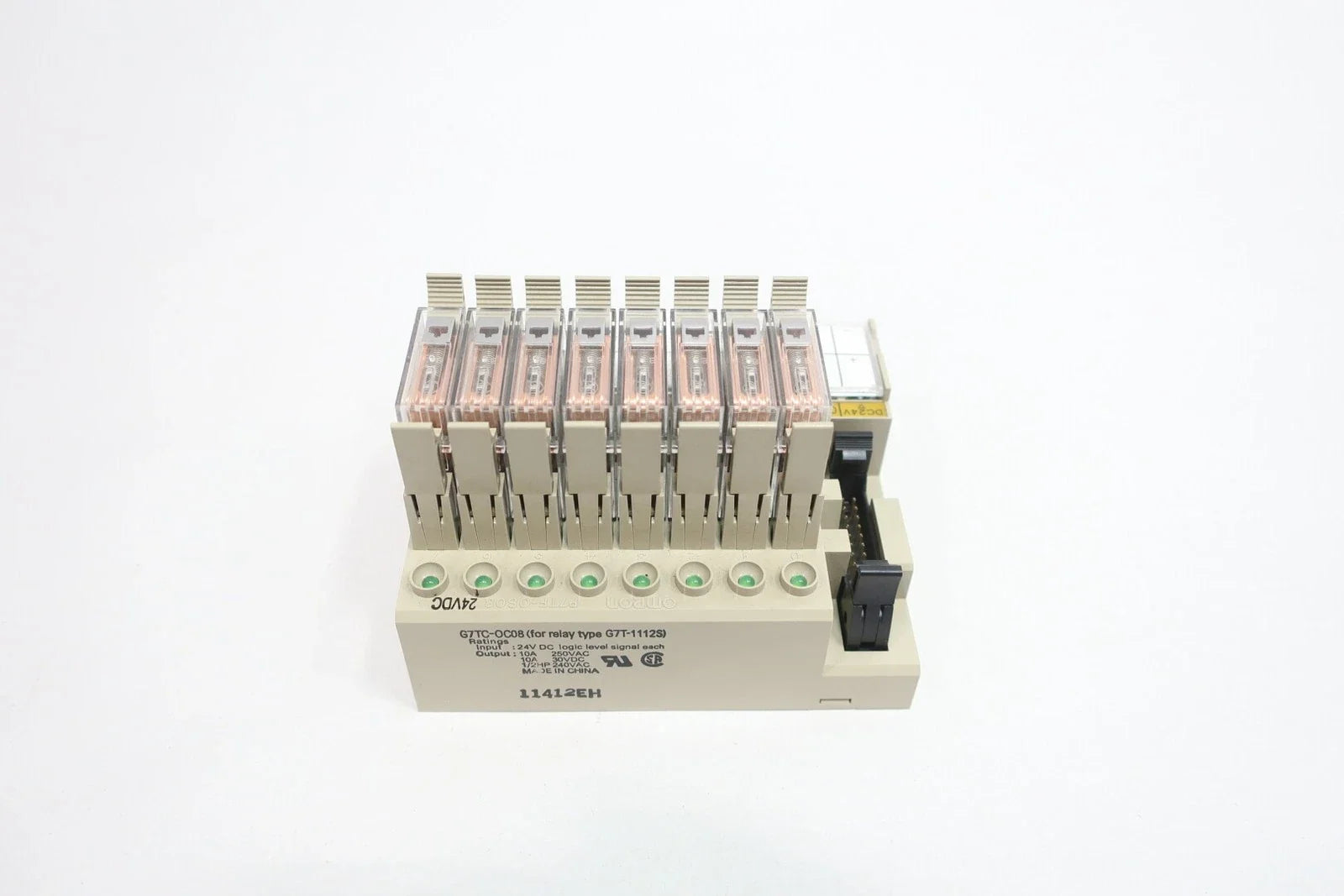

The Omron G7TC-OC08 is an 8-point output relay terminal block designed for PLC interface and distributed I/O control systems. It enables compact wiring by allowing a single cable connection between the PLC and relay outputs. This module is used in industrial control panels to simplify installation and improve output signal management.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs/Machine Control |
| Part Number |
G7TC-OC08 |
| Subcategory |
I/O Modules |
| Series |
G7TC |
| Module Type |
Relay Output Terminal Block |
| Number of Outputs |
8 Points |
| Contact Form |
SPST-NO x 8 |
| Rated Load |
5 A at 24 VDC; 2 A at 220 VAC (resistive) |
| Maximum Switching Voltage |
250 VAC / 125 VDC |
| Insulation Resistance |
100 MΩ at 500 VDC |
| Dielectric Strength |
2,000 VAC, 50/60 Hz (1 min) |
| Mounting Type |
DIN Rail |
| Operating Temperature |
0°C to 55°C |
| Weight |
0.599657 oz |
Information About G7TC-OC08
The G7TC-OC08 is part of Omron’s G7TC series of I/O relay terminal blocks developed for efficient panel wiring and modular output control. It supports eight SPST-NO relay outputs and is compatible with G7T I/O relays and related socket systems. The unit includes built-in LED indicators for output status monitoring and integrated surge suppression for coil protection. Designed for DIN rail mounting, it reduces wiring complexity in automation cabinets.
Key Features:
-
8-Point Relay Output: Provides eight independent SPST-NO contact outputs.
-
PLC Interface Terminal Block: Supports single-cable PLC connection for simplified wiring.
-
Built-In LED Indicators: Enables visual monitoring of each output channel.
-
Surge Suppression: Integrated coil surge absorbing elements for protection.
-
DIN Rail Mounting: Designed for quick and secure installation in control panels.
-
Wide Switching Capability: Rated up to 250 VAC or 125 VDC switching voltage.
-
Compact Design: Reduces panel space and wiring time.
The G7TC-OC08 delivers the reliability and precision required for structured PLC output interfacing in industrial automation systems.
