Description

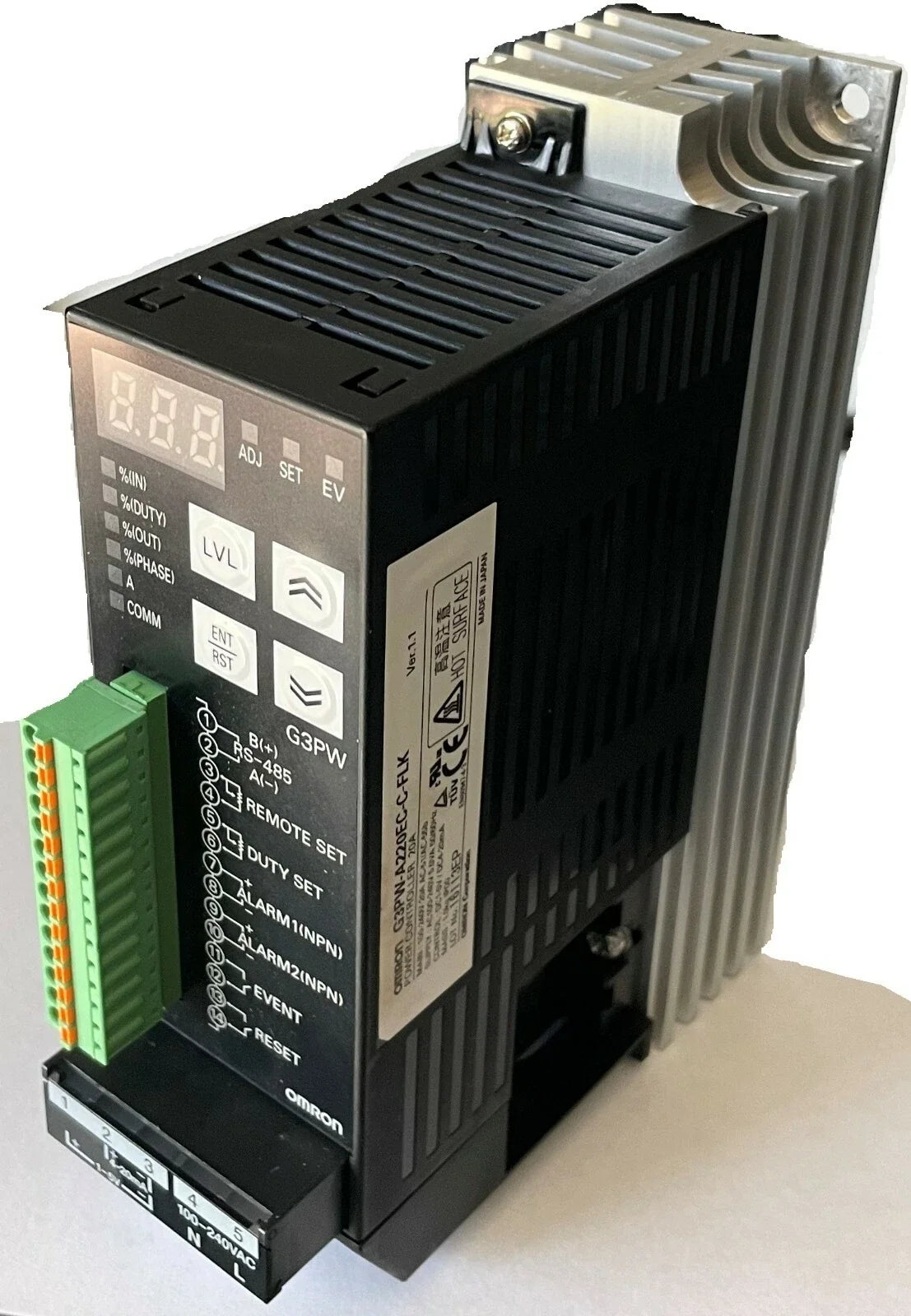

The Omron G3PW-A220EC-C-FLK is a single-phase power controller designed for precise heater and load control in industrial temperature regulation systems. Rated for 20 A at 100–240 VAC and up to 5 kW, it provides accurate power adjustment using a 1–5 VDC control input. This unit integrates heater burnout detection and RS-485 communication for reliable monitoring and control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Controls & Indicators |
| Part Number |
G3PW-A220EC-C-FLK |
| Subcategory |
Temperature/Process Control |
| Series |
G3PW Series |
| Product Type |
Power Controller |
| Phase |
Single Phase |
| Rated Current |
20 A |
| Input Voltage |
100–240 VAC |
| Control Input |
1–5 VDC |
| Rated Power |
5 kW |
| Communication Port |
RS-485 |
| Heater Burnout Detection |
Yes |
| Mounting Type |
Screw-In Mount |
| Terminal Type |
Push-In Terminal |
| Operating Temperature |
–15 to +55 °C |
| Indicator |
LED Status Indicator |
| Weight |
1.87 lbs |
Information About G3PW-A220EC-C-FLK
The G3PW-A220EC-C-FLK is part of Omron’s G3PW series of digital power controllers developed for stable and efficient heater management. It supports single-phase loads and is optimized for resistive heating applications requiring consistent temperature control. The controller features built-in heater burnout detection to minimize downtime and improve process reliability. With RS-485 communication capability and a compact screw-in mounting design, it integrates easily into industrial control panels operating within a temperature range of –15 to +55°C.
Key Features:
- Single-Phase Power Control: Designed for precise regulation of single-phase heater loads.
- 20 Amp Capacity: Supports loads up to 5 kW at 100–240 VAC input voltage.
- 1–5 VDC Control Input: Enables accurate analog power adjustment from external controllers.
- RS-485 Communication Port: Allows remote monitoring and integration into supervisory systems.
- Heater Burnout Detection: Provides early fault identification to reduce unexpected downtime.
- LED Status Indicator: Offers clear visual feedback for operating conditions and alarms.
- Push-In Terminals: Simplifies wiring and reduces installation time.
- Wide Operating Temperature Range: Reliable performance from –15 to +55°C.
The G3PW-A220EC-C-FLK delivers the reliability and precision required for industrial heater control and temperature regulation systems.
