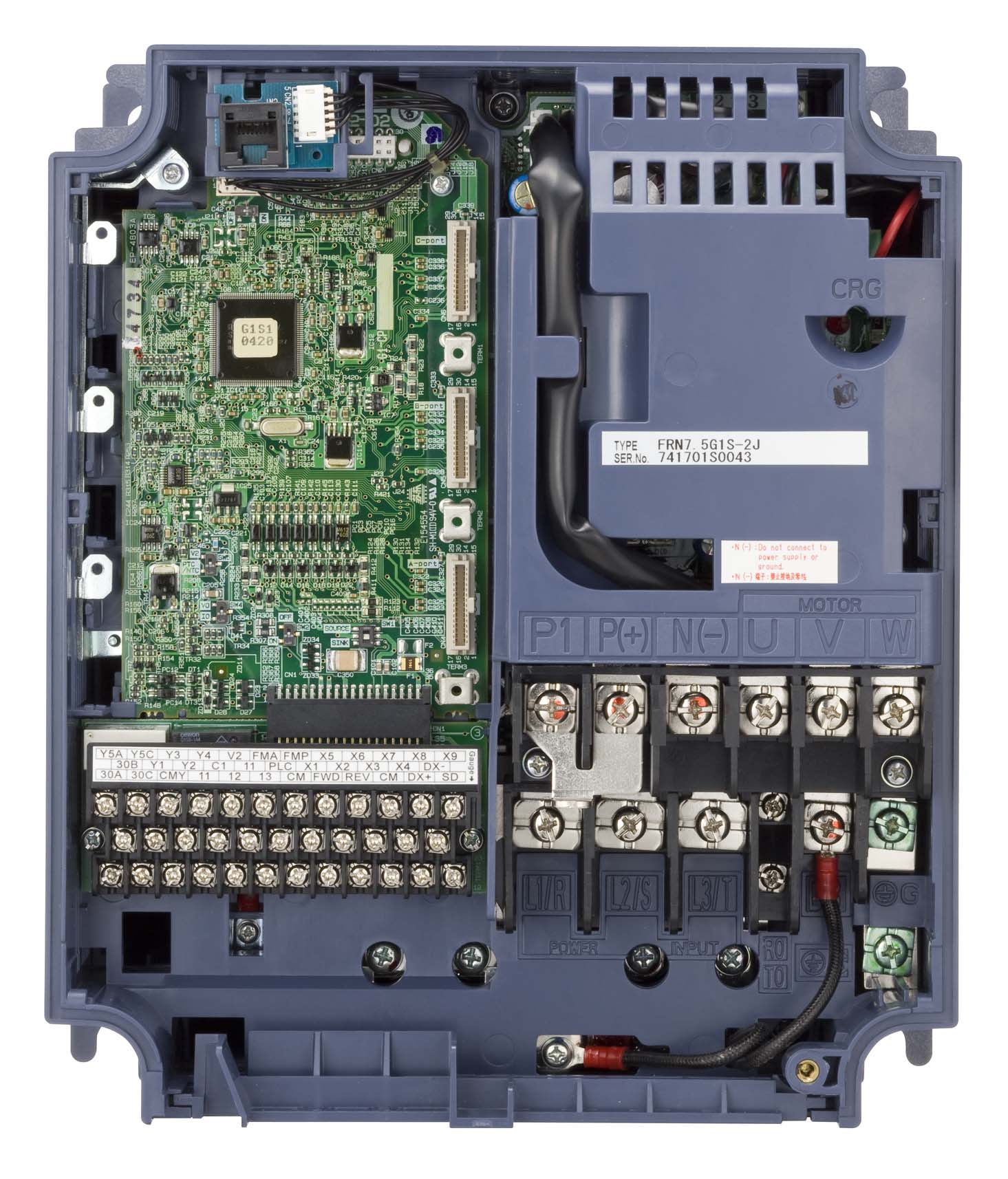

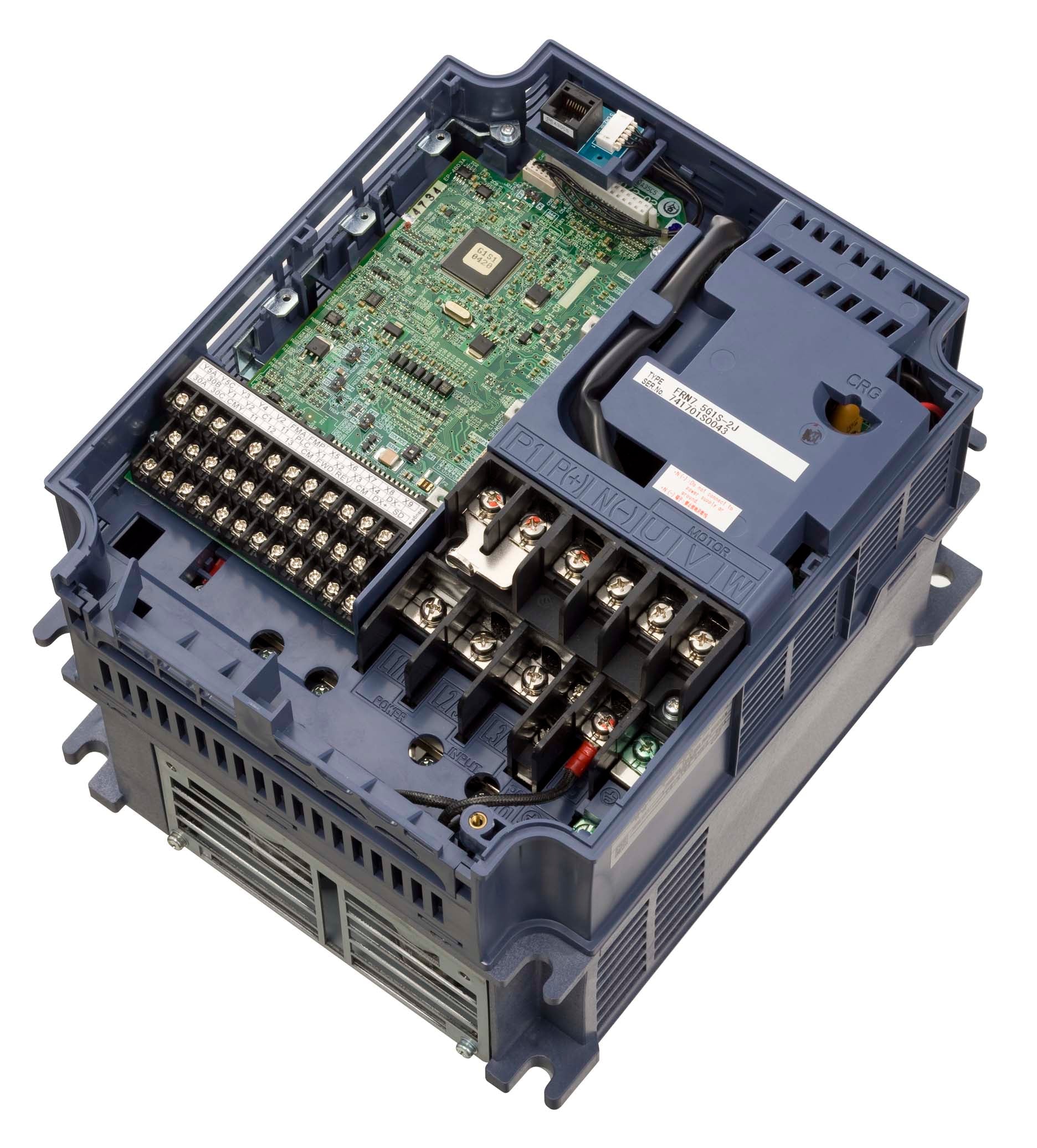

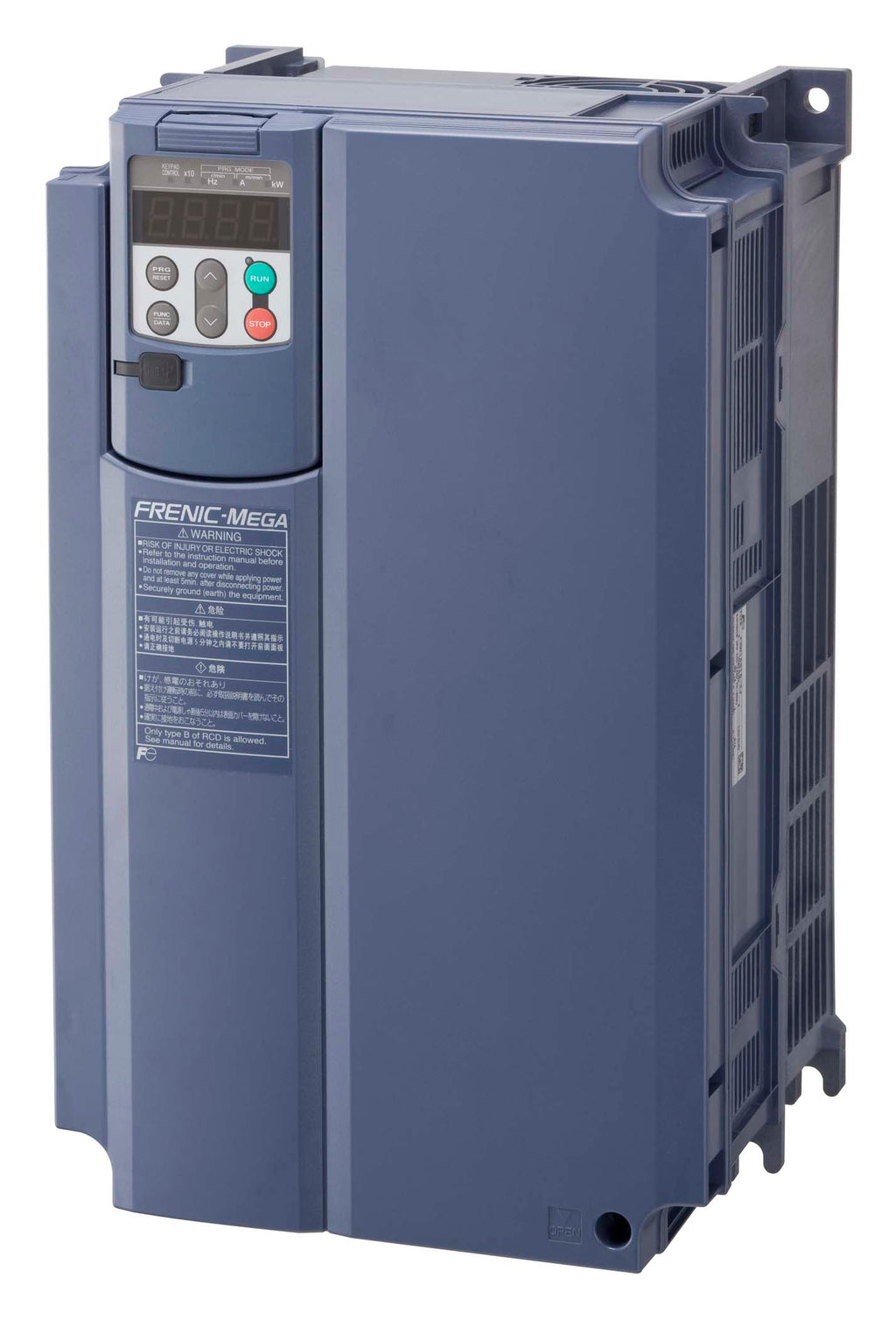

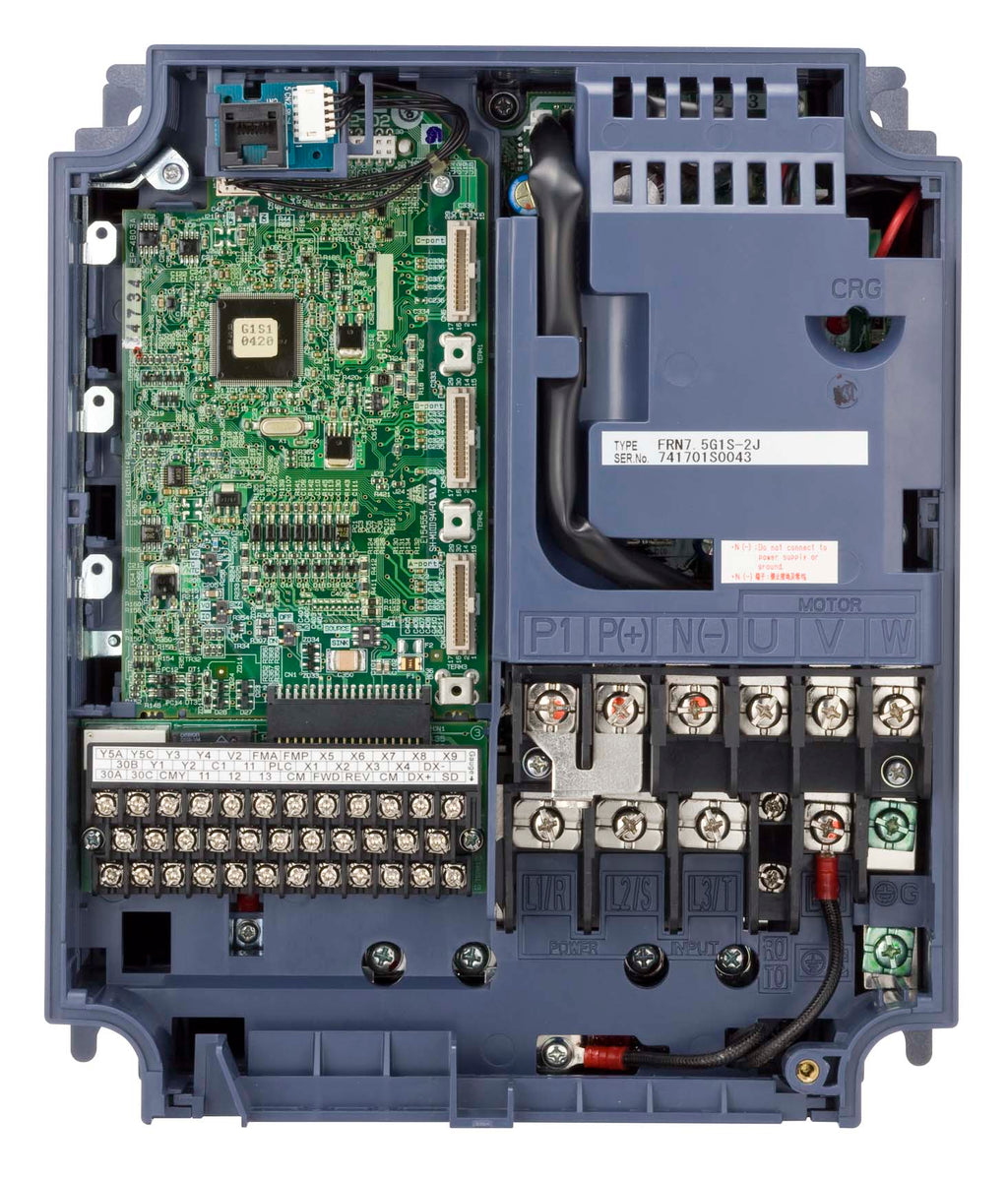

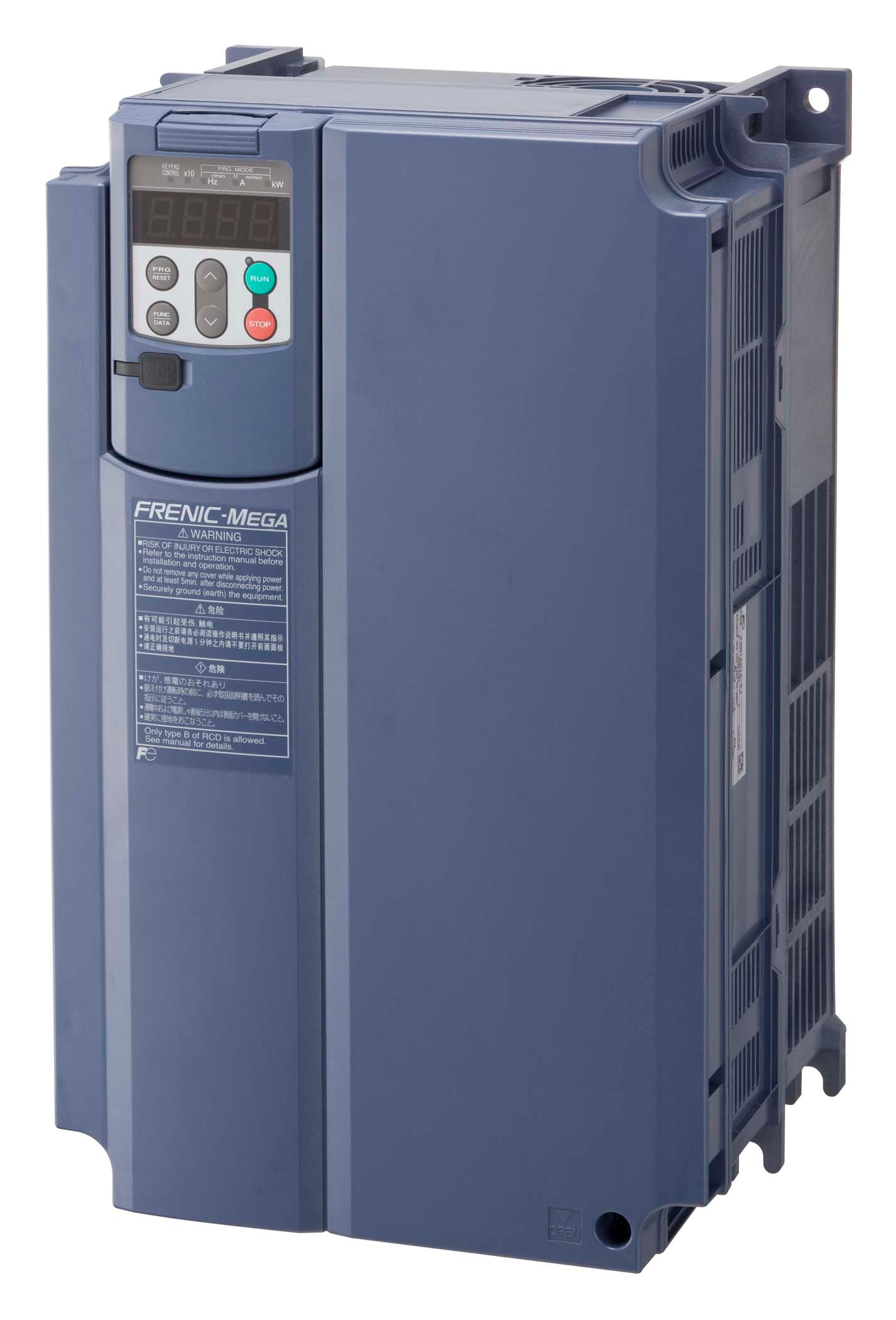

When standard general-purpose drives fall short of the application's torque and dynamic performance demands, the Fuji Electric FRN007G1S-2U is a FRENIC-MEGA (G1) series high-performance variable frequency drive (VFD) for 230V three-phase applications, rated at 7.5 HP / 27A (Light Duty), 7.5 HP / 27A (Heavy Duty).
The FRENIC-MEGA (G1) is Fuji Electric's flagship high-performance drive platform, delivering advanced vector control across a wide speed range. In sensorless vector mode, it achieves up to 150% starting torque at 0.5 Hz without an encoder. Closed-loop vector control with an optional encoder card achieves up to 200% starting torque and ±0.01% speed regulation. Torque control mode is also supported for tension-controlled winding applications.
The built-in PLC function enables simple sequencing and logic directly in the drive, reducing panel component count. Additional features: instantaneous power failure ride-through, multi-duty ratings (Light/Medium/Heavy), DC bus sharing, droop control, S-curve acceleration, and comprehensive diagnostics. RS-485 Modbus RTU standard; optional PROFIBUS-DP, DeviceNet, EtherNet/IP, and CC-Link cards.
High-performance applications for the FRN007G1S-2U include machine tool spindle drives, high-inertia process machinery, and winders and unwinders requiring precise tension control. Its multi-duty rating structure provides maximum application flexibility. UL/cUL listed and CE marked.
