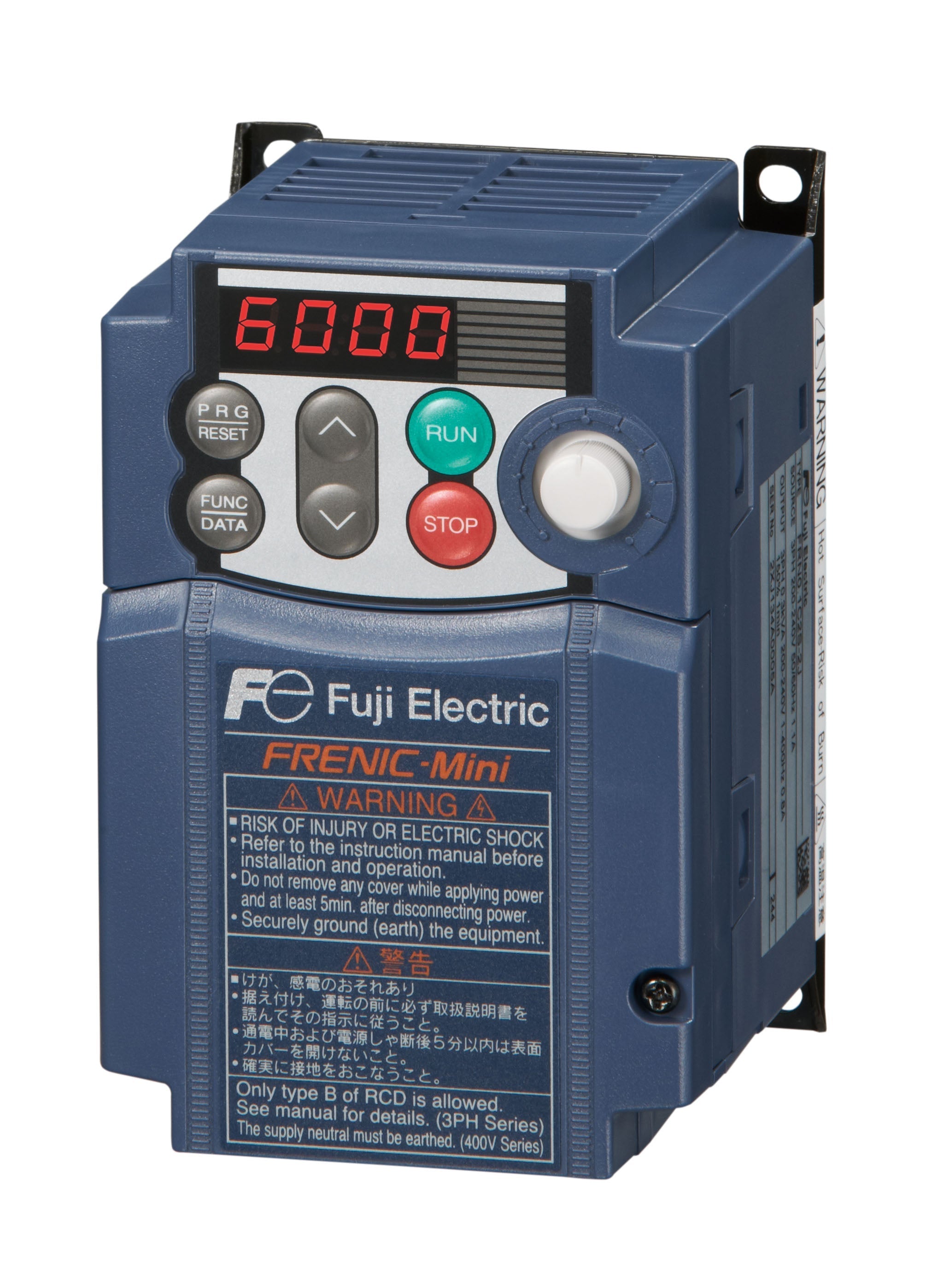

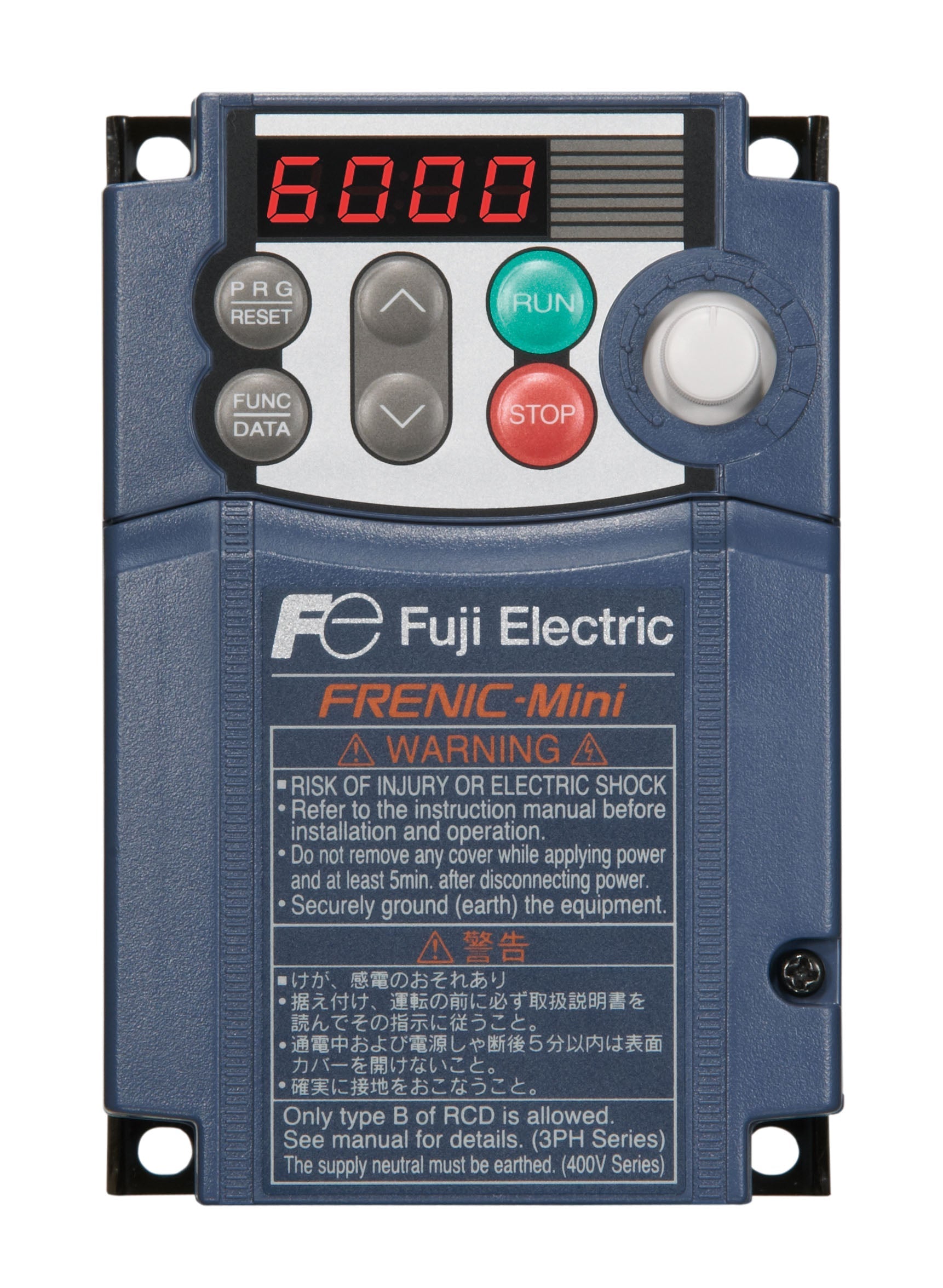

A cost-effective solution for variable-speed motor control, the Fuji Electric FRN0025C2S-2U is a FRENIC-Mini (C2) series compact variable frequency drive (VFD) rated at 7.5 HP with a 25A rated output current and designed for three-phase 230V supply.
The FRENIC-Mini (C2) is one of Fuji Electric's most popular compact drives, combining an ultra-slim enclosure with a full suite of motor control capabilities. It supports both V/f control and sensorless vector control, giving engineers the flexibility to optimize either simplicity or performance depending on the application. A built-in PID controller enables direct closed-loop process control — for example, maintaining constant pressure in pump systems or constant airflow in fan applications — without requiring an external controller.
Key standard features include: multi-step preset speed operation (up to 8 speeds), auto-tuning for simplified commissioning, RS-485 Modbus RTU communication for integration with PLCs and SCADA systems, built-in EMC filter (on select models), and comprehensive protective functions including overvoltage, undervoltage, overcurrent, overload, and motor thermal protection.
Typical applications include light-duty industrial machinery, centrifugal pumps and process fans, and conveyor and material handling systems. The FRN0025C2S-2U is well-suited for retrofitting aging motor starters with modern variable-speed control, delivering immediate energy savings on variable-torque loads. UL/cUL listed and CE marked.
