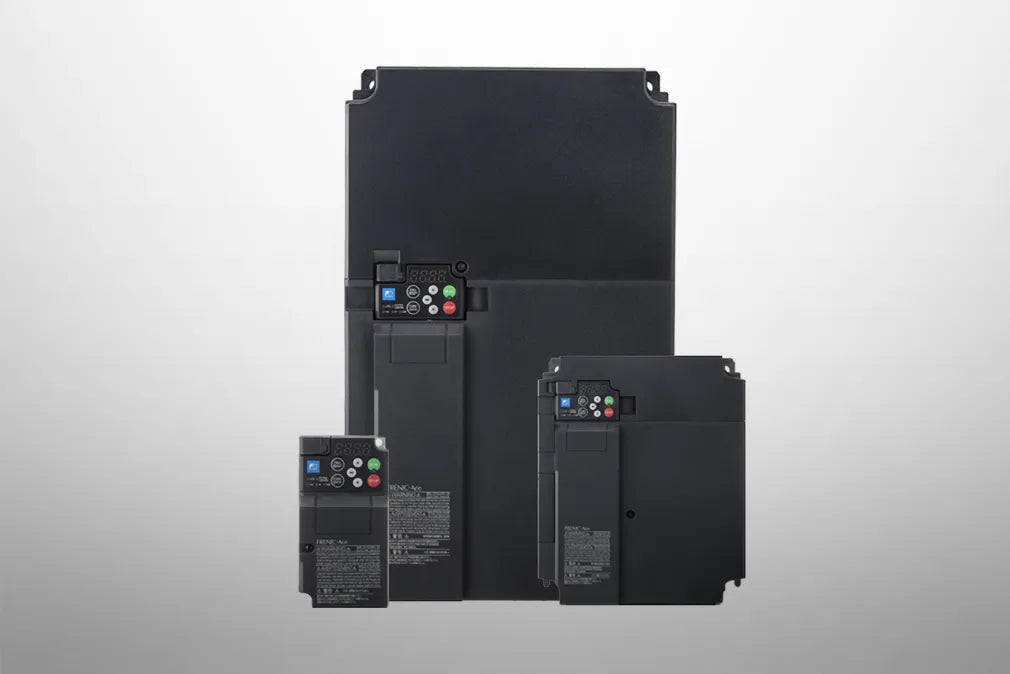

The Fuji Electric FRN0022E3S-4G is a FRENIC-Ace (E3) series general-purpose variable frequency drive (VFD) rated 7.5 HP (5.5 kW), designed for 460VAC 3-phase input applications.
The FRENIC-Ace E3 is the next-generation evolution of the popular FRENIC-Ace (E2) platform, delivering enhanced motor control performance, improved energy efficiency, and expanded connectivity options in a compact package. Like its predecessor, the E3 is optimized for HVAC, pump, fan, and general industrial applications, with built-in PID control, auto-tuning, V/f and sensorless vector control modes, and RS-485 Modbus RTU communication as standard.
The E3 generation adds improved harmonic mitigation, higher ambient temperature operation, and expanded fieldbus options including EtherNet/IP and PROFINET via optional communication cards. Standard protective functions include overcurrent, overvoltage, undervoltage, motor overload, short circuit, and ground fault protection. Compatible with Fuji FRENIC accessories including AC line reactors, DV/DT output filters, and remote keypads. UL/cUL listed and CE marked.
