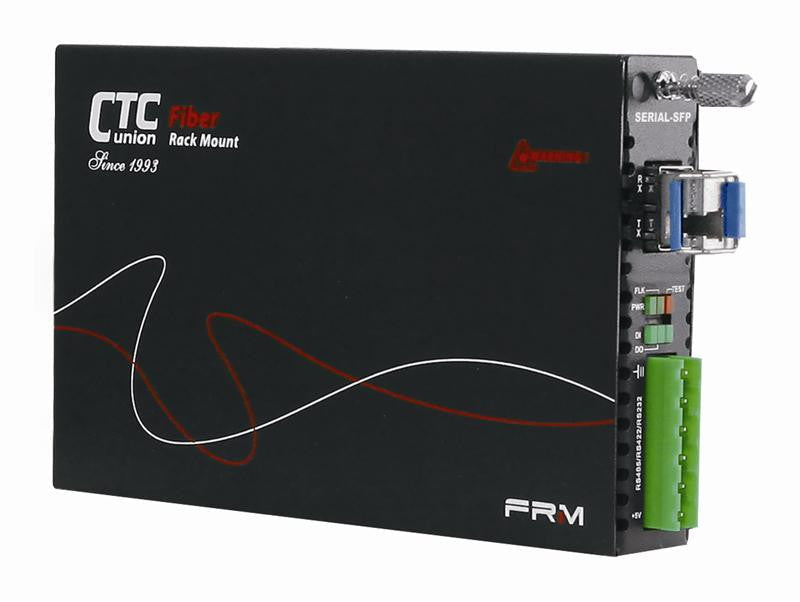

AC adapter is included in the package. Image is showing converter with an SFP module installed.

The FRM220-SERIAL-SFP does NOT come with an SFP Transceiver included.

Product description

The FRM220-SERIAL-SFP provides a fiber converter solution to extend RS-232 or RS-485/422 transmission distance over fiber.

The converter is equipped with multiple interface circuits, for connection to RS-232, RS-423, or RS-485/422 (2 or 4 wire).

For the fiber side unit provides an SFP slot that can accommodate any type of transceiver. This gives flexibility to convert serial interfaces to any type of light, including CWDM/DWDM or long haul BiDi units.

The FRM220-SERIAL secures data transmission over EMI resistant fiber at speeds up to 256kbps for RS-232 or up to 1024kbps for RS-422/485.

When the FRM220-SERIAL is linked to the FRM220 series chassis equipped with FRM-NMC management card, it allows network administrators/engineers to get greater functionality through advanced SNMP/Web/In-band management features.

The network administrator can manage any converter module from anywhere on the network, detect any link loss and maintain each loop.

The uniqueness of FRM220 series is given by the ability to convert from standalone media converters to cards for FRM220 chassis, in matter of minutes. In an always changing and growing networking environment, such a versatile feature allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters.

This simple, but so reliable idea, made the FRM220 series media converters the perfect choice of media converters by data carriers and service providers.

There is only one product (media converter) that does support all three mentioned serial data interfaces. This provides customers with an extra level of flexibility when investing in their network infrastructure.

Technical specifications

Additional information on FRM220-SERIAL-SFP converter:

• PDF Datasheet
• PDF Installation Manual
