Description

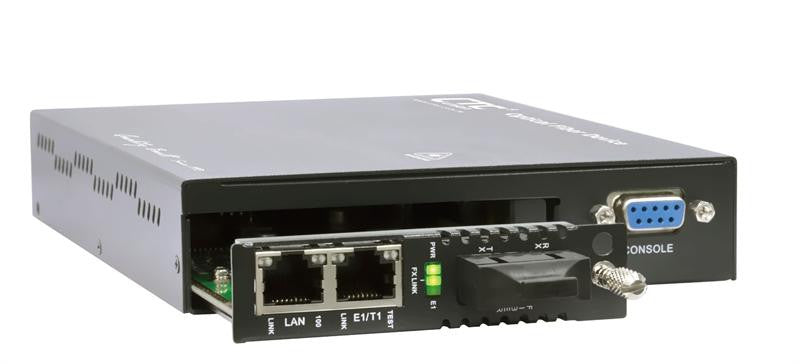

FRM220-FOM01-AC INCLUDES a standalone casing with console port and embedded AC power supply. Picture shows card and casing together.
SFP transceiver is NOT included in the unit price.
Product description
The FRM220-FOM01-AC fiber multiplexer is a small and affordable unit. It bundles together one E1 or T1 interface and a full 100Mbps channel of Ethernet data. The FRM220-FOM01-AC is supporting AC 90~240V power input and fiber uplink has an SFP slot for 155Mbps optical modules. The SFP port brings a great level of flexibility by allowing user to choose the appropriate SFP transceiver for his needs. FRM220-FOM01-AC multiplexer can also be installed into FRM220 series chassis, like the FRM220-CH20, the 20 slot 2U chassis or the FRM220-CH08, the slimmer 1U rack 19" chassis. Management is available through local console or via web using the FRM220-NMCmanagement card.
The RJ45 Ethernet 10/100Mbps port supports Jumbo Packets, auto MDI/MDI-X auto speed Negotiation. It also has Dying Gasp feature warning management system of failure because of loss of power (this feature is extremely useful on carrier grade deployments, giving an immediate hint on reason of circuit failure).
FRM220-FOM01-AC is a perfect choice for a variety of applications like wireless back-haul for remote areas, E1/T1 and Ethernet transport over same fiber, inter building voice and data network connections and so on. Unit can be used either under European E1 or US T1 standards.
The FRM220-FOM01-AC fiber multiplexer works with OC3/STM1/155Mbps optical SFP transceivers and supports DD enabled SFP transceivers.
Additional information on FRM220-FOM01-AC:
