Description
Product description

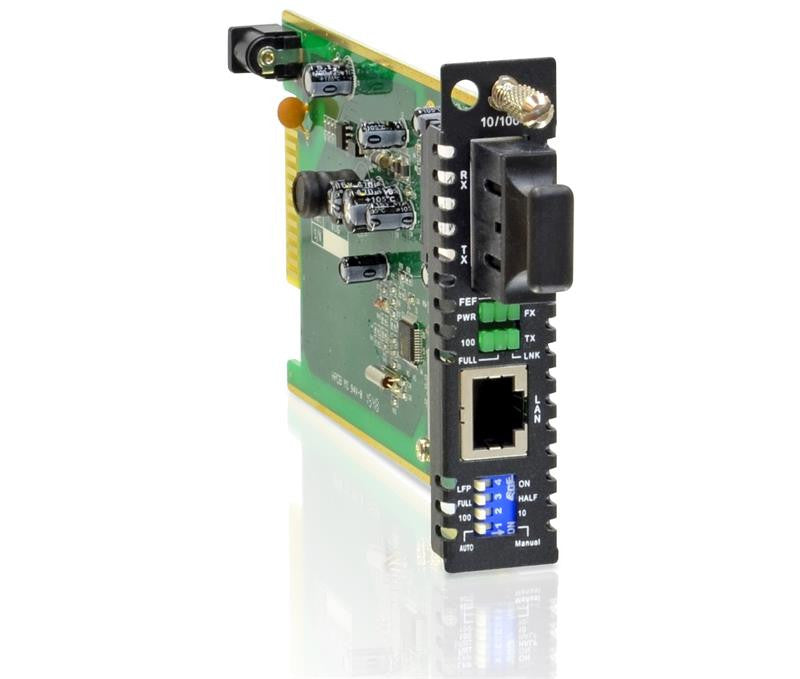

The FRM220-10-100-SC002 Fast Ethernet fiber media converter card is a 10/100Base-TX to 100Base-FX multi-mode 1310nm converter reaching up to 2km distance. Unit is un-managed but has a number of DIP switch settings to control features like Link-Loss-Forwarding, Loop-Back-Test and Full/Half and Speed port settings. FRM220-10-100-SC002 can be installed into any FRM220 series chassis.
The FRM220 series converters are extremely versatile, being available in several versions of power supply: external AC adapter,embedded internal AC power, embedded internal DC neg. 48V power or dual combo embedded AC and DC power supply. Same model can also be installed in the FRM220chassis, in matter of minutes. In an always changing and growing networking environment, such a versatile model allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters. The FRM220-10-100-SC002 Fast Ethernet media converter is a very powerful choice for media converter solution for data carriers and service providers.
Technical specifications
The FRM220-10-100-SC002 Fast Ethernet fiber media converter card is a 10/100Base-TX to 100Base-FX multi-mode 1310nm converter reaching up to 2km distance. Unit is un-managed but has a number of DIP switch settings to control features like Link-Loss-Forwarding, Loop-Back-Test and Full/Half and Speed port settings. FRM220-10-100-SC002 can be installed into any FRM220 series chassis.
The FRM220 series converters are extremely versatile, being available in several versions of power supply: external AC adapter,embedded internal AC power, embedded internal DC neg. 48V power or dual combo embedded AC and DC power supply. Same model can also be installed in the FRM220chassis, in matter of minutes. In an always changing and growing networking environment, such a versatile model allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters. The FRM220-10-100-SC002 Fast Ethernet media converter is a very powerful choice for media converter solution for data carriers and service providers.
Technical specifications
| Interfaces: | One RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX and one 100Base-FX built-in fiber port for 802.3u standard |
| Connectors: | One RJ-45 copper 10/100 Mbps and one dual SC optical port 100Base-FX |
| UTP port: | MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 2046 bytes - switch/ 9K bytes - converter |
| Optical slot: | 1 x 9 dual SC transceiver, 1310nm, up to 2Km on 62.5/125um or 50/125um multi-mode fiber |
| Front LEDs: | Power, FEF, FX-Link, TX-SPD, Tx-Duplex, Tx-Link |
| Power requirement: | 12VDC@1A |
| Temperature: | 0-60°C (Operating); -10-70°C (Storage) |
| Humidity: | 10 90% non condensing |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 88mm x 155mm x 23mm |
| Weight: | 150g |
| Compliance: | CE, FCC Class A, LVD, RoHS |
| MTBF: | 65,000 hours |
