[shortdesc]
- Layer 2/3 FortiGate switch controller compatible PoE+ switch with 48 x GE RJ45 ports, 4 x 10 GE SFP+, with automatic Max 772W POE output limit
[/shortdesc]
[properties]
| Properties |
FS-448E-FPOE |
| Description |
Layer 2/3 FortiGate switch controller compatible switch with 48 GE RJ45, 4x 10 GE SFP + ports, 48 port PoE+ with maximum 772 W limit. |
| Product Family |
FortiSwitch |
| Product Type |
Switch |
| Total Network Interfaces |
48x GE RJ45 and 4x 10GE SFP+ ports Note: SFP+ ports are compatible with 1 GE SFP |
Dedicated Management
10/100/1000 Ports |
1 |
| RJ-45 Serial Console Port |
1 |
| Form Factor |
1 RU Rack Mount |
| Power over Ethernet (PoE) Ports |
48 (802.3af/at) |
PoE Power Budget
(single/dual PSU) |
772 W |
| Mean Time Between Failures |
> 10 years |
[/properties]
[specifications]
| Switching Capacity (Duplex) |
176 Gbps |
| Packets Per Second (Duplex) |
262 Mpps |
| MAC Address Storage |
32 K |
| Network Latency |
<1µs |
| VLANs Supported |
4 K |
| Link Aggregation Group Size |
8 |
| Total Link Aggregation Groups |
Up to number of ports |
| Packet Buffers |
4 MB |
| DRAM |
1GB DDR4 |
| FLASH |
256 MB |
| ACL |
1.5k |
| Spanning Tree Instances |
16 |
| Route Entries (IPv4/IPv6) |
16k/8k |
| Multicast Route Entries |
- |
| Host Entries |
16k |
| Dimensions in. |
1.73 x 16.1 x 17.3 |
| Power Required |
100240V AC, 50-60 Hz |
| Power Supply |
AC built in |
| Redundant Power |
Redundant AC |
| Power Consumption (Average / Maximum) |
921.4 W / 923.6 W |
| Heat Dissipation |
163.1 BTU/h |
| Operating Temperature |
32°122°F (0°50°C) |
| Certification |
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
[/specifications]

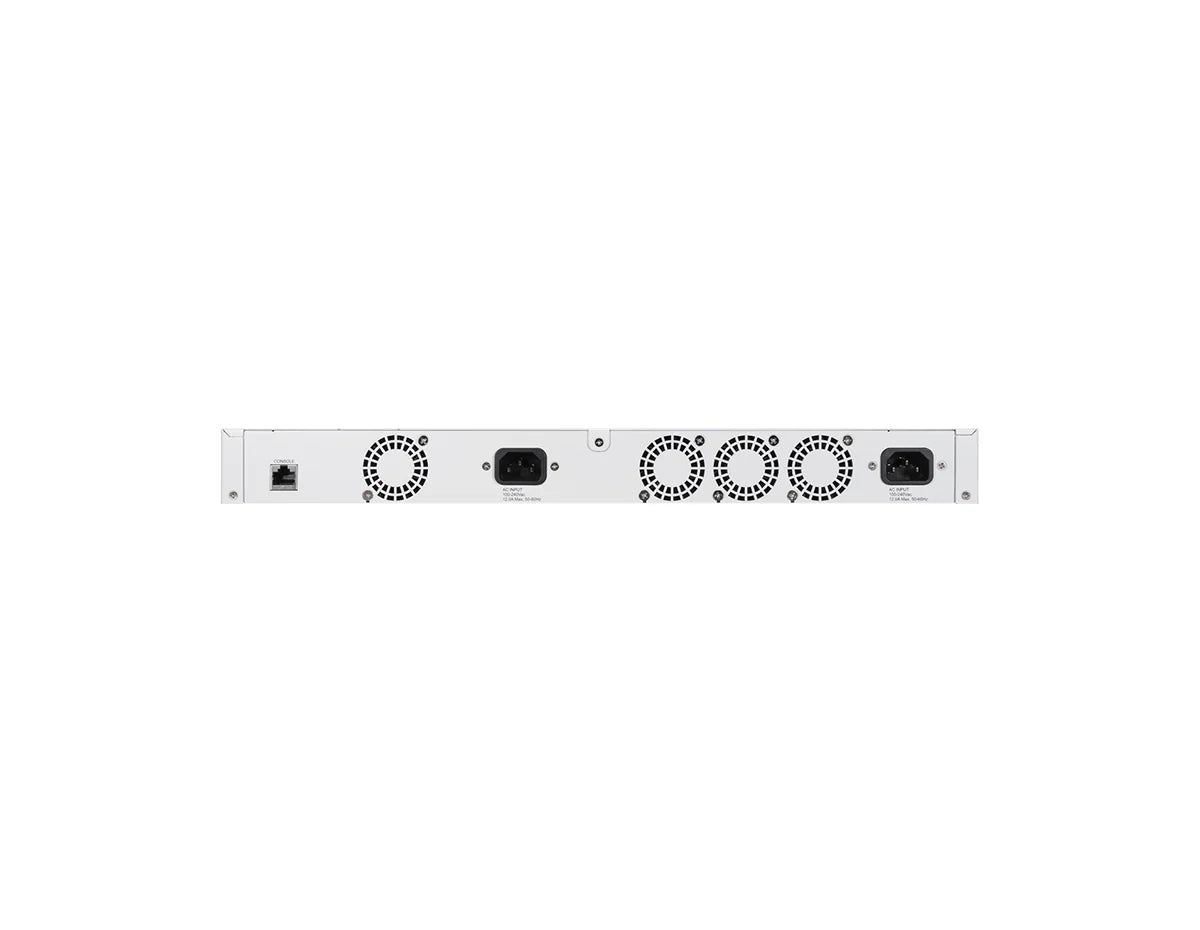

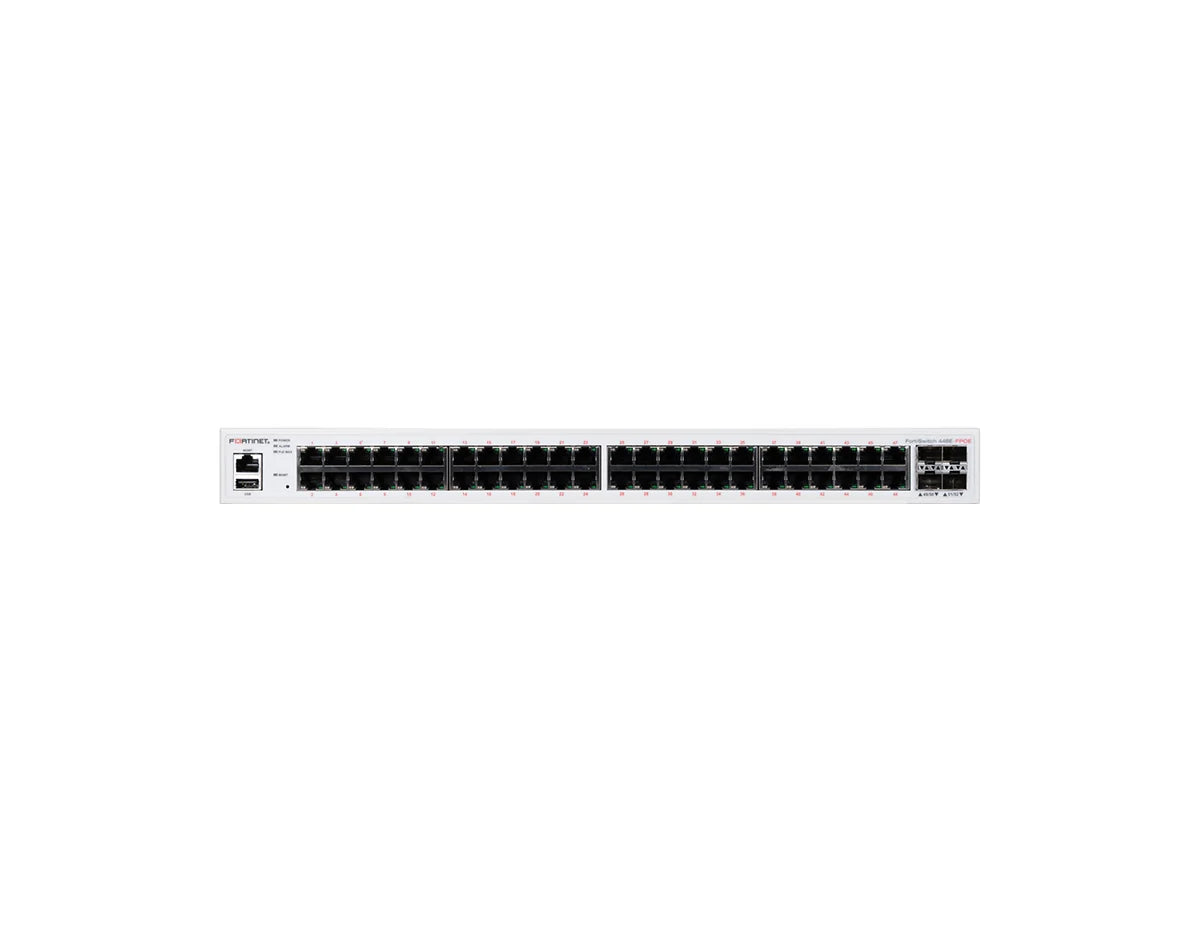

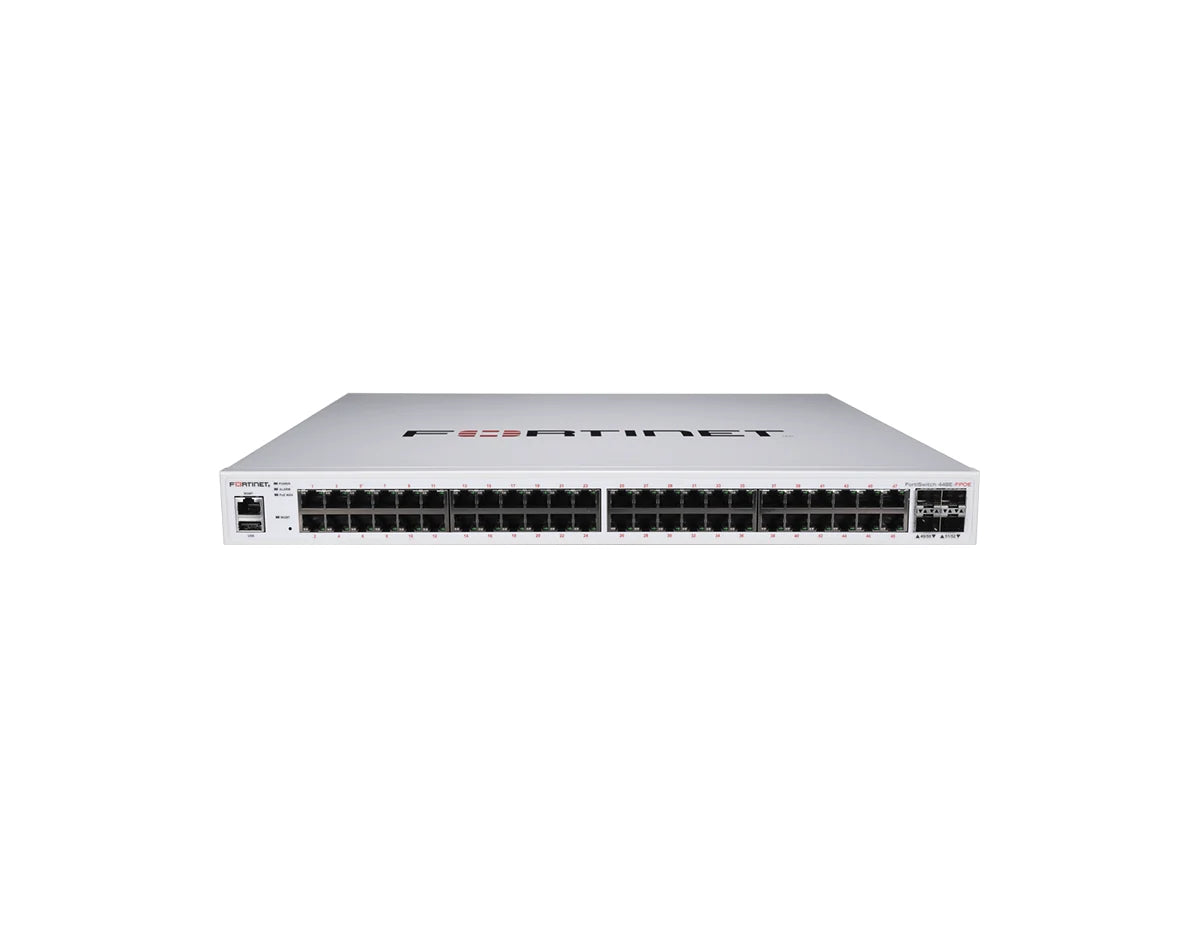

Fortinet FS-448E-FPOE Switch
The Fortinet FS-448E-FPOE is a high-performance network switch designed for large-scale enterprise environments. With its advanced switching capacity of 176 Gbps and a forwarding rate of 262 Mpps, this switch ensures fast and efficient data transmission. It has a 48x GE RJ45 ports, 4x 10GE SFP+ ports and 48 PoE ports.
Quick Specs:
-
48x GE RJ45 Switch Ports
-
4x 10GE SFP+ uplink ports
-
48 PoE ports
-
PoE Power Budget: 772 W
Please see the related tabs for the FS-448E-FPOE datasheet and compatible accessories.
