[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 5, powered by SoC4 ASIC, delivering up to 10 / 10 / 6 Gbps firewall throughput and including a 1-Year Enterprise Protection bundle [/shortdesc]
[properties]
| SKU |
FWF-60F-A-BDL-809-12 |
| Form Factor |
Desktop |
| Wireless Standard |
802.11 a/b/g/n/ac-W2 (WiFi 5) |
| Firewall Throughput |
10/10/6 Gbps (1518/512/64 byte UDP packets) |
| Interfaces |
2x GE WAN, 1x GE DMZ, 2x GE FortiLink, 5x GE Internal |
| Dimensions (H x W x L) |
38.5 x 216 x 160 mm (1.5 x 8.5 x 6.3 inches) |
| Weight |
1.01 kg (2.23 lbs) |
| Power Input |
12Vdc, 3A (External Adapter) |
| Bundle Included |
1 Year Enterprise Protection (FortiCare Premium Services included; curated FortiGuard AI-Powered Security services) |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) |
| IPS Throughput |
1.4 Gbps |
| NGFW Throughput |
1 Gbps |
| Threat Protection Throughput |
700 Mbps |
| System Performance & Capacity |
| IPv4 Firewall Throughput |
10/10/6 Gbps (1518/512/64 byte UDP packets) |
| Firewall Latency |
3.3 μs |
| Concurrent Sessions (TCP) |
700,000 |
| New Sessions/Second (TCP) |
35,000 |
| Firewall Policies |
2,000 |
| IPsec VPN Throughput |
6.5 Gbps |
| SSL-VPN Throughput |
900 Mbps |
| SSL Inspection Throughput |
630 Mbps |
| Wireless Specifications |
| Radio |
Single Radio (2.4GHz/5GHz) |
| MIMO |
3x3 |
| Max WiFi Speeds |
1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz |
| Antenna Gain |
3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz |
| Hardware Specifications |
| USB Port |
1x USB Port |
| Console Port |
1x RJ45 Console Port |
| Environment & Power |
| Power Consumption (Avg / Max) |
17.2 W / 18.7 W |
| Heat Dissipation |
63.8 BTU/hr |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-31°F to 158°F (-35°C to 70°C) |
| Humidity |
10% to 90% non-condensing |
| Noise Level |
Fanless 0 dBA |
| Certifications |
| Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications |
USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories |
Rack Mount Tray (SP-RACKTRAY-02), AC Power Adaptor (SP-FG60E-PDC-5), Wall Mount Kit (SP-FG60F-MOUNT-20) |
[/accesories]
High-Performance Security with Enterprise Protection
The FortiWiFi 60F (FWF-60F-A-BDL-809-12) sets a new standard for desktop security appliances with its purpose-built SoC4 SD-WAN ASIC. This 1-Year Enterprise Protection bundle strengthens defense-in-depth with FortiCare Premium Services and FortiGuard AI-Powered Security services.
Delivering up to 10 Gbps firewall throughput, the FWF-60F ensures that security never becomes a bottleneck. The integrated 802.11 a/b/g/n/ac-W2 Wi-Fi eliminates the need for separate access points, while the fanless design allows for silent operation in noise-sensitive environments like retail stores and branch offices.
Key Benefits
-
1-Year Enterprise Protection: Includes FortiCare Premium Services and FortiGuard AI-Powered Security services for enterprise-grade protection.
-
Powered by SoC4 ASIC: Delivers industry-leading performance with 10 Gbps firewall throughput and 6.5 Gbps IPsec VPN throughput.
-
Integrated Wireless: Built-in 802.11 a/b/g/n/ac-W2 Wi-Fi with 3x3 MIMO technology provides reliable, high-speed wireless connectivity.
-
Fanless Operation: Silent 0 dBA noise level ensures suitability for desktop use in open office environments.
-
Unified Management: Consolidates SD-WAN, NGFW, and Wi-Fi management into a single console, reducing operational complexity.
-
Secure SD-WAN: Delivers application-aware steering and fast application identification and application-aware steering for optimized performance.
Ideal Use Cases
-
Small & Medium Business: All-in-one enterprise-grade security and Wi-Fi solution without the complexity of multiple devices.
-
Branch Offices: Secure SD-WAN connectivity with integrated wireless for direct internet access and cloud applications.
-
Retail Environments: Reliable connectivity for POS systems and guest Wi-Fi, protected by advanced threat intelligence.
Technical Specifications Summary
-
Firewall Throughput: 10/10/6 Gbps (1518/512/64 byte UDP packets)
-
IPS Throughput (Enterprise Mix): 1.4 Gbps
-
NGFW Throughput: 1 Gbps
-
Threat Protection Throughput: 700 Mbps
-
IPsec VPN Throughput (512 byte): 6.5 Gbps
-
SSL Inspection Throughput (IPS, avg. HTTPS): 630 Mbps
-
Concurrent Sessions (TCP): 700,000
-
New Sessions/Second (TCP): 35,000
-
Wireless: Single radio (2.4GHz/5GHz) 802.11 a/b/g/n/ac-W2, 3x3 MU-MIMO; max 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
-

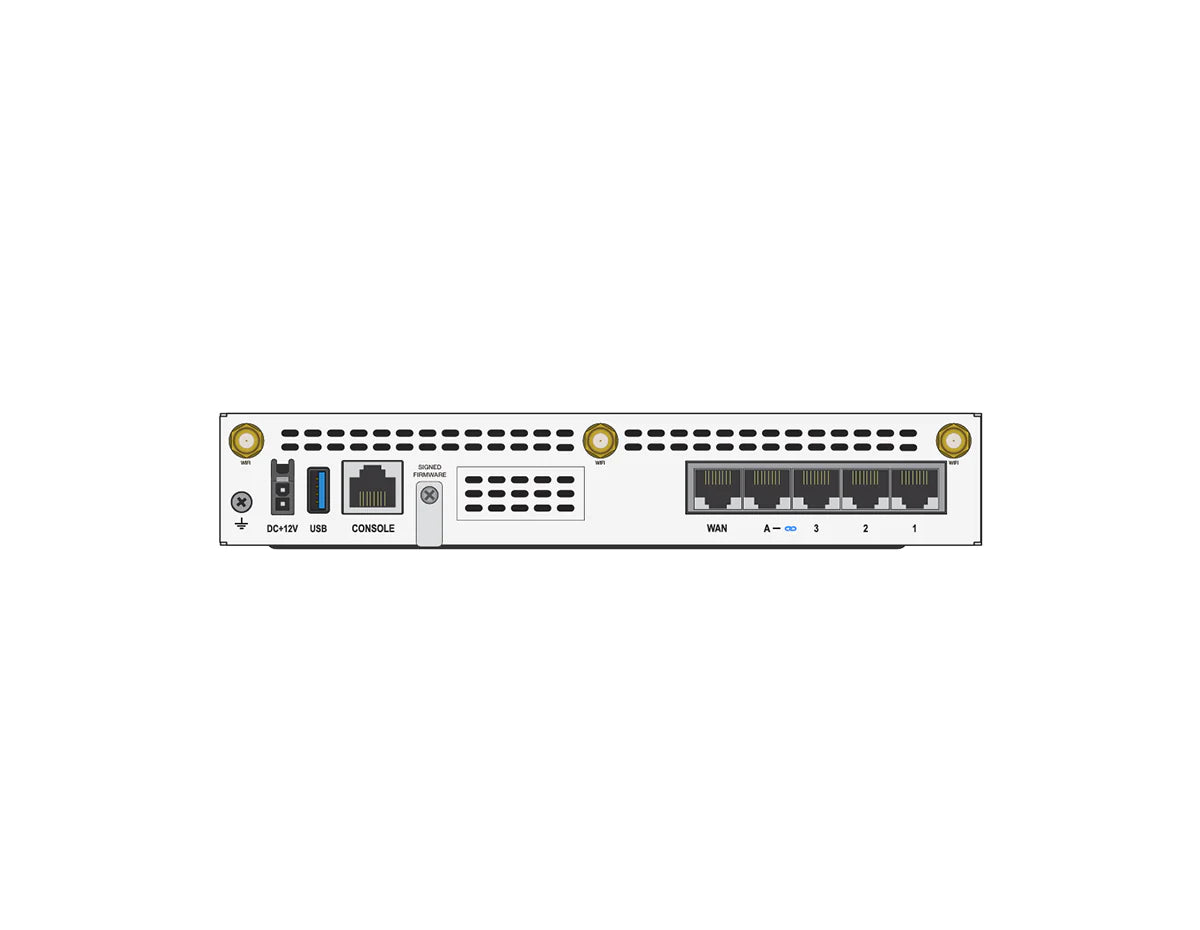

Interfaces: 10x GE RJ45 (2x WAN, 1x DMZ, 2x FortiLink, 5x Internal), 1x USB, 1x RJ45 Console
-
Power & Form Factor: 12Vdc, 3A; 17.2 W avg / 18.7 W max; fanless 0 dBA
