[shortdesc]48x Multi-Gig PoE++ access ports, 8x 25G SFP28 uplinks, 1800W PoE budget, Layer 2/3 switching, FortiLink managed, 1RU rack-mount[/shortdesc]
[properties]
| Model |
FortiSwitch 648F-FPoE |
| SKU |
FS-648F-FPOE |
| Brand |
Fortinet |
| Product Type |
Managed Ethernet Switch |
| Switching Layer |
Layer 2 / Layer 3 |
| Form Factor |
1U Rack-mountable |
| Total Ports |
48 RJ-45, 8 SFP28 |
| RJ-45 Ports |
32 x 1GE/2.5GE, 16 x 1GE/2.5GE/5GE |
| Uplink Ports |
8 x 1GE/10GE/25GE SFP/SFP+/SFP28 |
| PoE Standard |
IEEE 802.3af / 802.3at / 802.3bt (Type 4) |
| PoE Ports |
48 |
| Total PoE Budget |
1800 W |
| Switching Capacity |
720 Gbps |
| Forwarding Rate |
1071 Mpps |
| MAC Address Table |
64K entries |
| VLAN Support |
Up to 4096 VLANs |
| Management |
FortiLink, CLI, Web GUI, SNMP |
| Power Supply |
Dual hot-swappable AC |
| Redundant Power |
Yes |
| Dimensions (H x W x D) |
44 x 440 x 442 mm |
| Weight |
7.834 kg |
| Operating Temperature |
0 °C to 45 °C |
| Operating Humidity |
5% to 95% RH non-condensing |
[/properties]
[specifications]
| Switching Architecture |
Non-blocking, wire-speed |
| Packet Buffer |
8 MB |
| Latency |
< 1 µs |
| Spanning Tree |
STP, RSTP, MSTP, Rapid PVST |
| Link Aggregation |
LACP, MCLAG supported |
| Routing Protocols |
OSPF, OSPFv2, BGP, RIP-2, IS-IS, VRRP, ECMP |
| Multicast |
IGMP Snooping, IGMP Querier, MLD Snooping |
| Security Features |
802.1X, ACLs, DHCP Snooping, IP Source Guard, MACsec |
| QoS |
802.1p, DSCP, Priority Queuing |
| Jumbo Frames |
Supported |
| Management Protocols |
SNMP v1/v2c/v3, RMON, Syslog, SSH, HTTPS |
| Time Services |
SNTP, IEEE 1588 PTP |
| MTBF |
> 10 years |
| Certifications |
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
[/specifications]
[accesories]
| Included in the box |
Rack mounting kit, USB to RJ-45 console cable, AC power cables |
| Optional Power Supplies |
FS-600-PSU-1200 redundant AC power supply |
| Optional Accessories |
Fortinet SFP/SFP+/SFP28 transceiver modules |
[/accesories]

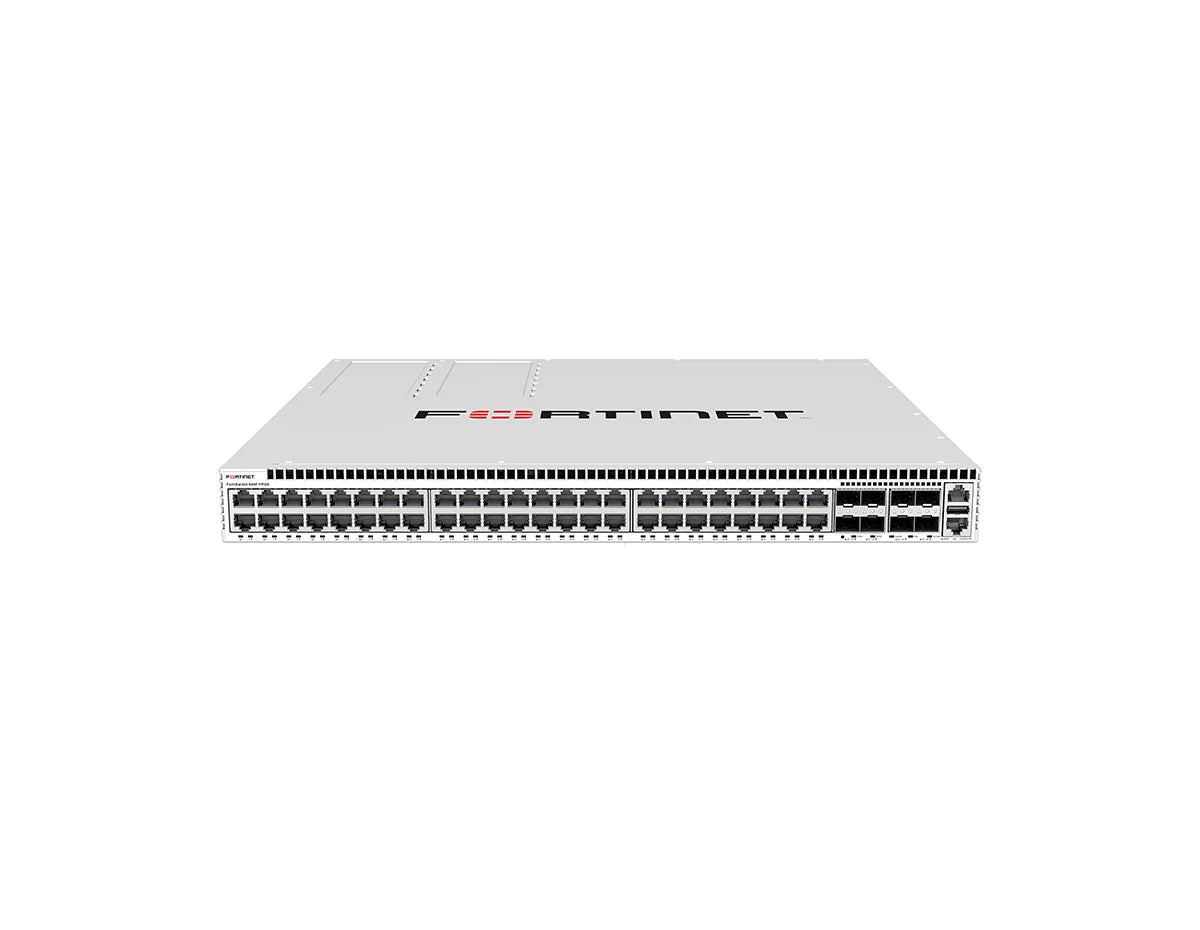

High-Density Secure Switching for Modern Campus Networks
The Fortinet FortiSwitch 648F-FPOE is a high-performance enterprise campus switch designed to deliver secure, scalable, and power-dense access layer connectivity. Built for modern environments running Wi-Fi 6, IoT devices, IP cameras, and unified communications, it combines Multi-Gigabit Ethernet, advanced PoE++, and deep FortiGate integration in a compact 1RU form factor.
When deployed with FortiGate using FortiLink, the FortiSwitch 648F-FPOE becomes a fully integrated extension of the Fortinet Security Fabric, enabling centralized management, automated policy enforcement, and dynamic segmentation across the wired network.
Key Benefits & Features
-
Ultra-High PoE++ Capacity: Delivers up to 1800W of IEEE 802.3bt PoE to power high-demand devices such as Wi-Fi 6 access points, PTZ cameras, and IoT gateways.
-
Multi-Gigabit Access Ports: Combines 32x 1G/2.5G and 16x 1G/2.5G/5G RJ45 ports to eliminate access layer bottlenecks.
-
25G Uplink Performance: Eight SFP28 uplinks provide high-speed aggregation and future-ready backbone connectivity.
-
Integrated Security Fabric: FortiLink enables centralized control, NAC, microsegmentation, and policy enforcement directly from FortiGate.
-
Enterprise-Grade Reliability: Dual hot-swappable power supplies and high reliability support nonstop campus operations.
Ideal Use Cases
- Enterprise and university campus access layers
- High-density Wi-Fi 6 and Wi-Fi 6E deployments
- IP surveillance and IoT-powered facilities
- Secure branch or headquarters network expansion
- Organizations standardizing on Fortinet Security Fabric
Build a Secure, High-Power Campus Network Today
Deploy the Fortinet FortiSwitch 648F-FPOE to unify performance, power, and security at the access layer. Order today.
