[shortdesc] 32-core CPU, 96GB RAM, 2x 960GB SSD, 1U rack, NAC appliance, up to 50000 endpoints [/shortdesc]
[properties]
| Model |
FNC-CA-700F |
| Product Type |
Network Access Control Appliance |
| Deployment Type |
Control and Application Server |
| Target Environment |
Large Enterprise Environments |
| Maximum Managed Endpoints |
Up to 50,000 |
| Form Factor |
1U Rack Mount |
| CPU |
AMD EPYC 7543P 32 Core 2.8GHz |
| Memory |
96GB DDR4 |
| Storage |
2x 960GB SSD |
| Network Interfaces |
1x GbE RJ45 and 4x 1GbE SFP or 10GbE SFP+ |
| RAID Configuration |
Software RAID1 |
| Power Supply |
Hot Plug 1+1 Redundant PSU |
| Cooling |
5x System Fans |
| Dimensions (mm) |
44 x 437 x 610 |
| Weight |
41 lbs (18.6 kg) |
[/properties]
[specifications]
| Input Power |
375 Watt |
| Input Current |
3.75A @100V, 1.57A @240V |
| Heat Dissipation |
1279.55 BTU/h |
| Operating Temperature |
32 F to 104 F (0 C to 40 C) |
| Storage Temperature |
-4 F to 158 F (-20 C to 70 C) |
| Humidity |
5 percent to 90 percent non-condensing |
| Console Access |
RJ45 type COM port for CLI |
| Certification - Safety |
Certified by NRTL, SCC, CE |
| Certification - EMC |
Certified by FCC, ICES, CE |
| Certification - Materials |
ROHS compliant (EU and China) |
| Architecture |
Out-of-band network access control |
| Data Collection Methods |
SNMP, CLI, RADIUS, SYSLOG, API, DHCP |
[/specifications]
Secure and Control Enterprise Networks with AI-Driven NAC

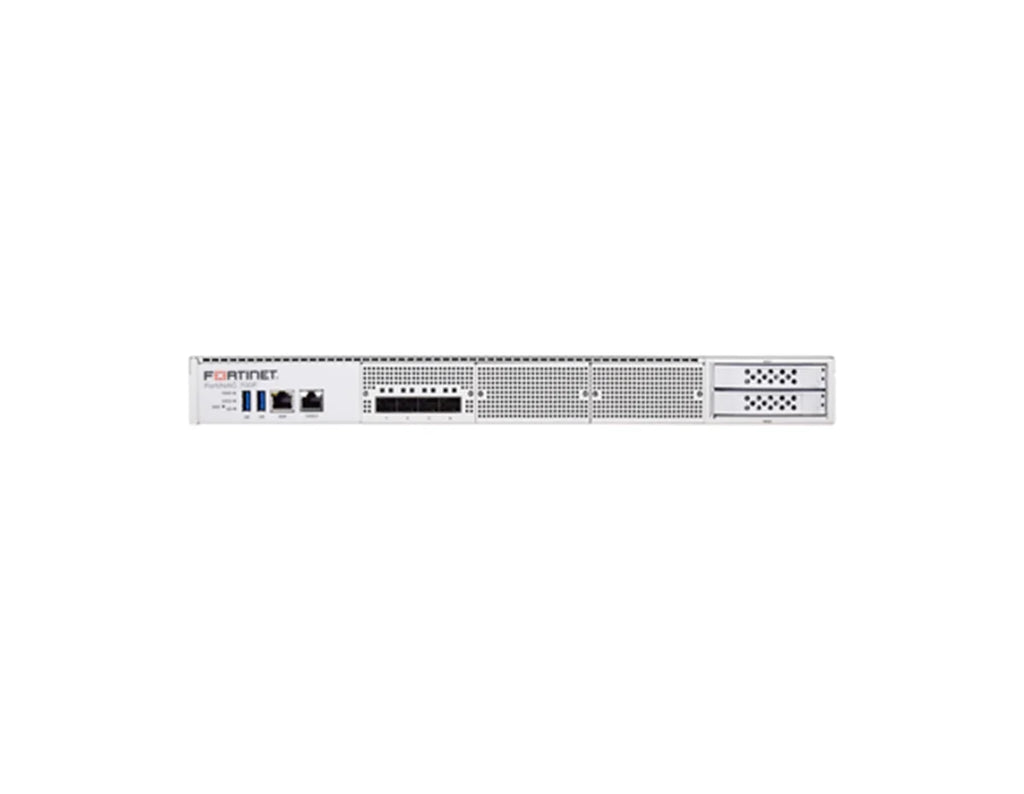

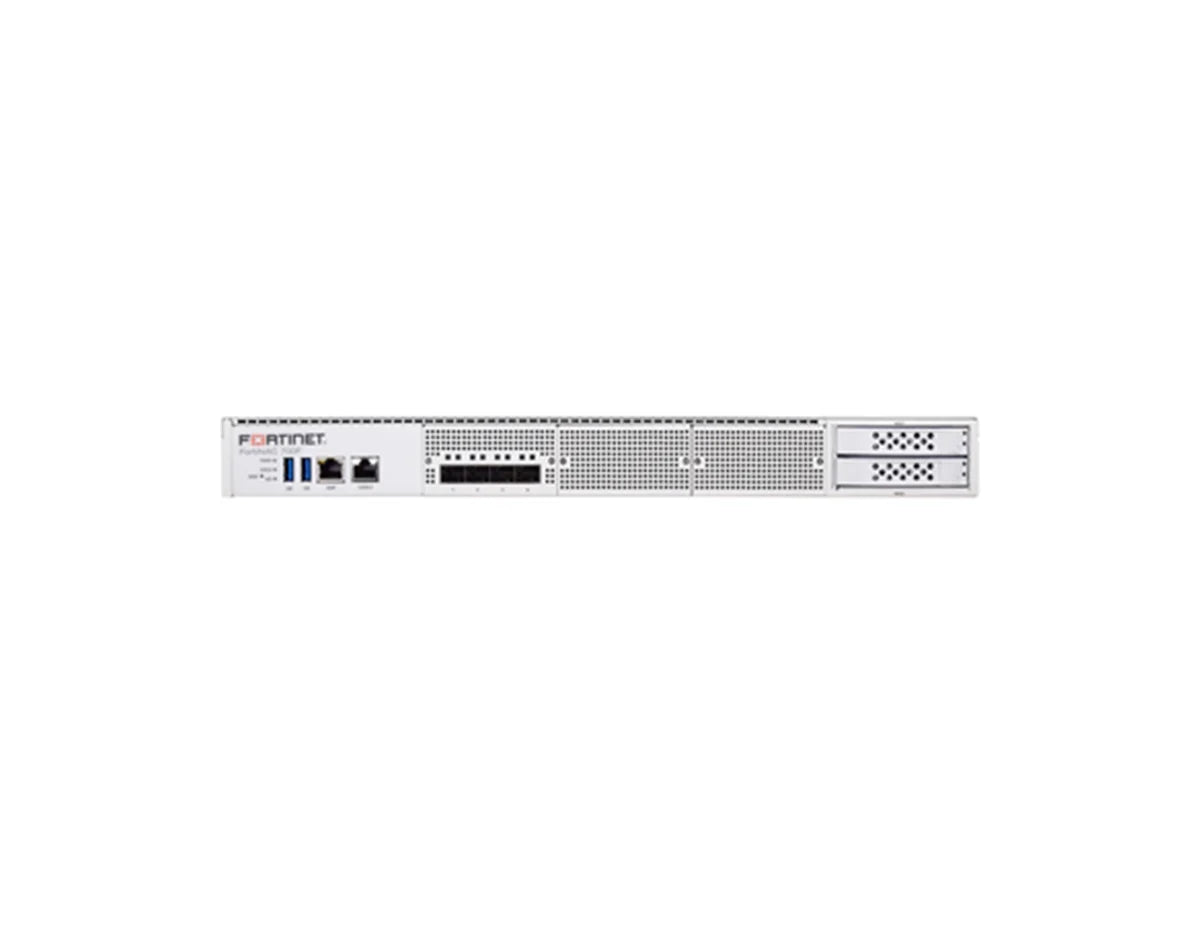

The Fortinet FortiNAC CA-700F is a high-performance network access control appliance designed for large-scale enterprise environments. It delivers deep visibility, automated response, and Zero Trust enforcement across users, devices, and IoT assets. Powered by AI-driven analytics and FortiGuard intelligence, it enables organizations to detect, classify, and control every endpoint in real time.
Key Benefits & Features
-
AI-Powered Device Visibility: Identifies and profiles all devices including IoT and BYOD using behavioral analysis and real-time threat intelligence.
-
Zero Trust Access Control: Enforces dynamic access policies based on identity, device type, and network context for granular segmentation.
-
Automated Threat Response: Detects anomalies and instantly quarantines compromised endpoints to prevent lateral movement.
-
Seamless Security Fabric Integration: Integrates with Fortinet and third-party solutions to extend visibility and coordinated security actions.
-
Scalable Enterprise Performance: Supports up to 50000 endpoints, making it ideal for large distributed networks and hybrid environments.
Ideal Use Cases
- Large enterprises managing high volumes of endpoints and IoT devices
- Organizations implementing Zero Trust network architectures
- Healthcare, finance, and government networks requiring compliance
- Hybrid and multi-cloud environments needing centralized NAC control
- Security operations teams requiring automated incident response
Technical Specifications
-
CPU: AMD EPYC 7543P 32-core processor (2.8 GHz base)
-
Memory: 96GB DDR4 RAM
-
Storage: 2 x 960GB SSD
-
Network Interfaces: 1x GbE RJ45 and 4x SFP/SFP+ ports
-
Form Factor: 1U rack-mount appliance
-
Endpoint Capacity: Supports up to 50000 endpoints
-
Power Supply: Redundant hot-plug PSU (1+1)
-
Operating Temperature: 0 C to 40 C
-
Cooling: 5 system fans
Strengthen Network Security with Intelligent Access Control
Gain full visibility and enforce Zero Trust policies across your network with Fortinet FortiNAC CA-700F. Order today to secure every connected device.
