- FortiGate 80F-POE, firewall, 8 x GE PoE ports, 2 x RJ45/SFP shared media WAN ports
[/shortdesc]
[properties]
| Properties |
FG-80F-POE |
| Description |
8 x GE PoE ports, 2 x RJ45/SFP shared media WAN ports |
| Product Family |
Early Level Firewalls |
| Product Type |
Firewall |
| GE RJ45 Internal Ports |
- |
| GE RJ45/SFP Shared Media Pairs |
- |
| GE RJ45 FortiLink Ports (Default) |
2 |
| GE RJ45 PoE/+ Ports |
6 |
| GE RJ45 PoE/+ FortiLink Ports (Default) |
2 |
| GE RJ45 WAN Port |
- |
| USB Port |
1 |
| Console (RJ45) |
1 |
| Wireless Interface |
0 |
| Internal Storage |
1x 128 GB SSD |
| Dimensions in. |
2.4 x 8.5 x 7.0 |
| Form Factor |
Desktop/ Wall Mount/ Rack Tray |
| Power Required |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz |
| Maximum Current |
115VAC/2.2A,
230VAC/1.1A |
| Power Consumption (Average / Maximum) |
96 W / 118 W |
[/properties][specifications]
| Firewall Throughput (1518 / 512 / 64 byte, UDP) |
10 / 10 / 7 Gbps |
| Firewall Latency (64 byte UDP packets) |
3.23 μs |
| Firewall Throughput (Packets Per Second) |
10.5 Mpps |
| Concurrent Sessions (TCP) |
1.5 Million |
| New Sessions/Second (TCP) |
45.000 |
| Firewall Policies |
5.000 |
| IPsec VPN Throughput (512 byte packets) |
6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| Client-to-Gateway IPsec VPN Tunnels |
2500 |
| SSL-VPN Throughput |
950 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) |
200 |
| IPS Throughput |
1.4 Gbps |
| SSL Inspection Throughput |
715 Mbps |
| Application Control Throughput |
1.8 Gbps |
| NGFW Throughput |
1 Gbps |
| Threat Protection Throughput |
900 Mbps |
| CAPWAP Throughput |
9 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
96 / 48 |
| Maximum Number of FortiTokens |
500 |
| Maximum Number of Registered FortiClients |
- |
| High Availability Configurations |
Active/Active, Active/Passive, Clustering |
| Operating Temperature |
32–104°F (0–40°C) |
| Regulatory Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications |
USGv6/IPv6 |
[/specifications][accesories]
| SP-FG80E-POE-PDC |
AC power adaptor for FG-60E-POE, FG-80E-POE, FG-81E-POE, FG-80/81F-POE, FWF-81F-2R-POE power cable SP-FG60CPCOR-XX sold separately |
| SP-RACKTRAY-02 |
Rack mount tray for all FortiGate E series and F series desktop models. |
| SP-FG60F-MOUNT-20 |
Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass |
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots. |
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots. |
| FN-TRAN-ZX |
1G SFP transceivers, -40°/85°C operation, 90km range for all systems with SFP Slots. |
[/accesories]

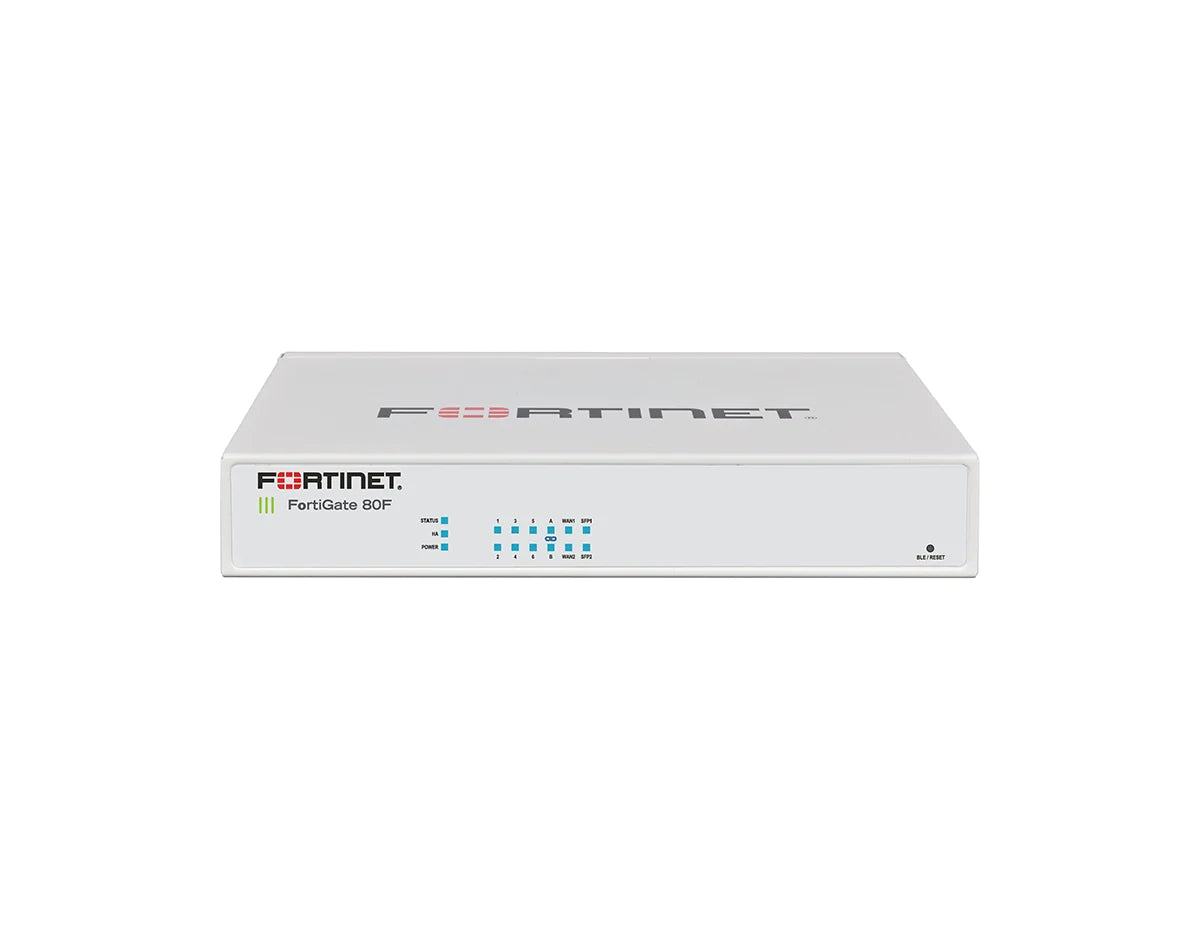

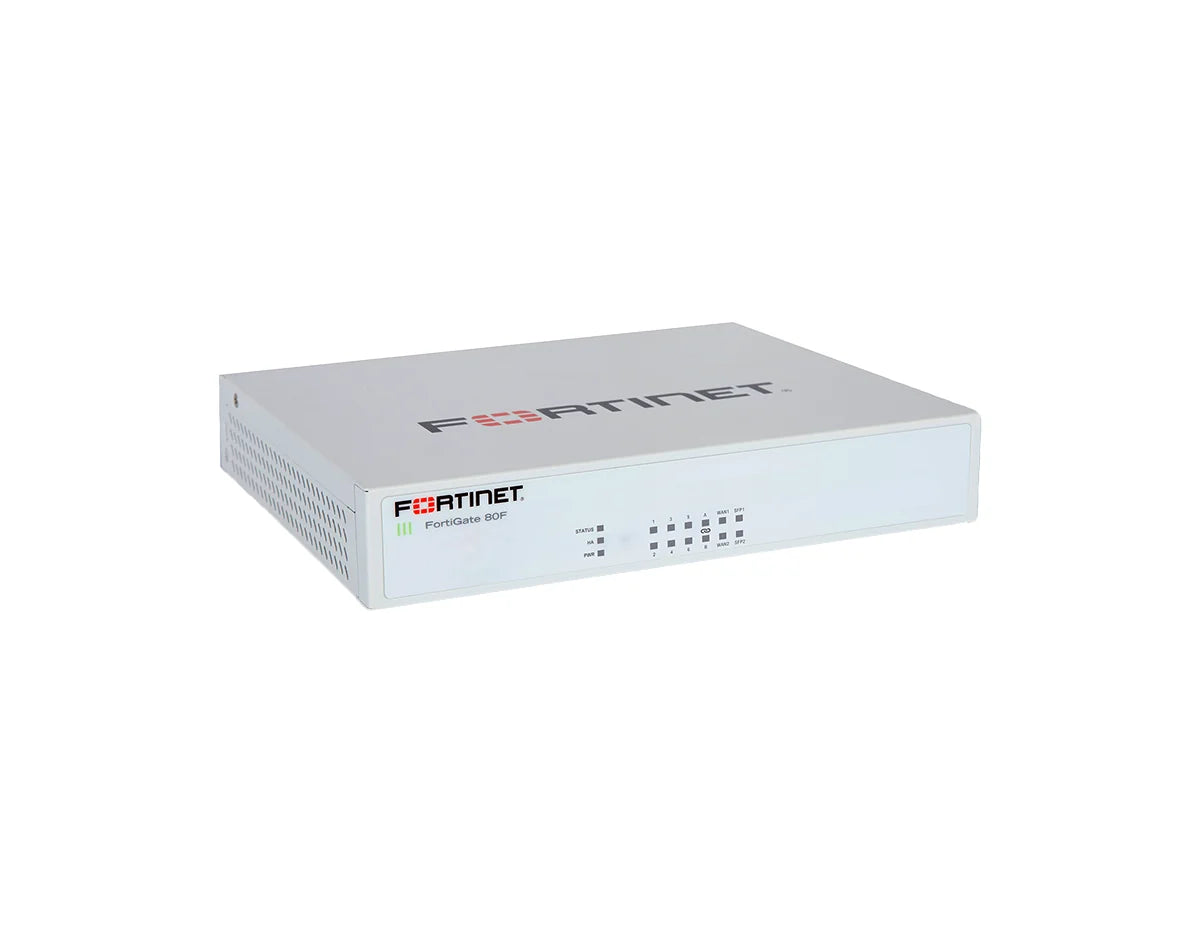

FortiGate-80F-POE Firewall
The FortiGate-80F-POE stands out with its potent firewall capabilities combined with versatile connectivity options, offering a blend of 8 Gigabit Ethernet (GE) PoE ports and 2 RJ45/SFP shared media WAN ports. Tailored for small to medium-sized businesses and branch offices, it emphasizes secure connectivity and streamlined network management without compromising performance.
Quick Specs of FG-80F-POE:
• Firewall with robust security features
• 8 GE PoE ports
• 2 RJ45/SFP shared media WAN ports
