[shortdesc]
FortiGate 61F next-generation firewall with 10x Gigabit Ethernet ports, Secure SD-WAN, 700 Mbps threat protection, fanless desktop design, and 128 GB SSD storage.
- 10 x GE RJ45 ports
- Secure SD-WAN
- 700 Mbps threat protection
- Fanless desktop appliance
- 128 GB SSD
[/shortdesc]
[properties]
| Property |
Details |
| Product Name |
Fortinet FortiGate 61F |
| SKU |
FG-61F |
| Brand |
Fortinet |
| Product Type |
Next Generation Firewall |
| Form Factor |
Desktop |
| Ports |
10 x GE RJ45 ports (2 x WAN, 1 x DMZ, 7 x Internal) |
| Storage |
1 x 128 GB SSD |
| Firewall Throughput |
10 Gbps |
| IPS Throughput |
1.4 Gbps |
| NGFW Throughput |
1 Gbps |
| Threat Protection Throughput |
700 Mbps |
| Operating System |
FortiOS |
| High Availability |
Active-Active, Active-Passive |
| Power Supply |
External DC power adapter |
| Noise Level |
Fanless (0 dBA) |
| Dimensions (H x W x D) |
38 x 216 x 160 mm (1.5 x 8.5 x 6.3 in) |
| Weight |
1.01 kg (2.23 lb) |
[/properties]
[specifications]
| Firewall Throughput (1518 / 512 / 64 byte) |
10 / 10 / 6 Gbps |
| Firewall Latency |
3.3 μs (64 byte UDP) |
| Concurrent Sessions (TCP) |
700,000 |
| New Sessions per Second |
35,000 |
| Firewall Policies |
2,000 |
| IPsec VPN Throughput |
6.5 Gbps |
| Gateway-to-Gateway IPsec Tunnels |
200 |
| Client-to-Gateway IPsec Tunnels |
500 |
| SSL-VPN Throughput |
900 Mbps |
| Concurrent SSL-VPN Users |
200 |
| SSL Inspection Throughput |
750 Mbps |
| Application Control Throughput |
1.8 Gbps |
| CAPWAP Throughput |
6.4 Gbps |
| Virtual Domains (Default / Max) |
10 / 10 |
| Maximum FortiSwitches Supported |
24 |
| Maximum FortiAPs Supported |
64 (32 Tunnel Mode) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-35°C to 70°C (-31°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Certifications |
FCC, CE, RCM, UL/cUL, CB |
[/specifications]
[accesories]
| Included in the Box |
FortiGate 61F appliance, External DC power adapter, Documentation |
| Optional Mounting |
Rack Mount Tray SP-RACKTRAY-02; Wall Mount Kit SP-FG60F-MOUNT-20 |
| Optional Power |
AC Power Adapter SP-FG60E-PDC-5 |
[/accesories]

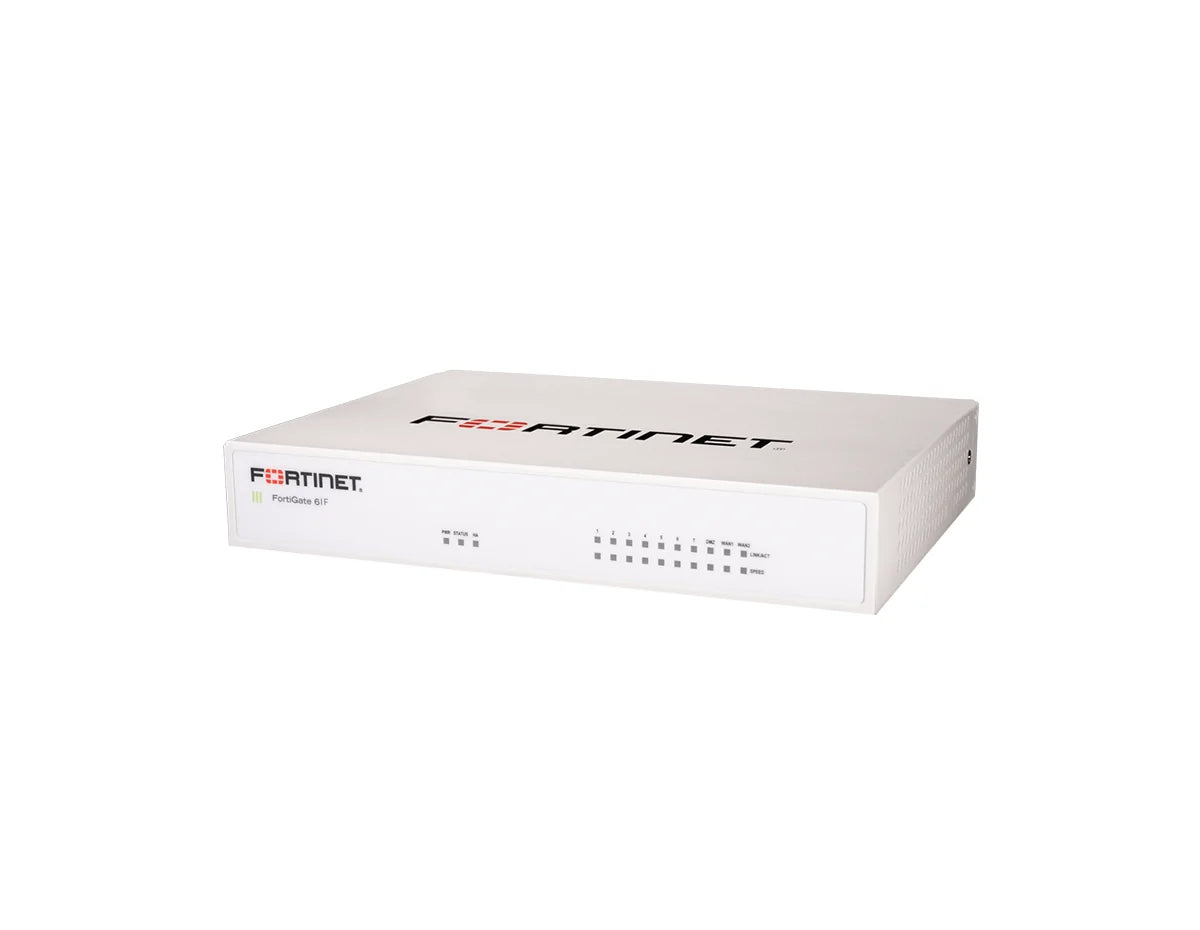

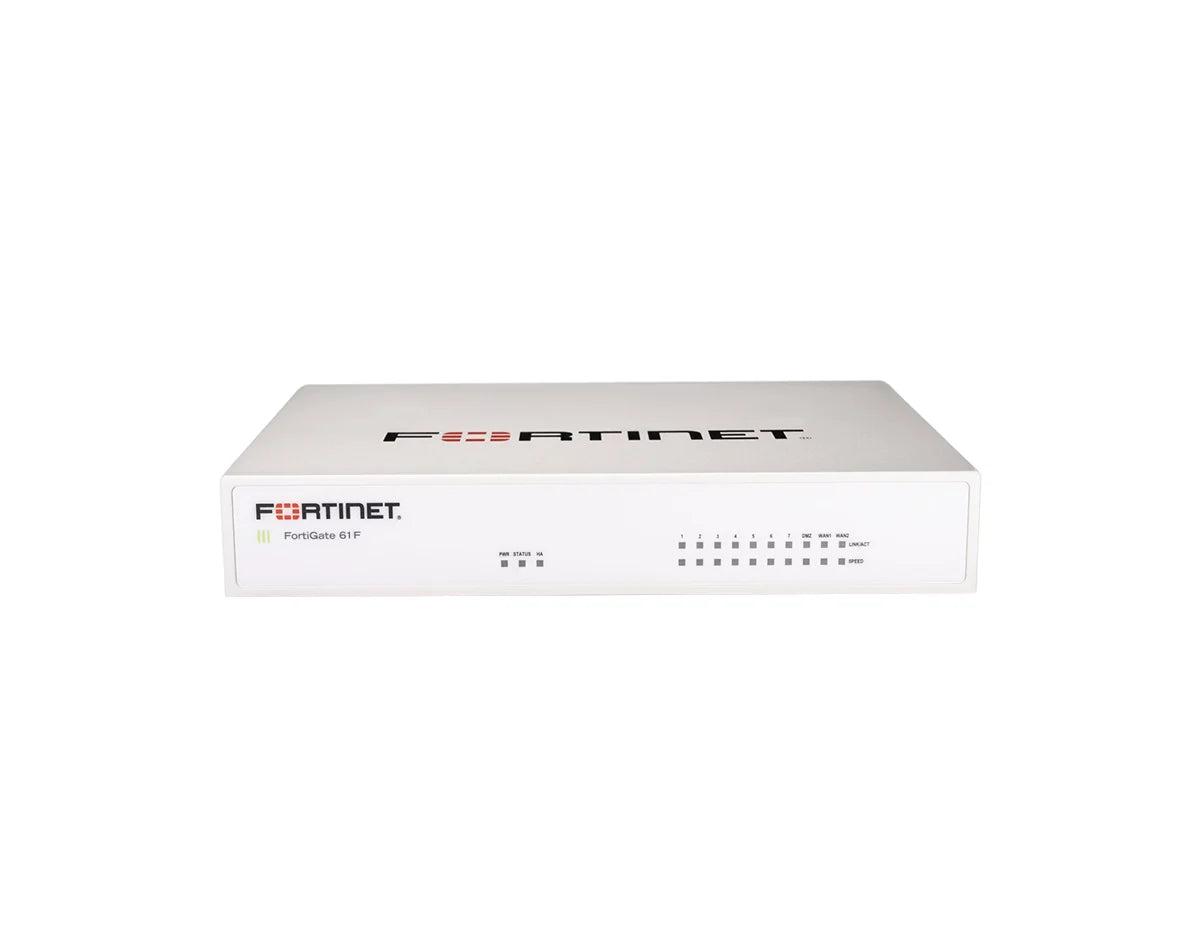

Fortinet FortiGate 61F
The Fortinet FortiGate 61F is a compact next-generation firewall built for enterprise branch offices and small to mid-sized businesses. It combines advanced threat protection, deep SSL inspection, and integrated Secure SD-WAN in a fanless desktop form factor. With 10 Gigabit Ethernet ports and 128 GB SSD storage, it delivers strong security and flexible connectivity for modern branch networks.
Key Features
- Up to 10 Gbps firewall throughput for high-performance network security
- 700 Mbps threat protection for advanced security services
- Integrated Secure SD-WAN for application-aware WAN optimization
- 10 x GE RJ45 ports for flexible branch deployment
- Fanless desktop design for silent operation
- 128 GB SSD for local storage and logging
