[shortdesc] FG-4401F-DC-BDL-809-60 NGFW, 12x 100GE QSFP28, 2x 1.92TB SSD, 1.15 Tbps firewall, FortiCare Premium + FortiGuard Enterprise Protection, 5 Year. [/shortdesc]
[properties]
| Model |
FG-4401F-DC-BDL-809-60 |
| Bundle / Subscription |
Hardware + FortiCare Premium + FortiGuard Enterprise Protection (5 Year) |
| Form Factor |
Rack Mount, 4 RU |
| Interfaces |
12x 100 GE QSFP28 / 40 GE QSFP+, 20x 25 GE SFP28 / 10 GE SFP+ / GE SFP (16 data + 2 HA + 2 AUX), 2x GE RJ45 Mgmt |
| Power Input |
-48V to -60V DC |
| Internal Storage |
2x 1.92TB SSD |
| Dimensions (H x W x L) |
177 x 437 x 665 mm (6.97 x 17.20 x 26.17 inches) |
| Weight |
83.1 lbs (37.7 kg) |
[/properties]
[specifications]
| System Performance |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) |
1.15 / 1.14 / 0.50 Tbps |
| IPS Throughput |
94 Gbps |
| NGFW Throughput |
82 Gbps |
| Threat Protection Throughput |
75 Gbps |
| IPsec VPN Throughput (512 byte) |
310 Gbps |
| SSL-VPN Throughput |
16 Gbps |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
86 Gbps |
| Application Control Throughput (HTTP 64K) |
140 Gbps |
| Interfaces & Hardware |
| Hardware Accelerated 100 GE QSFP28/40 GE QSFP+ Slots |
12 |
| Hardware Accelerated 25 GE SFP28/10 GE SFP+/GE SFP Slots |
16 |
| Hardware Accelerated 25 GE SFP28/10 GE SFP+/GE SFP HA Slots |
2 |
| Hardware Accelerated 25 GE SFP28/10 GE SFP+/GE SFP AUX Slots |
2 |
| GE RJ45 Management Ports |
2 |
| USB Port (3.0) |
1 |
| Console Port |
1 |
| Trusted Platform Module (TPM) |
Yes |
| Environment & Power |
| DC Current (Average / Maximum) |
32A / 100A pk |
| Power Consumption (Average / Maximum) |
1539W / 1881W |
| Redundant Power Supplies |
Yes, Hot Swappable, 1+1 (DC) |
[/specifications]
[accesories]
| Included Transceivers |
2x SFP+ (SR 10 GE) |
| Optional Accessories |
SP-FG4000F-DC-PS (DC Power Supply), SP-FG4K6K-FAN (Fan Tray), various Transceivers (SFP, SFP+, SFP28, QSFP+, QSFP28), Direct Attach Cables |
[/accesories]

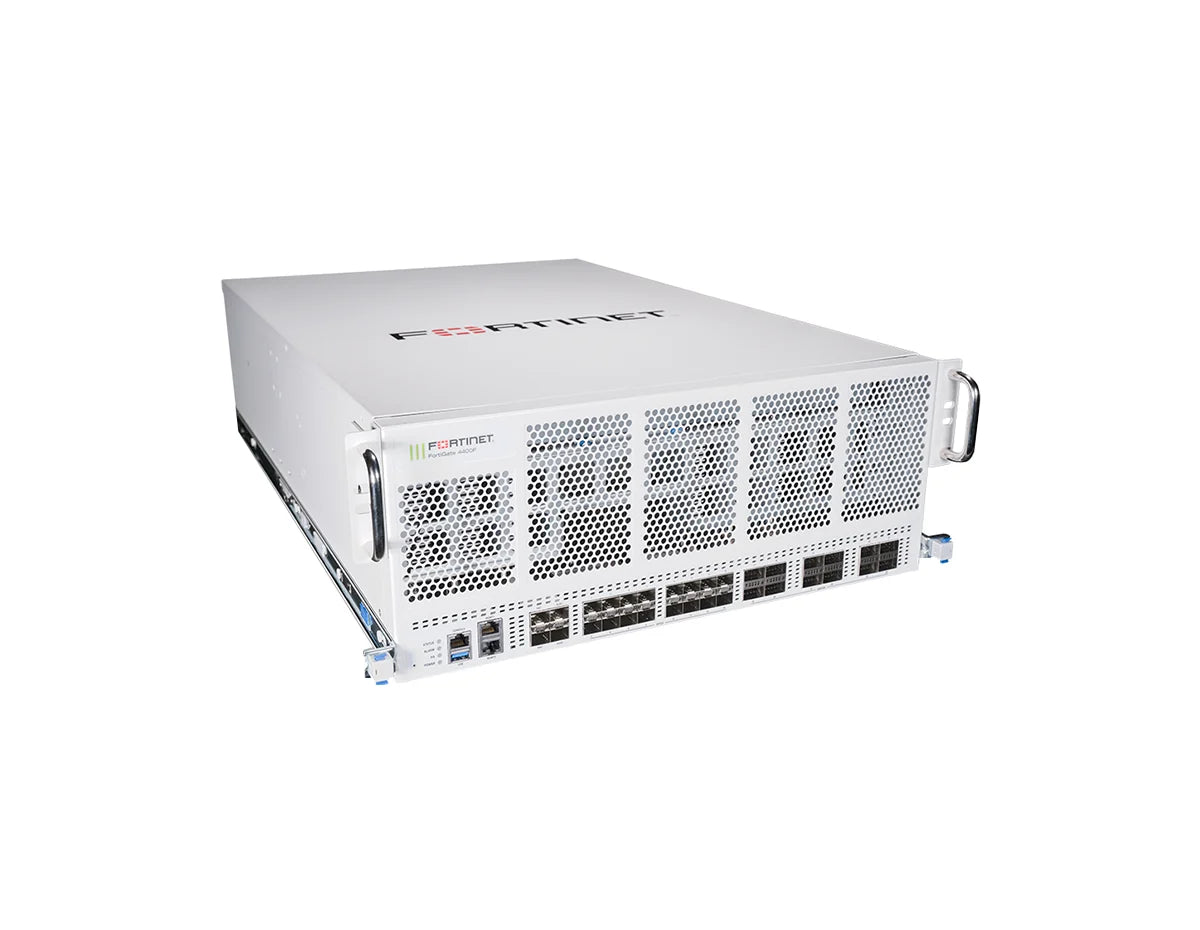

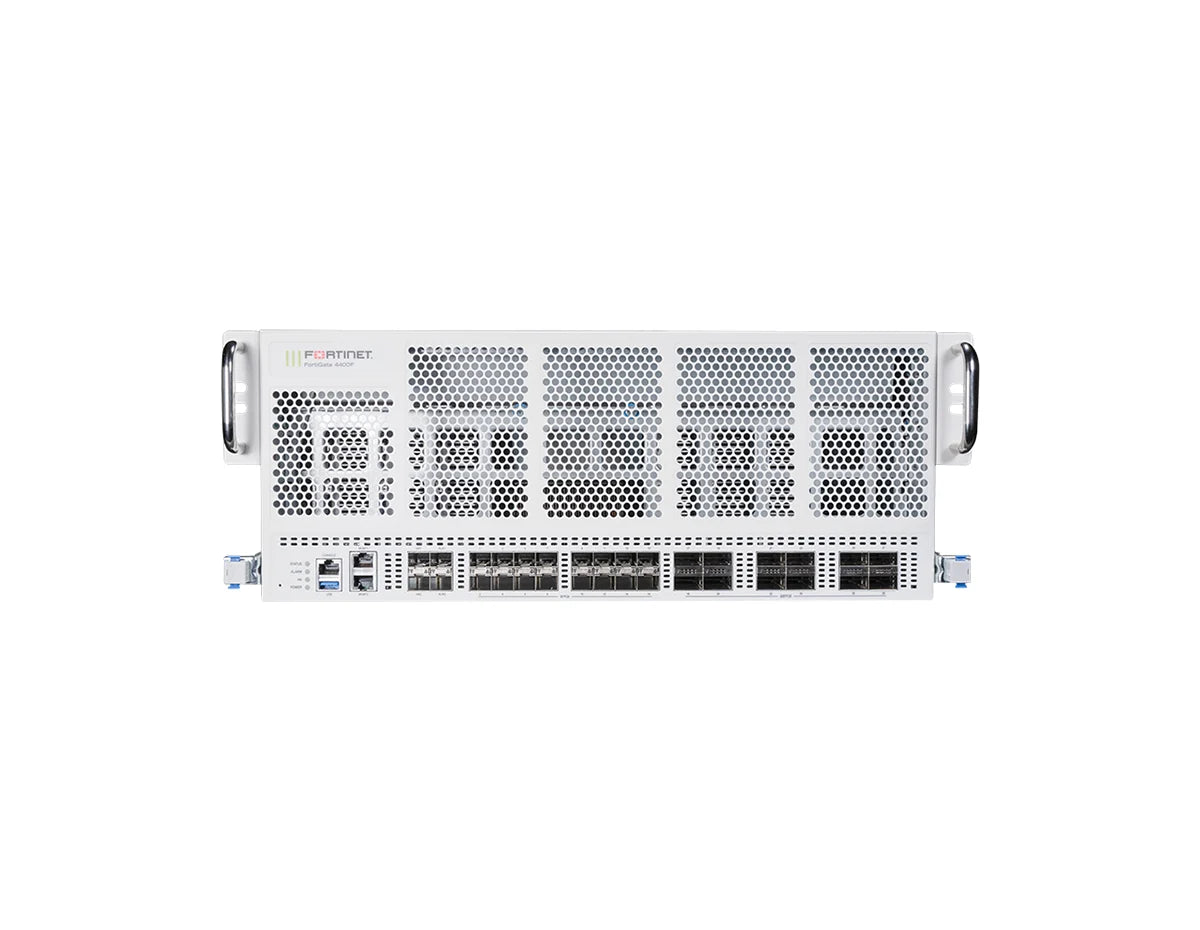

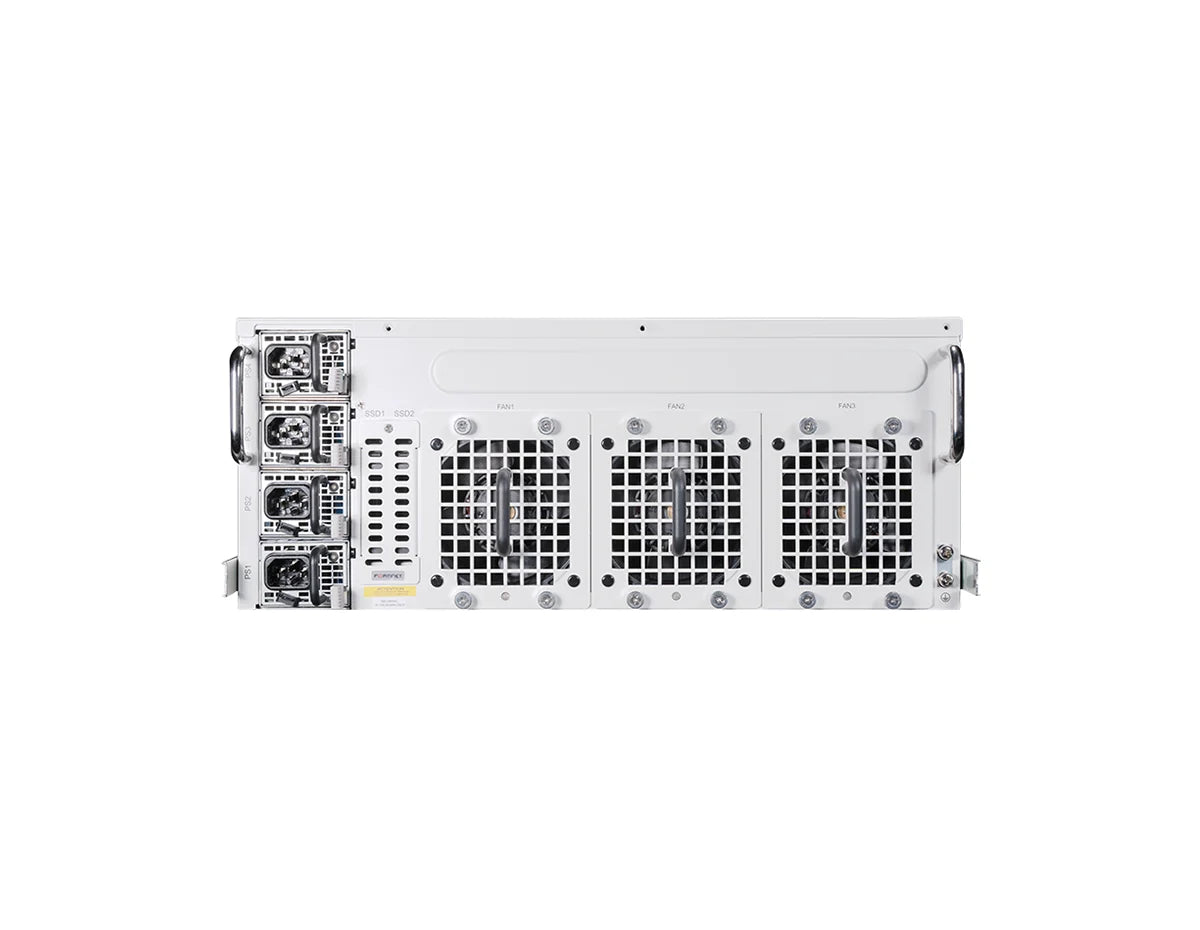

The FortiGate 4401F-DC is a hyperscale next-generation firewall for DC-powered data centers, powered by purpose-built NP7 and CP9 SPUs. It combines high-speed 100GE/25GE interfaces with integrated SSD storage for local logging.
This BDL-809 bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection for 5 Year. It supports Hybrid Mesh Firewall architecture and integrated Zero Trust Network Access (ZTNA) enforcement across distributed networks.
Hyperscale Security with DC Power, Storage, and Patented SPU Technology
- NP7 and CP9 SPUs accelerate firewall and threat inspection.
- 12x 100GE QSFP28 / 40GE QSFP+ slots for core segmentation.
- 20x 25GE SFP28 / 10GE SFP+ / GE SFP ports.
- DC power supplies support -48V to -60V infrastructure.
- Dual 1.92TB SSD storage enables fast local logging.
- BDL-809 includes FortiCare Premium and FortiGuard Enterprise Protection (5 Year).
Upgrade Your Network Security
Deploy the FG-4401F-DC-BDL-809-60 to add FortiCare Premium and FortiGuard Enterprise Protection (5 Year).
