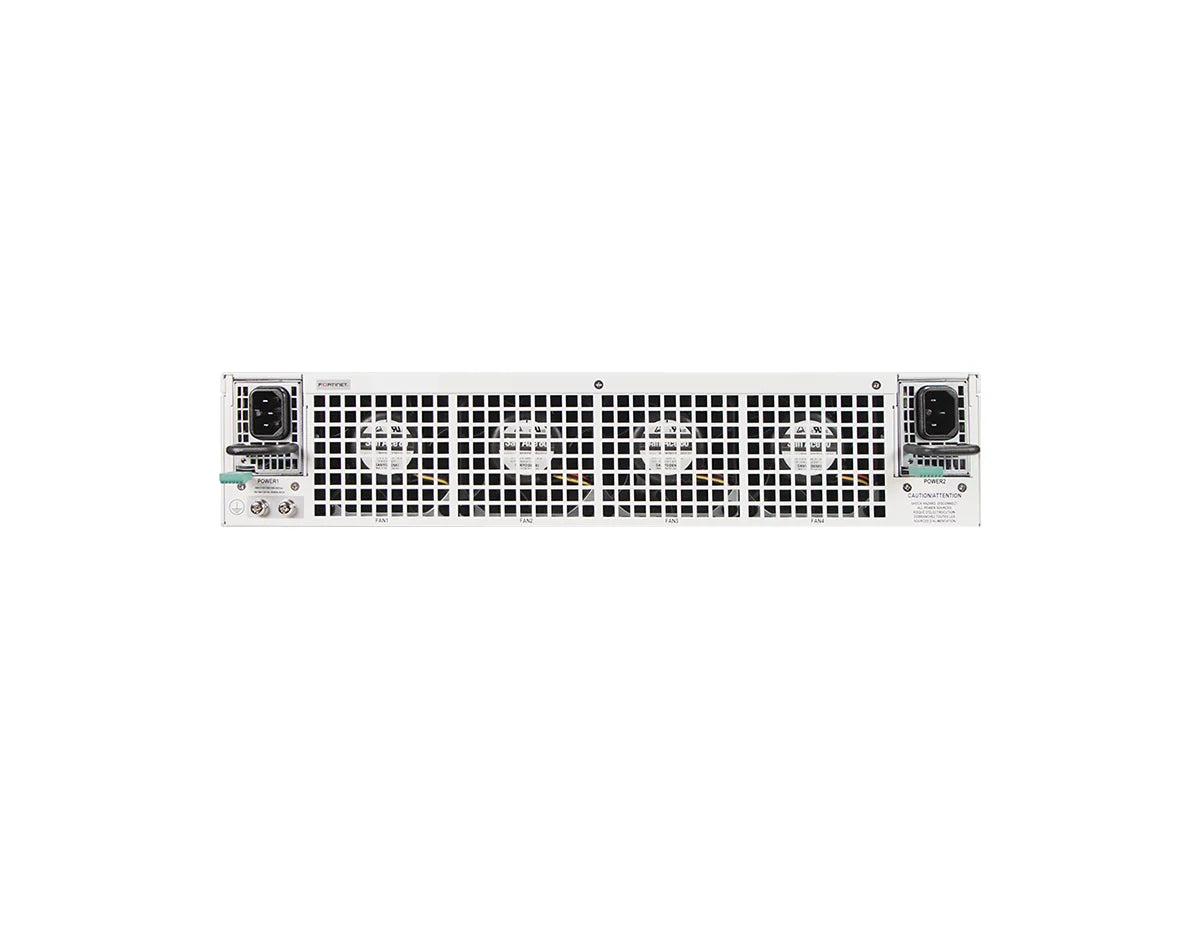

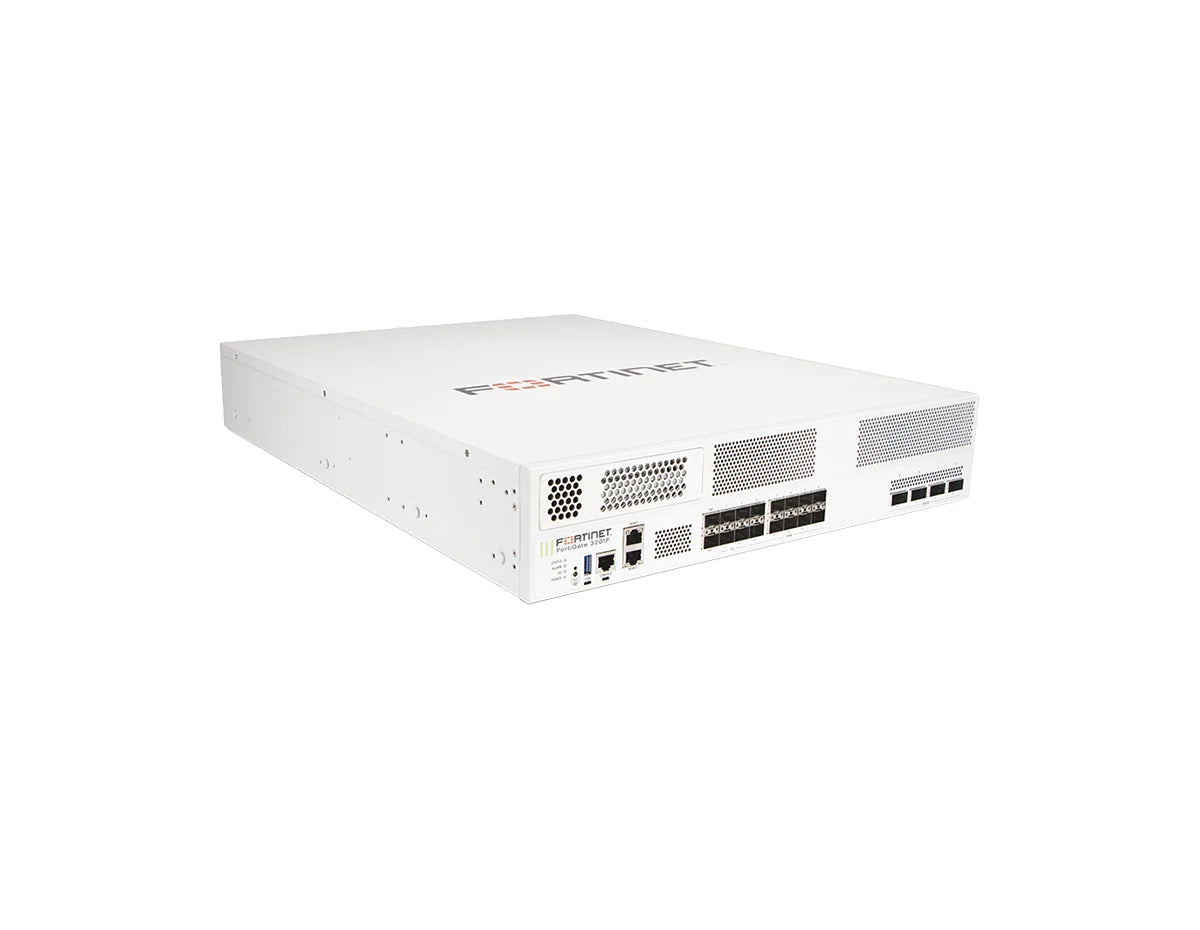

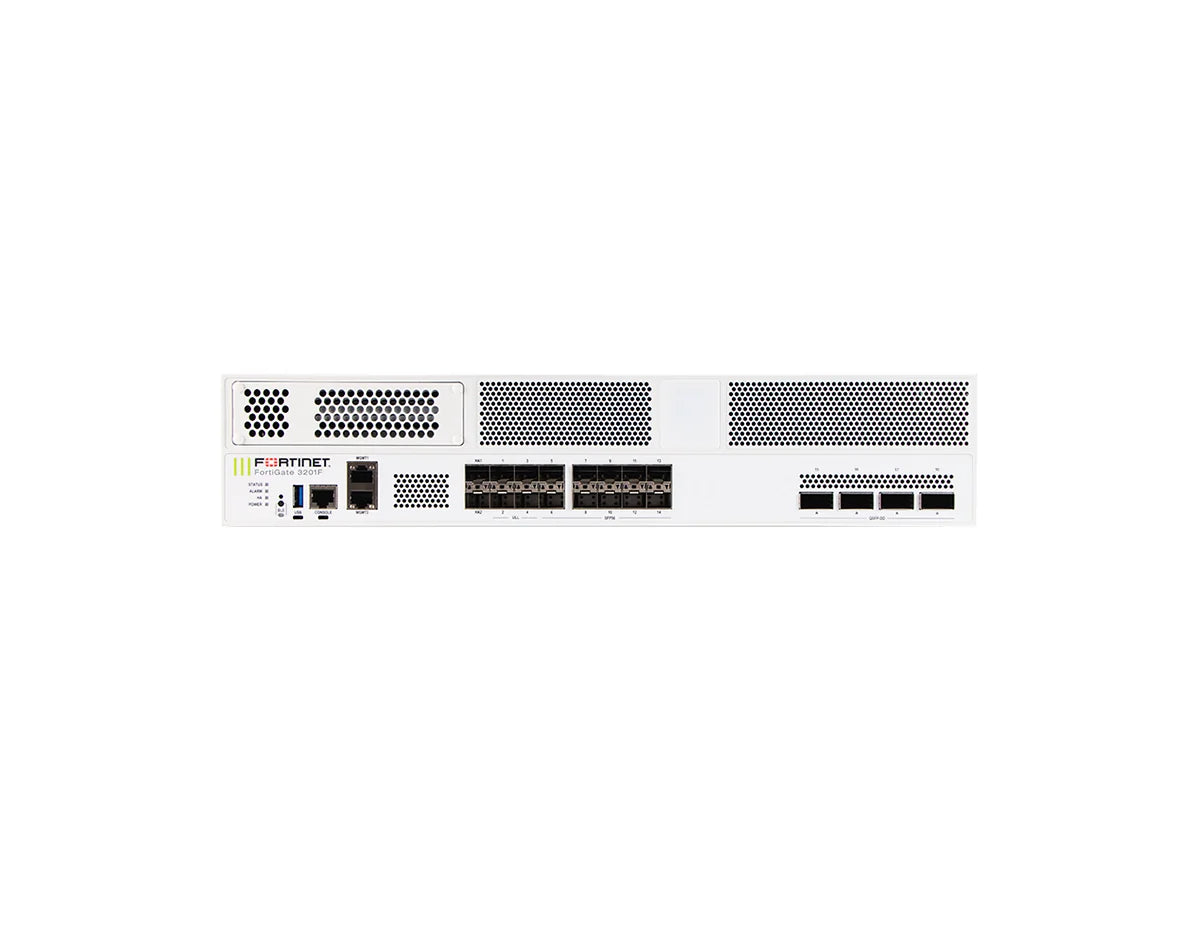

[shortdesc]FG-3201F-BDL-809-12 Next-Generation Firewall, four 400GE QSFP-DD, dual 960GB SSDs, NP7/CP9 SPUs, 47 Gbps NGFW, FortiCare Premium + FortiGuard Enterprise Protection, 1 Year.[/shortdesc]
[properties]
| Model |
FG-3201F-BDL-809-12 |
| Bundle / Subscription |
Hardware + FortiCare Premium + FortiGuard Enterprise Protection (1 Year) |
| Form Factor |
Rack Mount, 2RU |
| Firewall Throughput (IPv4) |
387 / 385 / 178.5 Gbps (1518 / 512 / 64 byte UDP) |
| Threat Protection Throughput |
45 Gbps |
| Network Interfaces |
4x 400GE QSFP-DD, 10x 50GE SFP56 (data), 2x 50GE SFP56 (HA1/HA2), 4x 25GE SFP28 ULL, 2x 10GE RJ45 Mgmt |
| Internal Storage |
2x 960GB SSD |
| Dimensions (H x W x L) |
3.5 x 17.44 x 23.9 inches (88.9 x 443 x 607.1 mm) |
| Weight |
45.5 lbs (20.7 kg) |
| Power Input |
100–240VAC, 60/50 Hz |
[/properties]
[specifications]
| Performance / Throughput |
| IPS Throughput |
63 Gbps |
| NGFW Throughput |
47 Gbps |
| Threat Protection Throughput |
45 Gbps |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
387/385/178.5 Gbps |
| Firewall Latency (64 byte, UDP) |
3.42 μs / 1.45 μs* |
| Firewall Throughput (Packet per Second) |
267.75 Mpps |
| Concurrent Sessions (TCP) |
70 Million |
| New Sessions/Second (TCP) |
800,000 |
| Interfaces / Ports |
| USB 3.0 Port |
1 |
| Console RJ45 Port |
1 |
| VPN / NGFW Relevant |
| IPsec VPN Throughput (512 byte) |
105 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
40,000 |
| Client-to-Gateway IPsec VPN Tunnels |
200,000 |
| SSL-VPN Throughput |
11 Gbps |
| Concurrent SSL-VPN Users (Tunnel Mode) |
30,000 |
| SSL Inspection Throughput (IPS, avg HTTPS) |
29 Gbps |
| Dimensions / Weight / Form Factor |
| Height x Width x Length (inches) |
3.5 x 17.44 x 23.9 |
| Height x Width x Length (mm) |
88.9 x 443 x 607.1 |
| Weight |
45.5 lbs (20.7 kg) |
| Form Factor (supports EIA/non-EIA standards) |
Rack Mount, 2RU |
| Power / Consumption |
| AC Power Supply |
100–240VAC, 60/50 Hz |
| Power Consumption (Average/Maximum) |
527 W / 870 W |
| Current (Maximum) |
12A@100V, 9A@240V |
| Heat Dissipation |
2971 BTU/h |
[/specifications]
[accesories]
| Optional Accessories |
Rack Mount Sliding Rails (SP-FG3040B-RAIL), Spare AC Power Supply (SP-FG3800D-PS), various SFP/QSFP Transceiver Modules and Cables |
[/accesories]
The FortiGate 3201F enables organizations to build security-driven networks with the foundation of a Hybrid Mesh Firewall architecture across data center and hybrid IT environments. Powered by FortiOS, it consolidates networking and security into a single platform for consistent visibility and control.
Purpose-built SPU acceleration supports high-speed inspection and segmentation without adding operational complexity. Integrated onboard storage strengthens local logging and reporting workflows for large-scale deployments.
Secure Networking with 400GE Hyperscale Connectivity and Onboard Storage
-
AI-Powered Security: FortiGuard AI-Powered Security Services for real-time threat protection.
-
Ultra-Low Latency: Dedicated ULL ports support firewall latency as low as 1.45 μs*.
-
Integrated ZTNA: Integrated ZTNA enforcement controls and verifies user access.
-
Massive Scale: High session capacity supports 70 million concurrent TCP sessions.
-
SSL Visibility: Hardware acceleration boosts SSL inspection and application visibility.
-
Resilient Hardware: 2RU design with dual AC PSUs for 1+1 redundancy.
Upgrade Your Network Security
Deploy FG-3201F-BDL-809-12 with FortiCare Premium + FortiGuard Enterprise Protection (1 Year).
