[shortdesc]FG-3001F-BDL-950-12 NGFW, 2x 960GB SSD, 100 GE QSFP28 + 25 GE SFP28, Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP), 1 Year.[/shortdesc]
[properties]
| SKU |
FG-3001F-BDL-950-12 |
| Bundle / Subscription |
Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year) |
| Form Factor |
Rack Mount, 2 RU |
| NGFW Throughput |
34 Gbps |
| Threat Protection Throughput |
33 Gbps |
| Interfaces Summary |
6x 100 GE QSFP28 / 40 GE QSFP+ slots, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots (includes 2x HA slots), 16x 10 GE / 5 GE / 2.5 GE / GE RJ45 ports, 2x 10 GE / GE RJ45 management ports |
| Internal Storage |
2x 960GB SSD |
| Power Input |
100–240V AC, 50/60 Hz |
| Dimensions (H x W x L) |
88.9 x 443 x 556 mm (3.5 x 17.44 x 21.89 inches) |
| Weight |
17.3 kg (38.2 lbs) |
[/properties]
[specifications]
| Performance / Throughput |
| IPS Throughput |
36 Gbps |
| NGFW Throughput |
34 Gbps |
| Threat Protection Throughput |
33 Gbps |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) |
397 / 389 / 221 Gbps |
| Firewall Latency (64 byte, UDP) |
3.92 µs |
| IPsec VPN Throughput (512 byte) |
105 Gbps |
| SSL Inspection Throughput |
29 Gbps |
| Interfaces / Ports |
| Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots |
6 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots |
16 (includes 2x HA Slots) |
| Hardware Accelerated 10 GE / 5 GE / 2.5 GE / GE RJ45 Ports |
16 |
| 10 GE / GE RJ45 Management Ports |
2 |
| USB Ports (Client / Server) |
1 / 1 |
| Console Port |
1 |
| Trusted Platform Module (TPM) |
Yes |
| VPN / NGFW Capacity |
| Concurrent Sessions (TCP) |
70 Million / 230 Million |
| New Sessions/Second (TCP) |
870,000 / 3 Million |
| Gateway-to-Gateway IPsec VPN Tunnels |
40,000 |
| Client-to-Gateway IPsec VPN Tunnels |
200,000 |
| SSL-VPN Throughput |
11 Gbps |
| Concurrent SSL-VPN Users (Recommended Max) |
30,000 |
| Dimensions / Weight / Form Factor |
| Height x Width x Length (mm) |
88.9 x 443 x 556 |
| Weight |
17.3 kg (38.2 lbs) |
| Form Factor (supports EIA/non-EIA standards) |
Rack Mount, 2 RU |
| Power / Consumption |
| Power Consumption (Average / Maximum) |
420 W / 690 W |
| AC Power Supply |
100–240V AC, 50/60 Hz |
| AC Current (Maximum) |
12A @ 100V, 9A @ 240V |
| Redundant Power Supplies |
Yes (Default dual AC PSU for 1+1 Redundancy) |
[/specifications]
[accesories]
| Optional Accessories |
Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (SP-FG3800D-PS), DC Power Supply (SP-FG3800D-DC-PS), Transceiver Modules (1 GE SFP LX/SX/RJ45, 10 GE SFP+ SR/LR/ER/BD27/BD33/ZR, 25 GE SFP28 SR/LR, 40 GE QSFP+ SR/SR-BiDi/LR/ER, 100 GE QSFP28 SR/LR/CWDM4/BiDi/ER), 25 GE SFP28 Passive Direct Attach Cables (FN-CABLE-SFP28-1/3/5) |
[/accesories]

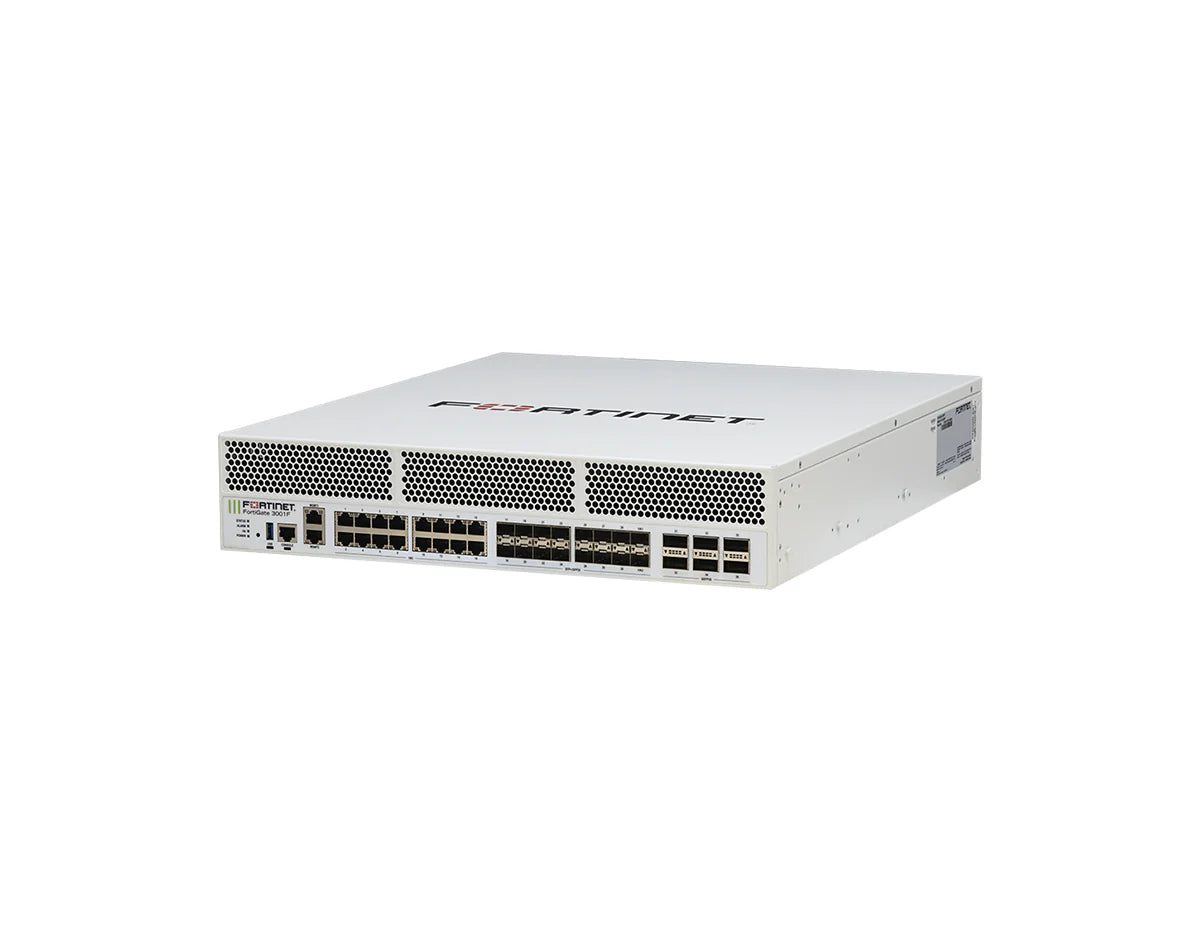

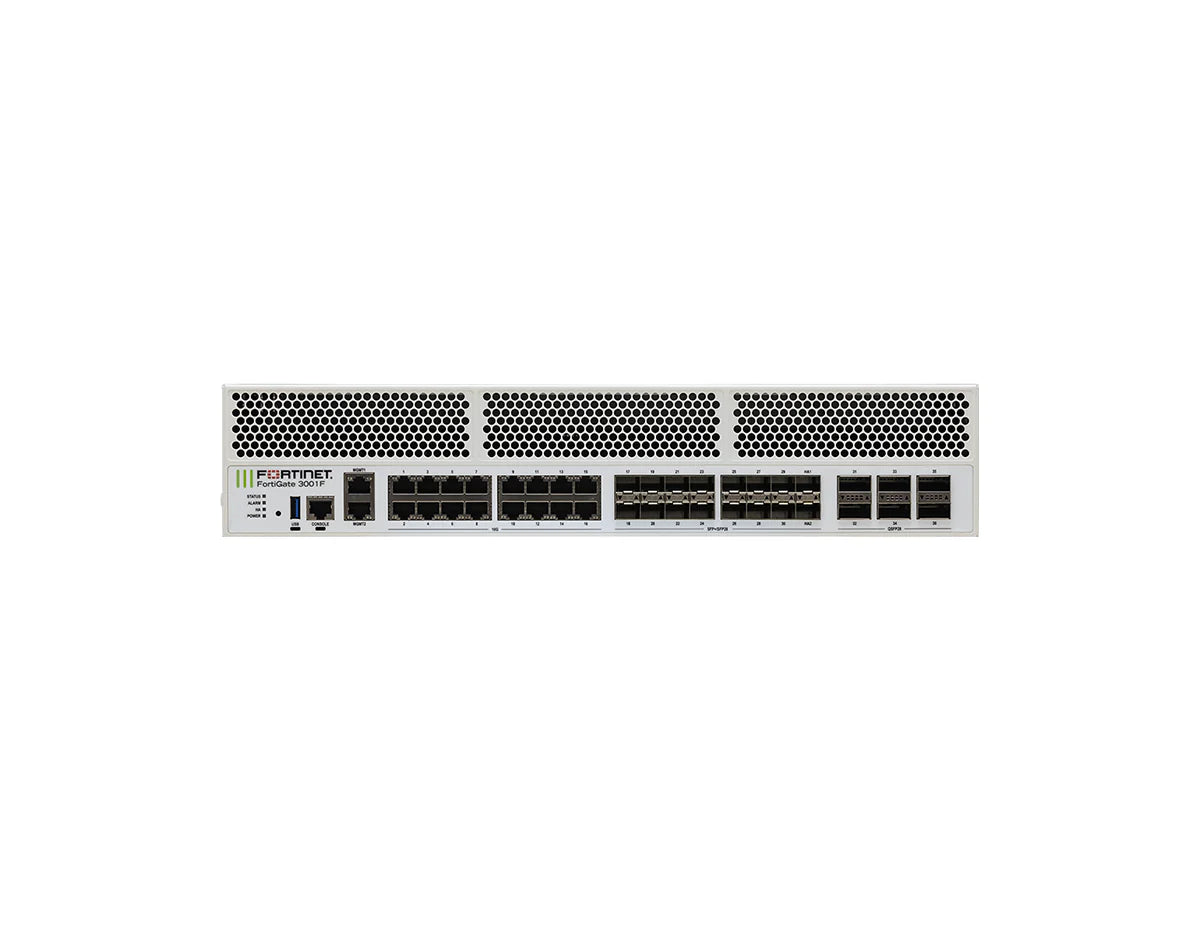

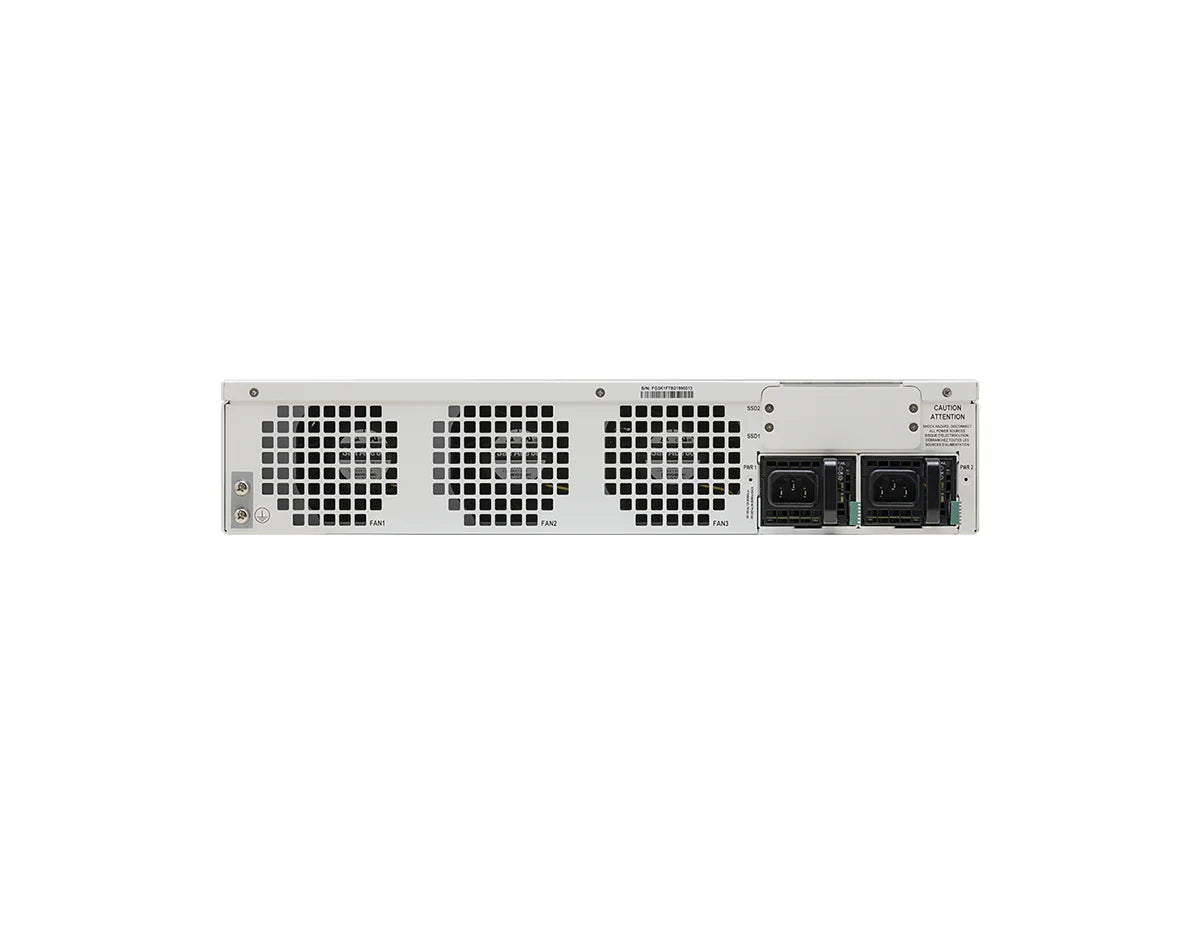

The FortiGate 3001F Series enables organizations to build security-driven networks for Hybrid Mesh Firewall deployments across data center and hybrid IT environments. FG-3001F-BDL-950-12 includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for a 1 Year term.
Designed for flexibility and hyperscale, the FortiGate 3001F includes 2x 960GB SSD onboard storage for local logging and operational needs. Multiple high-speed interfaces—including 100 GE QSFP28 and 25 GE SFP28 slots—help keep security aligned with performance demands.
High Performance with Flexibility and Integrated Storage
- 34 Gbps NGFW throughput with SPU NP7/CP9 acceleration.
- 33 Gbps Threat Protection for enterprise applications and workloads.
- 6x 100GE QSFP28 / 40GE QSFP+ slots.
- 16x 25GE SFP28 / 10GE SFP+ / GE SFP slots.
- 2x 960GB SSD onboard storage for local logging.
- Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year).
Upgrade Your Network Security
Deploy FG-3001F-BDL-950-12 with FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 1 Year.
