[shortdesc] 6 dBi omnidirectional gain, dual-band 2.4 GHz and 5 GHz support, six N-Type connectors, indoor and outdoor rated, mast or wall mounting [/shortdesc]
[properties]
| Model |
FANT-06ABGN-0606-O-N |
| Product Type |
Wi-Fi Omni Antenna |
| Antenna Type |
Omnidirectional |
| Frequency Range |
2400–2500 MHz; 5150–5850 MHz |
| Gain |
6 dBi (2.4 GHz); 6 dBi (5 GHz) |
| Polarization |
Vertical |
| Connector Type |
6 × N-Type Male |
| Number of Leads |
6 Dual-Band Pigtails |
| Nominal Impedance |
50 Ohms |
| Max Power |
10 Watts |
| Environment |
Indoor / Outdoor |
| Mounting Method |
Mast and/or Wall Mounting |
| Dimensions |
5.9 × 7 in. (14.99 × 17.78 cm) |
| Weight |
3.15 lbs (1.43 kg) |
| Operating Temperature |
-40°F to +158°F (-40°C to +70°C) |
| Wind Load |
134 mph (216 km/h) |
[/properties]
[specifications]
| Bandwidth |
100 MHz (2.4 GHz); 100 MHz (5 GHz) |
| Vertical Beamwidth |
35° (2.4 GHz); 25° (5 GHz) |
| Horizontal Beamwidth |
360° (2.4 GHz & 5 GHz) |
| VSWR |
Typical ≤1.5 to 2.0 |
| Isolation |
≤ -15 dB |
| Lightning Protection |
Not DC Grounded |
| Mast Diameter Support |
1.37–1.97 in. (3.48–5.0 cm) |
[/specifications]
[accesories]
| Included |
FANT-06ABGN-0606-O-N Antenna; L-Bracket (included in the box) |
| Optional Mounting Hardware |
FAN-M22; FAP-BRKT-MNT-5 |
| Compatible Cables |
CABL-3FT-N-NType; CABL-3FT-N-RPSMA |
[/accesories]
Reliable Omnidirectional Coverage for Demanding Wi-Fi Deployments

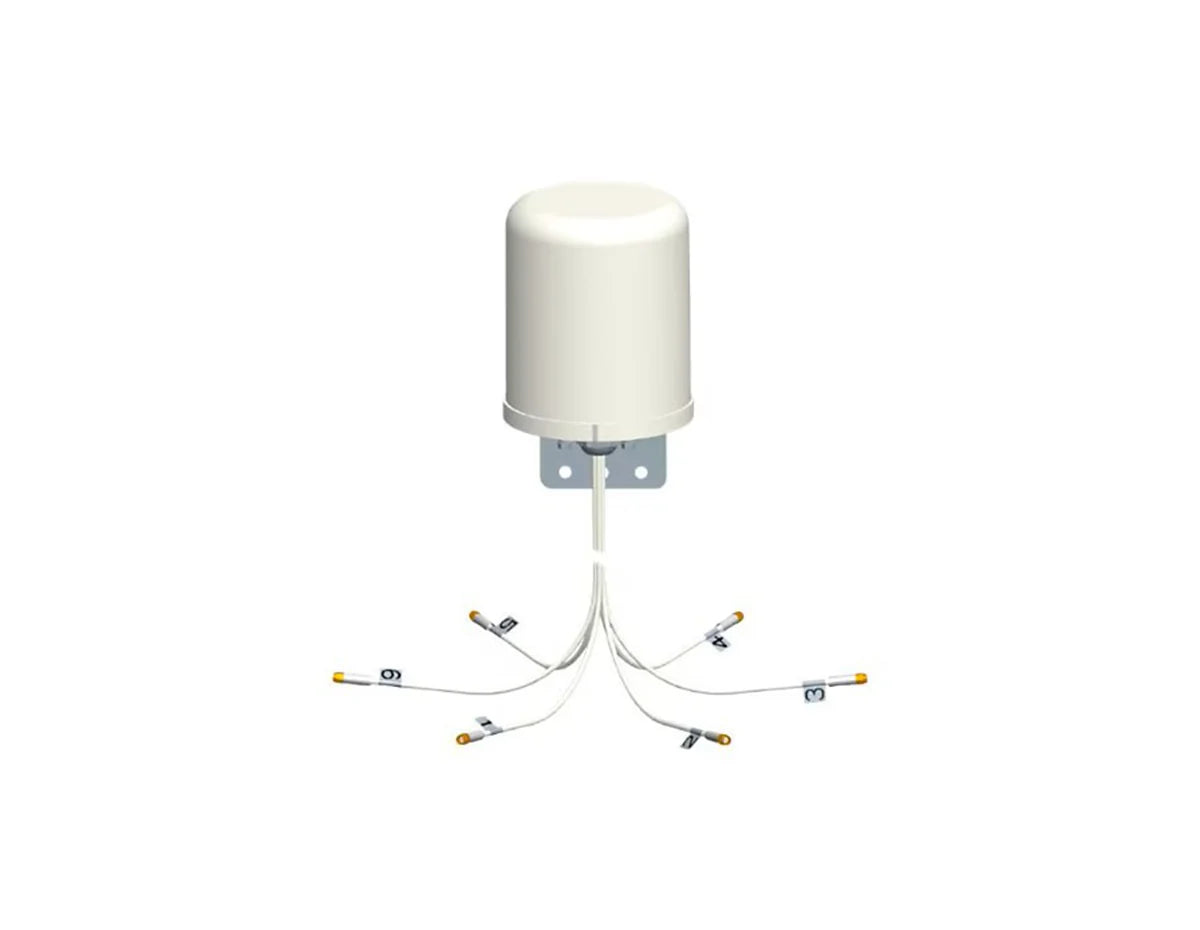

The Fortinet FANT-06ABGN-0606-O-N is a rugged dual-band omnidirectional antenna engineered to extend and stabilize wireless coverage in challenging environments. Designed for seamless compatibility with Fortinet FortiAP access points, this antenna delivers consistent 6 dBi gain across both 2.4 GHz and 5 GHz bands, making it ideal for high-density and mission-critical wireless networks.
Built for durability, the FANT-06ABGN-0606-O-N withstands exposure to moisture, dust, and harsh temperatures while maintaining predictable radiation patterns. With six integrated N-Type connectors and included mounting hardware, it enables flexible installation and optimized signal distribution for enterprise-grade Wi-Fi deployments.
Key Benefits & Features
-
6 dBi Omnidirectional Gain: Provides uniform 360-degree horizontal coverage for reliable signal distribution across large areas.
-
Dual-Band 2.4 GHz and 5 GHz Support: Optimized for modern Wi-Fi networks requiring balanced performance across both frequency bands.
-
Six N-Type Connectors: Supports multi-radio and MIMO configurations when paired with compatible Fortinet access points.
-
Industrial-Grade Construction: Designed to operate in indoor and outdoor environments exposed to dust, moisture, and temperature extremes.
-
Flexible Mounting Options: Includes L-bracket for secure mast or wall installation in diverse deployment scenarios.
Ideal Use Cases
- Outdoor enterprise Wi-Fi coverage expansion
- Warehouses and logistics facilities
- Manufacturing and industrial environments
- Large indoor spaces requiring even signal distribution
- Fortinet FortiAP deployments with external antenna support
Technical Specifications
-
Antenna Type: Omnidirectional
-
Frequency Range: 2400–2500 MHz and 5150–5875 MHz
-
Gain: 6 dBi
-
Polarization: Vertical
-
VSWR: Typical ≤1.5 to 2.0
-
Impedance: 50 ohms
-
Connectors: Six N-Type male connectors
-
Mounting: Mast or wall mount with included L-bracket
-
Operating Temperature: -40°C to +70°C
-
Environment: Indoor and outdoor rated
Extend Coverage with Confidence
Deploy enterprise-grade wireless performance with the Fortinet FANT-06ABGN-0606-O-N. Order today and build a stronger, more reliable Wi-Fi network.
