[shortdesc] Tri-band 2.4/5/6 GHz, 6 dBi gain, directional patch design, 4x RP-SMA connectors, indoor and outdoor rated [/shortdesc]
Precision Tri-Band Coverage for Modern Wi-Fi Deployments

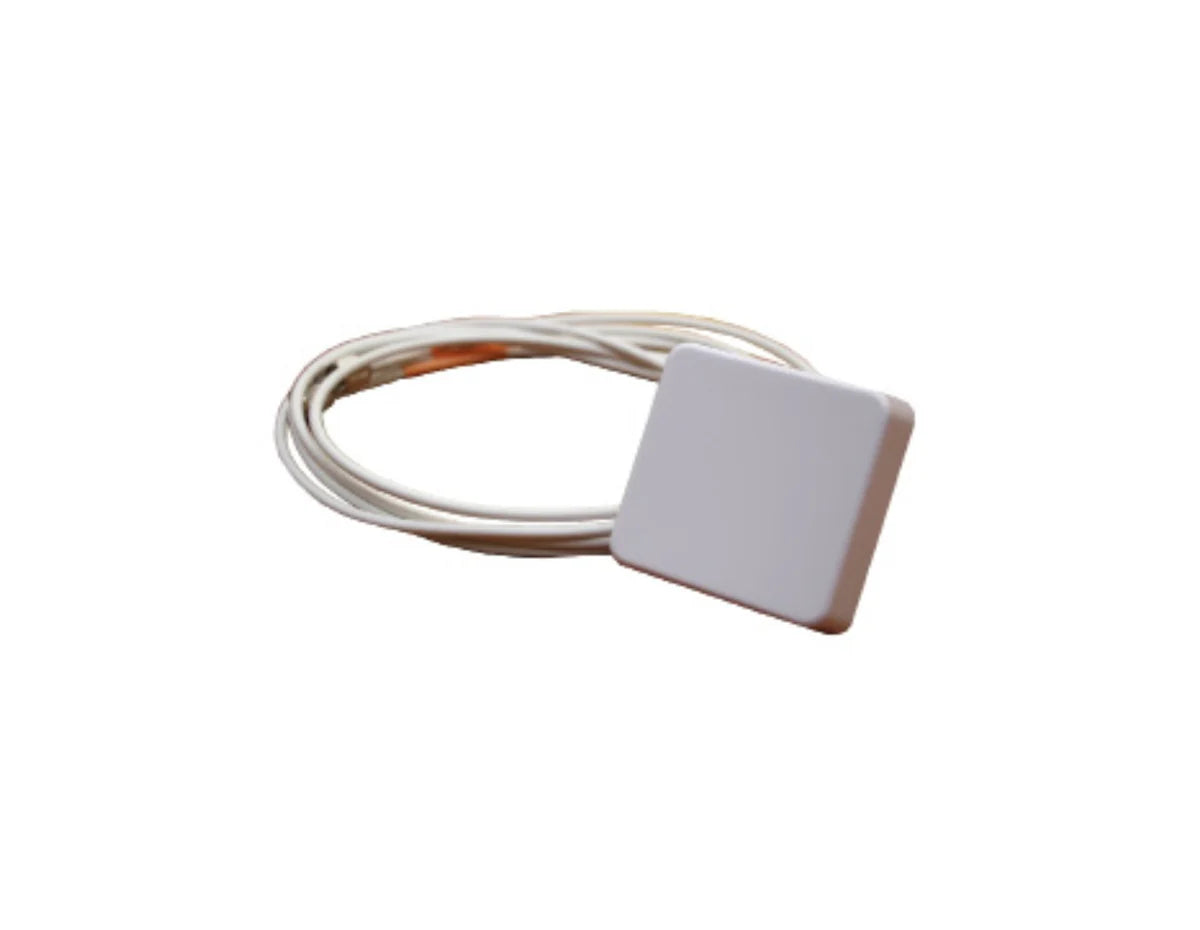

The Fortinet FANT-04BEAX-0606-P-R is a compact tri-band directional antenna engineered for Wi-Fi 6, Wi-Fi 6E, and Wi-Fi 7 access points. Designed to balance performance and aesthetics, this directional patch antenna delivers focused 6 dBi gain across 2.4 GHz, 5 GHz, and 6 GHz bands, making it ideal for high-performance enterprise wireless designs. With four RP-SMA connectors and a flexible articulating mount, it enables precise antenna alignment for optimized signal delivery.
Key Benefits & Features
-
Tri-Band Wi-Fi Support: Operates across 2.4 GHz, 5 GHz, and 6 GHz to fully support Wi-Fi 6E and Wi-Fi 7 access points.
-
6 dBi Directional Gain: Focused radiation pattern improves signal strength and reduces interference in targeted coverage zones.
-
Compact Patch Design: Small form factor blends into professional environments where aesthetics matter.
-
Flexible Articulating Mount: Medium-strength mount allows horizontal and vertical adjustment for precise positioning.
-
Indoor and Outdoor Rated: IP54-rated enclosure supports deployment in demanding enterprise and industrial environments.
Ideal Use Cases
- Wi-Fi 6E and Wi-Fi 7 enterprise access point deployments
- Targeted coverage in offices, classrooms, and conference areas
- Retail, hospitality, and customer-facing environments
- Warehouses and light industrial facilities
- Aesthetic-sensitive indoor or sheltered outdoor installations
Technical Specifications
-
Frequency Range: 2.4 GHz / 5 GHz / 6 GHz
-
Gain: 6 dBi (all bands)
-
Beamwidth: Vertical 80° / 50°, Horizontal 80° / 120°
-
Number of Ports: 4
-
Connector Type: RP-SMA Male
-
VSWR: ≤ 2.0
-
Ingress Protection: IP54
-
Operating Temperature: -40°C to +70°C
Upgrade Your Wi-Fi Coverage with Confidence
Choose the Fortinet FANT-04BEAX-0606-P-R for precise tri-band performance and professional-grade reliability. Order today.
