[shortdesc]2.4 and 5 GHz dual band, omni-directional radiation, 2.5/4 dBi gain, 4 RP-SMA connectors, compact micro form factor, indoor and outdoor use[/shortdesc]
[properties]
| Model |
FANT-04ABGN-2504-O-R |
| Product Type |
Wireless Omni Micro Antenna |
| Antenna Pattern |
Omni-directional |
| Frequency Range |
2400–2500 MHz; 4900–5850 MHz |
| Gain |
2.5 dBi (2.4 GHz); 4 dBi (5 GHz) |
| Polarization |
Vertical |
| Connectors |
4 × RP-SMA Male |
| Pigtail Length |
36 in. (91.44 cm) with connector |
| Nominal Impedance |
50 ohms |
| Maximum Power |
50 Watts |
| Mounting Method |
Surface Mount |
| Environment |
Indoor / Outdoor |
| Operating Temperature |
-40°C to +70°C (-40°F to +158°F) |
| Dimensions |
3.54 × 1.57 in. (9.0 × 4.0 cm) |
| Weight |
0.27 lbs (124.7 g) |
[/properties]
[specifications]
| Bandwidth |
100 MHz (2.4 GHz); 950 MHz (5 GHz) |
| Horizontal Beamwidth |
360° (2.4 GHz); 360° (5 GHz) |
| VSWR |
≤ 2 |
| Radiation Pattern |
Omnidirectional |
[/specifications]
Discreet Omni Coverage for Space-Conscious Wi-Fi Deployments

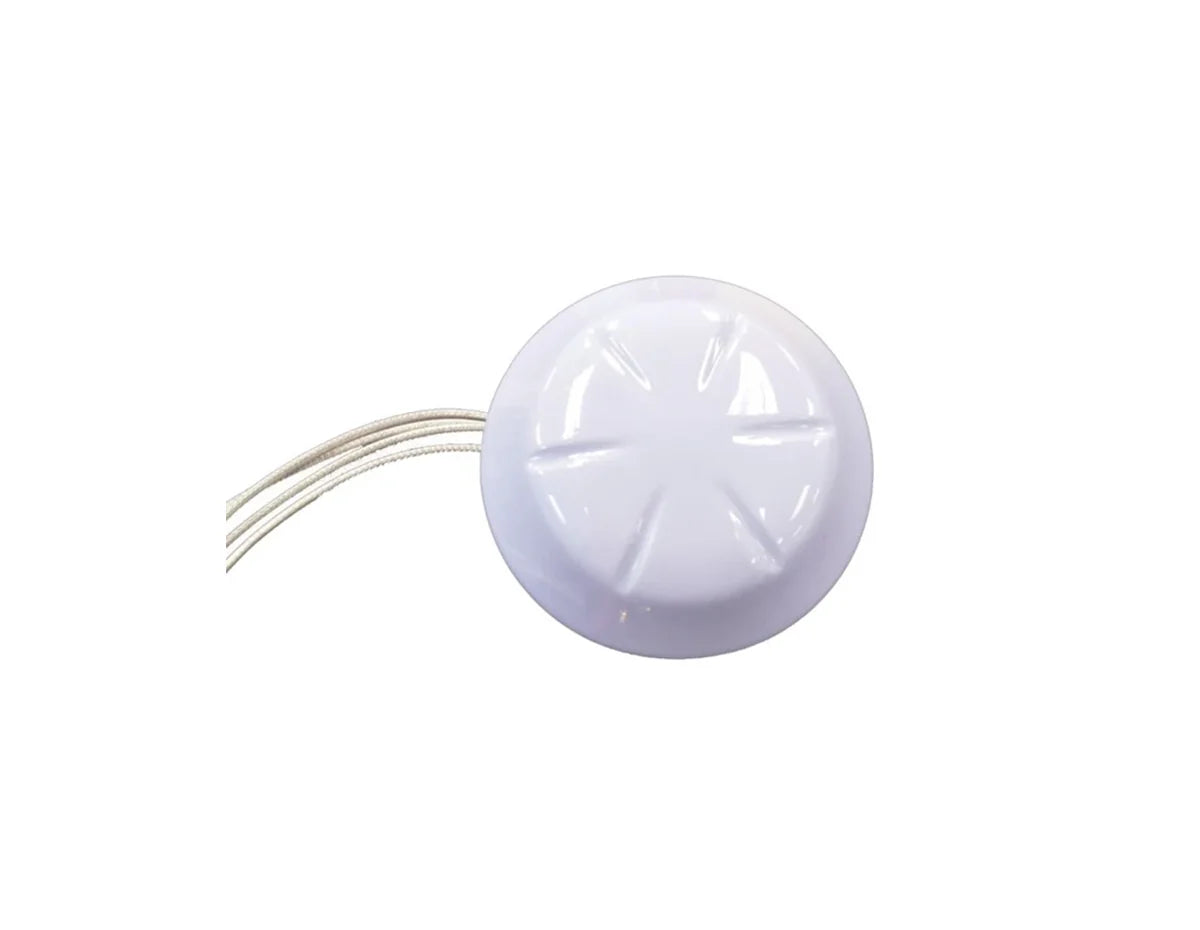

The Fortinet FANT-04ABGN-2504-O-R is a low-profile dual-band omni-directional Wi-Fi antenna designed for installations where appearance, size, and reliable coverage matter. Engineered for seamless integration with Fortinet access points, this micro antenna delivers consistent 360-degree signal distribution across both 2.4 GHz and 5 GHz bands.
With four integrated dual-band pigtails and RP-SMA male connectors, the antenna supports modern multi-radio FortiAP deployments while maintaining a clean, unobtrusive footprint. Its durable enclosure and wide operating temperature range allow dependable performance in both indoor and outdoor environments.
Key Benefits & Features
-
Dual-Band Wi-Fi Support: Operates across 2400–2500 MHz and 4900–5850 MHz to support mixed 2.4 GHz and 5 GHz wireless networks.
-
Omni-Directional Radiation: 360-degree horizontal beamwidth ensures even signal distribution for consistent client connectivity.
-
Compact Micro Design: Aesthetically pleasing form factor ideal for offices, vehicles, and visually sensitive installations.
-
Four RP-SMA Leads: Supports multi-chain MIMO access points with integrated 36-inch pigtail cables.
-
Indoor and Outdoor Rated: Built to operate reliably across a wide temperature range in diverse environments.
Ideal Use Cases
- Enterprise indoor Wi-Fi deployments with aesthetic requirements
- Vehicle-based wireless communication systems
- Fleet management and presence detection solutions
- Retail, office, and hospitality wireless networks
- Compact Fortinet FortiAP installations
Technical Specifications
-
Frequency Range: 2400–2500 MHz and 4900–5850 MHz
-
Antenna Gain: 2.5 dBi at 2.4 GHz, 4 dBi at 5 GHz
-
Radiation Pattern: Omni-directional, 360° horizontal beamwidth
-
Polarization: Vertical
-
Connectors: 4 × RP-SMA male
-
Pigtail Length: 36 inches (91.44 cm)
-
Form Factor: Surface mount micro antenna
-
Operating Temperature: -40°C to +70°C
-
Maximum Input Power: 50 W
Upgrade Your Wi-Fi Coverage with Precision
Choose the Fortinet FANT-04ABGN-2504-O-R for reliable omni-directional coverage in compact, professional deployments. Order today.
