[shortdesc] 2.4/5GHz dual-band operation, 14 dBi high-gain patch design, 35° directional beamwidth, four N-Type connectors, indoor and outdoor rated [/shortdesc]
[properties]
| Model |
FANT-04ABGN-1414-P-N |
| Product Type |
Wireless Patch Antenna |
| Antenna Type |
Directional Patch |
| Frequency Bands |
2.4 GHz / 5 GHz |
| Operating Frequency Range |
2400–2500 MHz; 5150–5850 MHz |
| Antenna Gain |
14 dBi (2.4 GHz); 14 dBi (5 GHz) |
| Polarization |
Vertical / Linear |
| Connector Type |
N-Type Female |
| Number of Ports |
4 |
| Nominal Impedance |
50 Ohms |
| Maximum Input Power |
50 W |
| Environment |
Indoor / Outdoor |
| Mounting Method |
Mast Mounting |
| Dimensions (H × W × D) |
38 × 38 × 3.3 cm (14.96 × 14.96 × 1.3 in) |
| Weight |
3.4 kg (7.5 lb) |
| Operating Temperature |
−30 °C to +70 °C (−22 °F to +158 °F) |
[/properties]
[specifications]
| Bandwidth |
100 MHz (2.4 GHz); 700 MHz (5 GHz) |
| Vertical Beamwidth |
35° (2.4 GHz); 35° (5 GHz) |
| Horizontal Beamwidth |
35° (2.4 GHz); 35° (5 GHz) |
| VSWR |
≤ 2 |
| Isolation |
28 dB |
| Pigtail Length |
Need to order separately |
| Pole Diameter Compatibility |
5 cm to 11.94 cm (1.97 in to 4.7 in) |
[/specifications]
[accesories]
| Included |
Industrial Articulating Mount |
| Optional Cables |
CABL-3FT-N-NType; CABL-3FT-N-RPSMA |
[/accesories]
High-Precision Directional Coverage for Demanding Wi-Fi Deployments

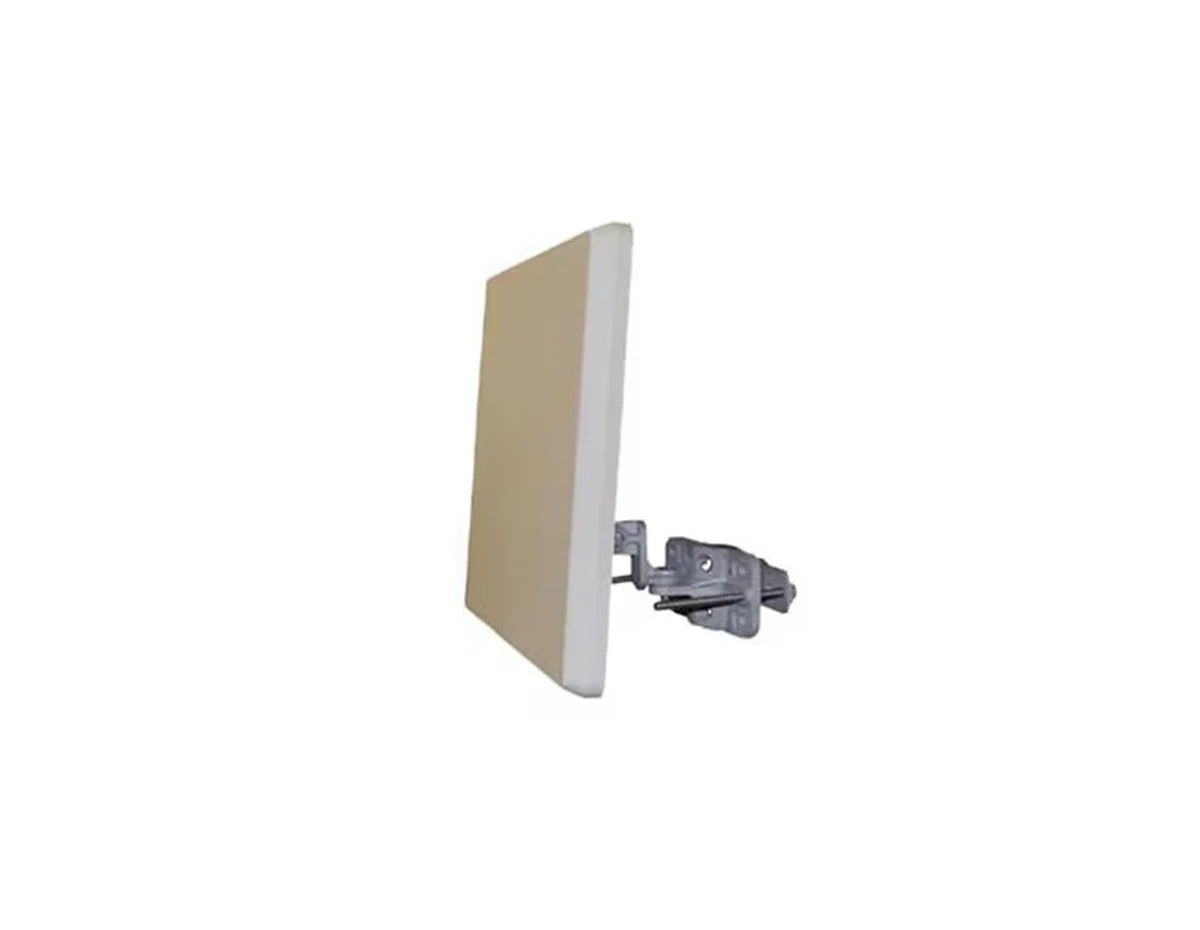

The Fortinet FANT-04ABGN-1414-P-N is a high-density, dual-band Wi-Fi patch antenna engineered for environments where controlled coverage and interference reduction are critical. Designed to operate across both 2.4 GHz and 5 GHz bands, this antenna delivers a powerful 14 dBi gain with a focused 35-degree beamwidth, making it ideal for targeted wireless coverage.
Built for compatibility with Fortinet FortiAP access points and other enterprise Wi-Fi platforms using N-Type connectors, this antenna enables precise RF planning in challenging indoor and outdoor environments such as warehouses, factories, and large industrial spaces.
Key Benefits & Features
-
14 dBi High-Gain Performance: Extends wireless reach while maintaining signal integrity in dense or reflective environments.
-
Narrow 35° Beamwidth: Minimizes co-channel interference and enables accurate directional coverage planning.
-
Dual-Band 2.4/5 GHz Support: Optimized for modern enterprise Wi-Fi networks requiring flexibility and performance.
-
N-Type Female Connectors: Four rear-mounted connectors support professional-grade RF cabling and installations.
-
Industrial-Grade Construction: Rated for indoor and outdoor use with wide operating temperature tolerance.
Ideal Use Cases
- Warehouse and logistics facility Wi-Fi coverage
- Manufacturing floors and industrial environments
- High-density enterprise wireless deployments
- Targeted aisle or zone-based coverage designs
- Outdoor point-to-area Wi-Fi extensions
Technical Specifications
-
Frequency Range: 2400–2500 MHz and 5150–5850 MHz
-
Antenna Gain: 14 dBi (2.4 GHz and 5 GHz)
-
Beamwidth: 35° horizontal and vertical
-
Polarization: Vertical / Linear
-
Impedance: 50 Ohms
-
Maximum Input Power: 50 W
-
Connectors: Four N-Type female connectors
-
Mounting Method: Mast mounting
-
Dimensions: 14.96 × 14.96 × 1.3 inches
-
Operating Temperature: -30°C to +70°C
Upgrade Your Wireless Coverage with Confidence
Engineer precise, high-performance Wi-Fi coverage with the Fortinet FANT-04ABGN-1414-P-N. Order today and optimize your wireless deployment with enterprise-grade accuracy.
