Description

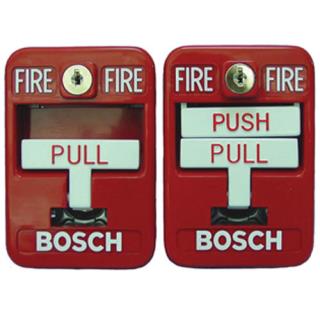

The Bosch FMM-7045 Multiplex Addressable Manual Station is a UL-listed fire alarm initiating device designed for use with Bosch multiplex fire alarm systems. It provides reliable single-action pull activation for emergency evacuation, with optional dual-action functionality in the FMM-7045-D model. Compact and durable, the FMM-7045 offers easy installation, ADA compliance, and long-term dependability for commercial fire alarm applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Bosch Security |
| Category |
Fire Safety |
| Part Number |
FMM-7045 |
| Subcategory |
Addressable Manual Stations |
| Series |
Bosch Multiplex Devices |
| Device Type |
Addressable manual pull station |
| Activation Type |
Single-action pull (dual-action option: FMM-7045-D) |
| Reset Method |
Key-lock reset |
| Address Range |
Multiplex bus addresses 9–255 |
| Current Consumption |
0.55 mA |
| Nominal Voltage |
12 VDC |
| Construction |
Steel housing with corrosion-resistant terminals |
| Color |
Red with white pull lever |
| Optional Features |
Scored acrylic breakrod, dual-action push lever (-D model) |
| Dimensions |
82 × 95 × 12 mm |
| Operating Temperature |
0°C to 49°C (32°F to 120°F) |
| Usage |
Indoor installations |
| Compliance |
UL Listed; ADA compliant |
| Production Status |
Active |
| Weight |
~1 lb (approx.) |
Information About FMM‑7045

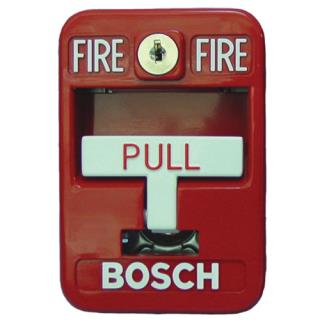

The FMM-7045 is part of Bosch’s addressable initiating device line for use with the D7039 Multiplex Expansion Module and FPD-7024 or D7024 FACPs. Each station occupies one address within the multiplex bus (range 9–255), allowing precise location reporting during alarms. The station features a white pull-down lever that latches in the activated position, ensuring clear identification of alarm activation. Reset is performed with the provided key lock. Optional scored acrylic breakrods, non-corroding terminals, and a low-profile steel housing with rounded edges enhance both usability and durability.
Key Features:
- Addressable Multiplex Device: Occupies one address on the D7039 multiplex bus (range 9–255).
- Single or Dual Action: Standard pull-down lever (FMM-7045) or dual-action push-and-pull lever (FMM-7045-D).
- Key-Lock Reset: Activated lever can only be restored using the supplied key.
- ADA Compliant: Meets accessibility requirements for manual fire alarm stations.
- Durable Construction: Steel housing with corrosion-resistant finishes and components.
- Easy Addressing: Rotary switch addressing simplifies setup.
- Optional Breakrod: Replaceable scored acrylic rod provides tamper-resistant alarm activation.
- Low Current Draw: Efficient design ensures minimal system load.
The FMM-7045 delivers the reliability and precision required for addressable fire alarm initiating devices in Bosch fire safety systems.
