FMC-10-100-SC20A-DC48 Fast Ethernet single strand BiDi fiber media converter, SC 20Km A type, DC48V embedded PS

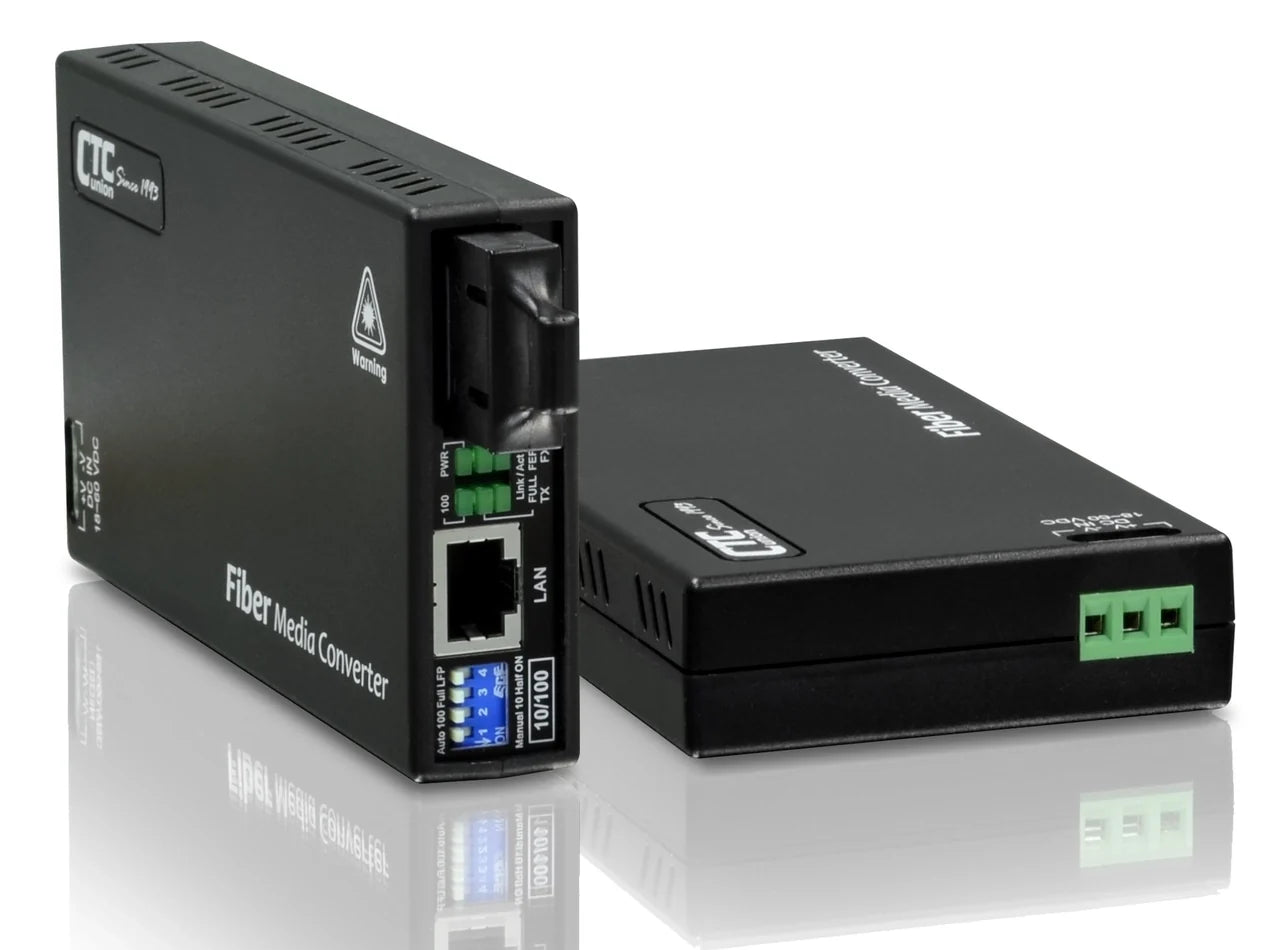

Note: Only one converter is sold. Photo is showing front and rear of the unit for a better understanding of the DC48V power input.
Product description
FMC-10-100 WDM series is the newest family of Fast Ethernet fiber optic media converters carried by Datainterfaces.com. The FMC media converters are noticed for their simplicity: no management features, guaranteed reliability and extremely affordable cost. Units are available with single SC type fiber optic connector, using a BiDirectional optical module. ST or FC optical connectors are available on demand.
FMC-10-100-SC20A-DC48 is a single strand WDM, Bi-Directional fiber media converter with Tx:1310nm/Rx:1550nm, operating on a 20Km distance, with auto-negotiation 10/100 and MDI/MDI-X features for the Fast Ethernet RJ45 UTP interface. The A ending model must always be matched with a complementary B type converter for proper operation.Even without the SNMP management support, FMC series support Link-Fault-Pass through function (LFP - an extremely useful feature to easily debug faulty fiber links), Far-End-Fault function (FEF), acts on a Store-and-Forward switching platform and can carry Jumbo data packets up to 9K size. The FMC-10-100-SC20A-DC48 is a standalone unit that has embedded DC 36-72V input power supply.
Product Specification Sheet
Product Installation Manual
Technical specifications
| Interfaces: |
RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and SC, 100Base-FX compliant |
| Operating wavelength: |
Tx:1310nm / Rx:1550nm single strand BiDirectional |
| Ethernet interface: |
Supports 10/100Base-T/TX, Full, Half duplex n-way (Auto-Negotiation).Supports Full, Half duplex, 10/100 speed manual selections.Transmission Packet Rate for 10/100Base-T/TX : 14880 per second/148800 per second.Copper TP cable 4 pair Cat. 3 or 5 UTP |
| Features: |
FEF (Far-End-Fault) and LFP (Link-Fault-Pass through) |
| Operating distance: |
20Km on 9/125um fiber |
| Optical connector: |
single SC type(ST or FC available on demand) |
| Front LEDs: |
PWR, LLF, Fiber Link, TP Link, Duplex, Speed |
| Power: |
embedded DC48V power supply, 3 pin block connector |
| Temperature: |
0~50°C (Operating); 0~70°C (Storage) |
| Humidity: |
20-80% non condensing (Operating); 0-90% (Storage) |
| Consumption: |
less than 4W |
| Dimensions(WxDxH): |
73mm x 108mm x 23mm |
| Weight: |
160g (without AC adapter) |
| Compliance: |
FCC part 15, Subpart B, Class A,ANSI C63.4:2003CE EN55022:2006, Class AEN55024:1998+A1:2001+A2:2003LVD: EN 60 950-1:2001 |
| MTBF: |
65,000 hours |
Fiber power budget according to available single strand BiDirectional models
| Model |
Distance |
Lambda |
Min. Output (dBm) |
Sensitivity (dBm) |
Power Budget (dB) |
| FMC-10-100-SC20A |
20Km |
Tx:1310nm Rx:1550nm |
-15 |
-32 |
17 |
| FMC-10-100-SC20B |
20Km |
Tx:1550nm Rx:1310nm |
-18 |
-32 |
14 |
| FMC-10-100-SC40A |
40Km |
Tx:1310nm Rx:1550nm |
-7 |
-32 |
25 |
| FMC-10-100-SC40B |
40Km |
Tx:1550nm Rx:1310nm |
-8 |
-32 |
24 |
| FMC-10-100-SC60A |
60Km |
Tx:1310nm Rx:1550nm |
-5 |
-34 |
29 |
| FMC-10-100-SC60B |
60Km |
Tx:1550nm Rx:1310nm |
-5 |
-34 |
29 |
| FMC-10-100-SC80A |
80Km |
Tx:1310nm Rx:1550nm |
-2 |
-34 |
32 |
| FMC-10-100-SC80B |
80Km |
Tx:1550nm Rx:1310nm |
-2 |
-34 |
32 |
