Overview

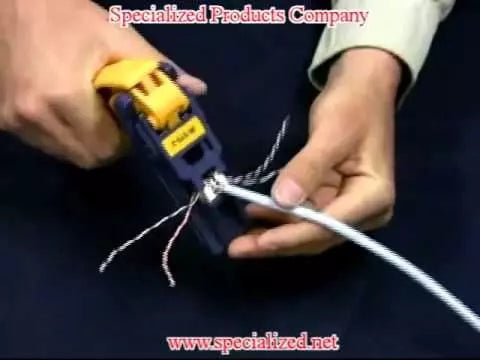

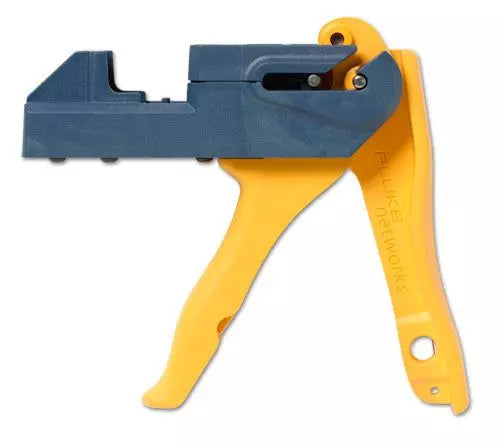

The Fluke Networks JR-LEV-1 JackRapid is a specialized cable termination tool engineered for precise installation of Leviton 41106, 41108, and 5G108 modular jacks. By utilizing a unique squeeze-handle mechanism, the tool seats and terminates all conductors simultaneously, facilitating rapid deployment in high-density or restricted cabling environments.
Key Features
-
Integrated Termination Blade: Automatically trims excess wire during the termination cycle, removing the need for a secondary manual trimming step.
-
Single-Action Operation: The handle squeeze design performs both seating and termination functions in one motion, reducing repetitive hand strain for the operator.
-
Modular Blade System: Features a replaceable blade head design, allowing the tool to be adapted for different jack types beyond the standard Leviton compatibility.
-
Compact Ergonomics: Dimensions of 5.5" x 5.5" x 1.75" allow for easier navigation in tight patch panels and wall-mounted termination boxes.
Technical Specifications
| Manufacturer |
Fluke Networks |
| Model Number |
JR-LEV-1 |
| Part Number |
044X176 |
| Compatibility |
Leviton 41106, 41108, and 5G108 |
| Termination Method |
Manual handle-actuated simultaneous seating and trimming |
| Physical Dimensions |
5.5" x 5.5" x 1.75" |
| Replaceable Components |
Blade head (JR-Series compatible) |
