[shortdesc]
- The Fluke 771 Milliamp Process Clamp Meter offers precise 4-20 mA signal measurements with 0.2% accuracy, a dual backlit display, and a detachable clamp, ideal for industrial use
[/shortdesc]
[properties]
| Product Name |
Fluke 771 Milliamp Process Clamp Meter |
| Product Description |
The Fluke 771 Milliamp Process Clamp Meter offers precise 4-20 mA signal measurements with 0.2% accuracy, a dual backlit display, and a detachable clamp, ideal for industrial use. |
| Type |
Process Clamp Meter |
| Compatibility |
Control system analog I/O |
| Media Type |
4-20 mA signals |
| Color |
Yellow/Gray |
| Dimensions |
59 mm x 38 mm x 212 mm (2.32 in x 1.5 in x 8.35 in) |
| Connectors |
Detachable clamp with extension cable |
| Certifications |
CE, CSA, FCC |
[/properties]
[specifications]
| Measurement Range |
-20.99 mA to +20.99 mA with 0.2% accuracy; ±99.9 mA for older systems |
| Resolution |
0.01 mA |
| Operating Temperature |
-10 °C to 55 °C |
| Storage Temperature |
-25 °C to 70 °C |
| Humidity |
<95% at <30 °C, <75% at 30-55 °C |
| Altitude |
0 to 2000 meters |
| IP Rating |
IP 40 |
| Battery Life |
40 hours typical (2 AA batteries) |
| Weight |
260 g (9.1 oz) |
| Display |
Dual backlit display showing mA measurement and percentage of 4-20 mA span |
| Features |
Measurement spotlight, detachable clamp with extension cable, automatic battery saving functions |
[/specifications]

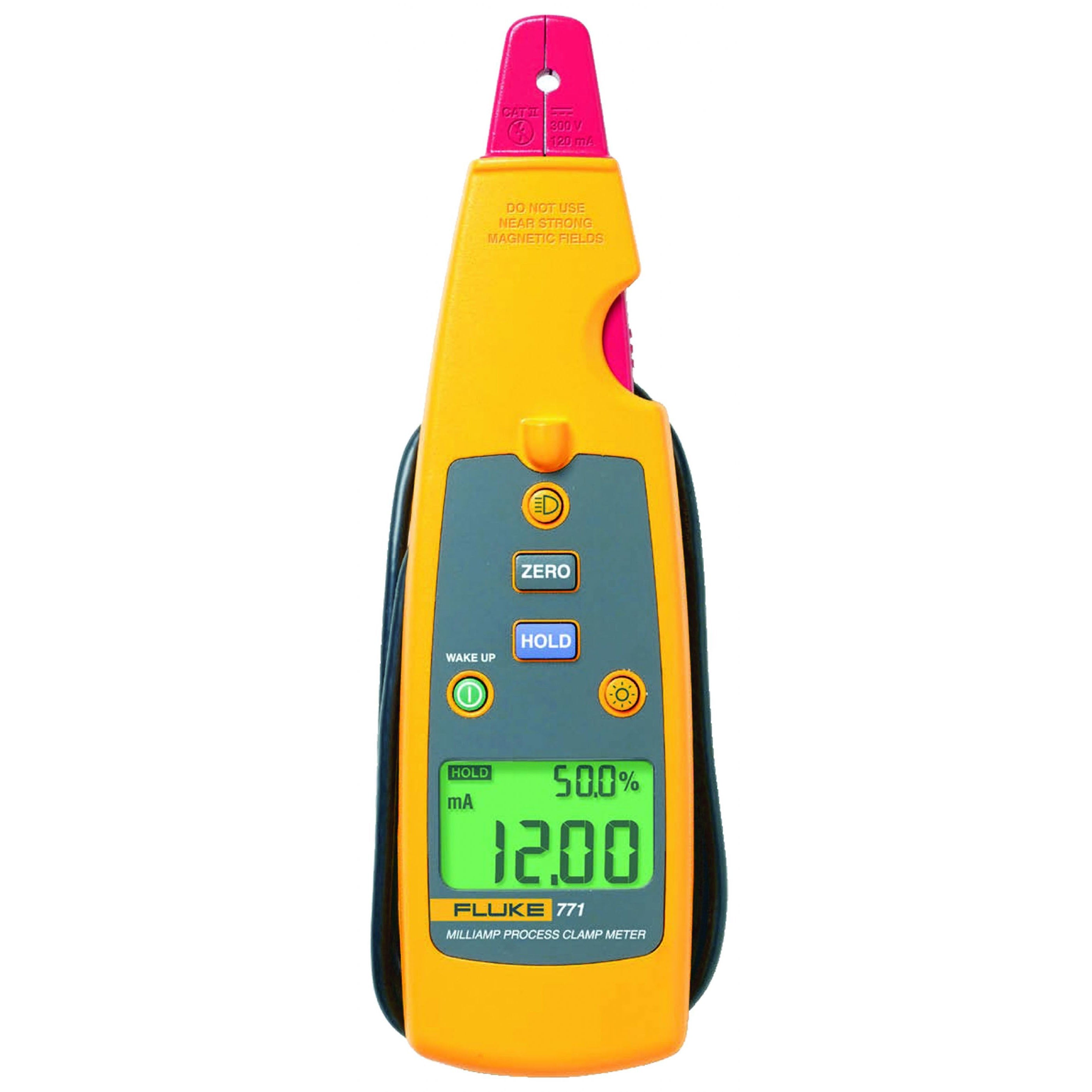

Fluke 771 Milliamp Process Clamp Meter
The Fluke 771 Milliamp Process Clamp Meter is an essential tool for measuring and troubleshooting 4-20 mA signals in control system analog I/O without breaking the loop. With best-in-class 0.2% accuracy, a dual backlit display, and a detachable clamp, the 771 offers precision and flexibility, making it ideal for industrial and process applications where mA measurements are crucial.
Key Features:
-
Non-Invasive Measurement: Measures 4-20 mA output signals without breaking the loop, saving time and increasing efficiency.
-
High Accuracy: Delivers 0.2% accuracy with a resolution of 0.01 mA, ideal for precise measurements.
-
Dual Backlit Display: Shows both mA measurement and percentage of 4-20 mA span for quick data interpretation.
-
Measurement Spotlight: Illuminates hard-to-see wires in dark enclosures, enhancing visibility in challenging environments.
-
Detachable Clamp: Includes an extension cable for measurements in tight locations.
-
Automatic Battery Saving: Features automatic power-off, backlight, and spotlight timeout options to preserve battery life.
Technical Specifications:
-
Measurement Range: -20.99 mA to +20.99 mA with 0.2% accuracy; ±99.9 mA for older systems
-
Resolution: 0.01 mA
-
Operating Temperature: -10 °C to 55 °C
-
Storage Temperature: -25 °C to 70 °C
-
Humidity: <95% at <30 °C, <75% at 30-55 °C
-
Altitude: 0 to 2000 meters
-
IP Rating: IP 40
-
Battery Life: 40 hours typical (2 AA batteries)
-
Dimensions: 59 mm x 38 mm x 212 mm (2.32 in x 1.5 in x 8.35 in)
-
Weight: 260 g (9.1 oz)
Ideal For:
- Technicians and engineers measuring 4-20 mA signals in process control systems.
- Industrial environments where accurate, non-invasive mA measurements are required.
