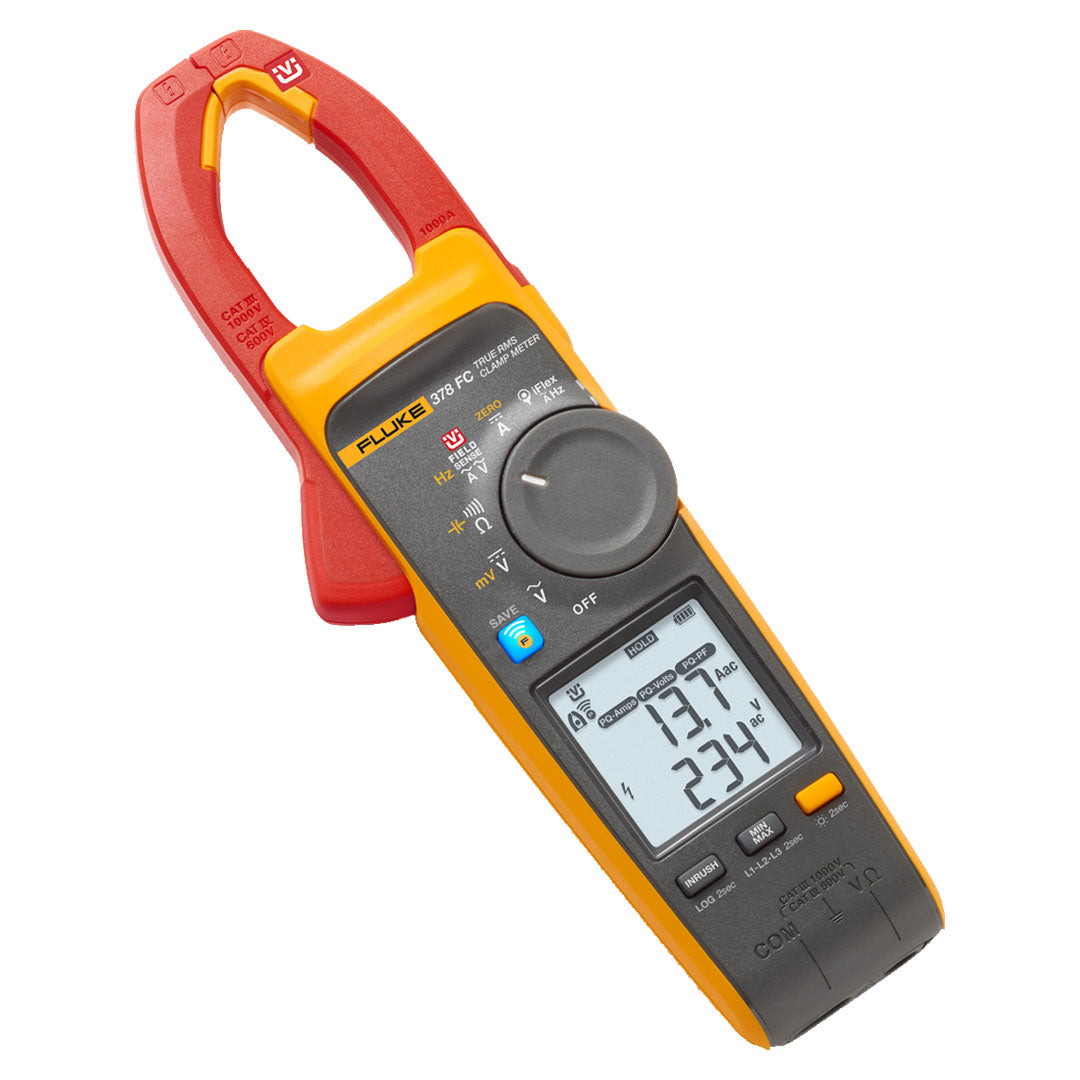

FLUKE-378-FC True-RMS Clamp Meter with iFlex
The Fluke 378 FC delivers fast and safe voltage and current measurements without making contact with live wires, thanks to FieldSense™ technology. It supports AC/DC voltage up to 1000 V and current up to 2500 A with the iFlex® flexible current probe, allowing enhanced access in tight spaces. Designed for electricians and maintenance professionals, this clamp meter also provides a visual power quality indicator to identify voltage, current, or power anomalies, streamlining diagnostics in three-phase systems. Fully compatible with the Fluke Connect® app, it enables remote logging and data sharing, improving field efficiency and safety.
Key Features:
-
FieldSense™ Technology: Measure voltage and current without test leads, enabling safe, contactless operation
-
iFlex Flexible Probe: Includes iFlex® probe to measure up to 2500 A AC current in tight or crowded panels
-
True-RMS Accuracy: Provides precise readings on non-linear signals in industrial environments
-
Power Quality Indicator: LED-based alerts for quick diagnostics of faults in the power system
-
Dual Display: Simultaneous voltage and current readouts for comprehensive measurements
-
Fluke Connect® Compatible: Wireless data logging, storage, and team collaboration via mobile devices
-
CAT Ratings: Safety rated for CAT III 1000 V / CAT IV 600 V applications
Technical Specifications:
-
AC Current (Clamp Jaw): Up to 999.9 A, accuracy ±2% ±5 digits
-
AC Current (iFlex): Up to 2500 A, accuracy ±3% ±5 digits
-
DC Current: Up to 999.9 A, accuracy ±2% ±10 digits
-
AC/DC Voltage (Test Leads): Up to 1000 V, accuracy ±1% ±5 digits (AC), ±1% ±10 digits (DC)
-
Resistance: Up to 60 kΩ, accuracy ±1% ±5 digits
-
Capacitance: Up to 1000 µF, accuracy ±1% ±4 digits
-
Frequency (Jaw & iFlex): 45 Hz – 66 Hz (jaw), 5 Hz – 500 Hz (iFlex)
-
Display: Dual-readout digital LCD
-
Jaw Opening: 34 mm; iFlex cable length: 1.8 m
-
Ingress Protection: IP30 (jaw closed)
-
Battery Life: Approx. 200 hours with 2x AA batteries
-
Dimensions: 274 x 86 x 47 mm; Weight: 463 g
-
Wireless Frequency: 2405–2480 MHz (BLE)
-
Safety Compliance: IEC 61010 CAT III 1000 V / CAT IV 600 V
