Description

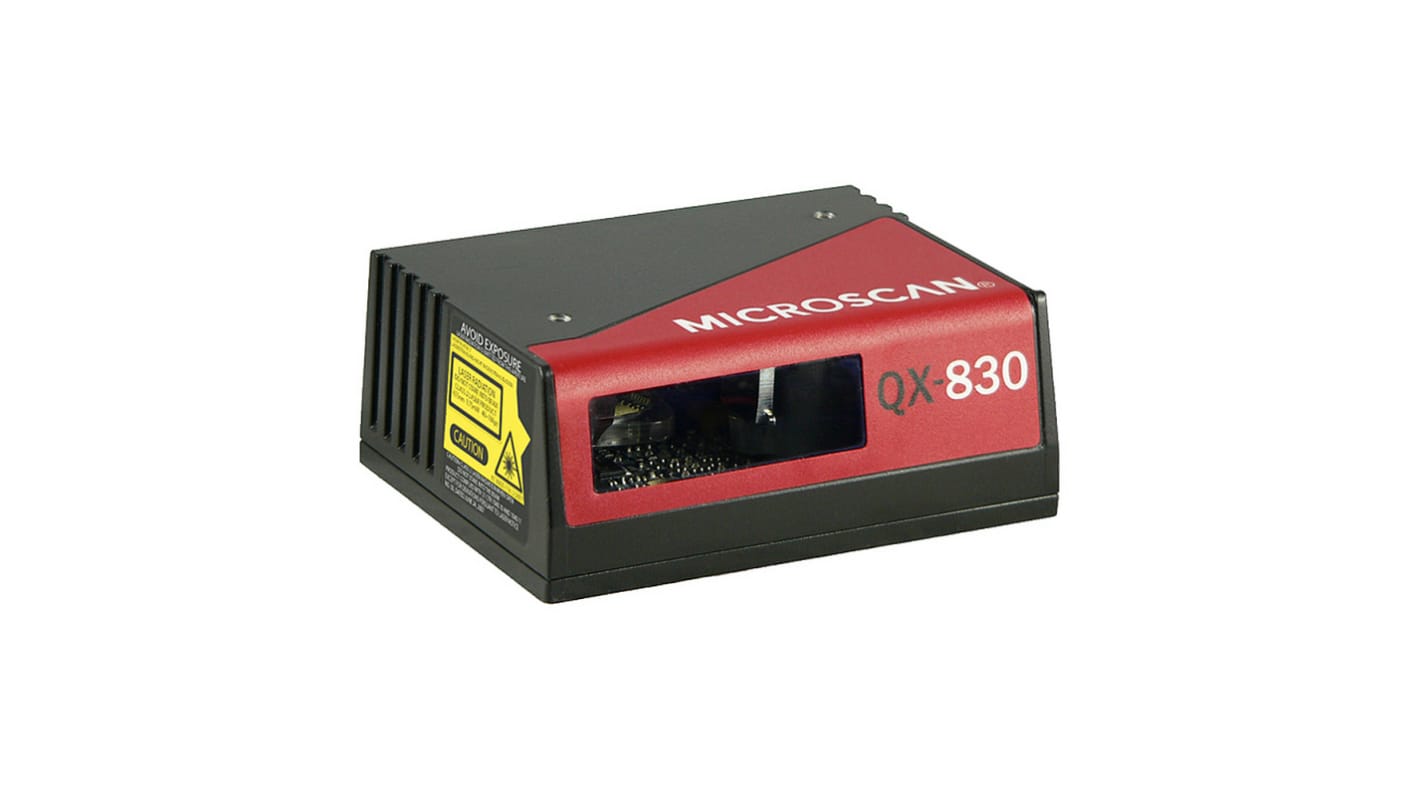

The FIS-0830-1002G is a compact industrial laser scanner designed for high-speed 1D barcode decoding. It ensures dependable performance in demanding environments with scan rates ranging from 300 to 1400 scans per second.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
FIS-0830-1002G |
| Subcategory |
Bar Code Scanner Industrial |
| Series |
QX-830 |
| Scan Rate |
300 to 1400 scans/sec |
| Read Range |
1 to 30 inches (25 to 762 mm) |
| Resolution |
Based on lens configuration (low/medium/high) |
| Interface |
RS-232/422/485, Optional Embedded Ethernet |
| Enclosure Rating |
IP54 |
| Power Supply |
10–28 VDC |
| Power Consumption |
7.5 W max |
| Operating Temperature |
-40°C to 75°C |
| Humidity |
10% to 90% RH (non-condensing) |
| Safety Class |
Class 2 Laser (IEC 60825-1) |
| Mounting |
Panel, DIN Rail, Machine Frame |
| Communication Protocols |
Point-to-Point, RS protocols, Ethernet options |
| Material |
Die-cast aluminum, sealed housing |
| Dimensions |
68 x 88 x 35 mm |
| Weight |
0.34 kg (0.75 lbs) |
Information About FIS-0830-1002G
The FIS-0830-1002G is part of Omron Microscan’s QX-830 series and combines a rugged design with advanced X-Mode Technology for reading poor-quality, damaged, or misaligned barcodes. It supports optional embedded Ethernet TCP/IP and EtherNet/IP protocols and features M12 connectivity, IP54 enclosure, and flexible mounting for integration into industrial automation setups. This model includes the ESP software setup program, visible LED performance indicators, and supports a wide read range from 1 to 30 inches. With a compact housing and low power requirement of just 7.5W, the FIS-0830-1002G is engineered for applications including packaging, electronics production, and conveyor-based identification.
Key Features:
- Aggressive Scanning Speed: Performs up to 1,400 scans per second with advanced decoding capability for low-contrast and damaged codes.
- Flexible Read Range: Supports short, medium, and high-density scan windows with ranges from 38 mm to 762 mm.
- Robust Environmental Design: IP54-rated housing with operating temperatures from -40 to +75°C.
- Interface Versatility: Includes RS-232/422/485 serial and optional embedded Ethernet.
- Simple Setup and Feedback: EZ Button and visible indicators allow for quick configuration and performance validation.
- Compact and Lightweight: Measures 68 mm in depth, 88 mm in width, and 35 mm in height, weighing 0.34 kg (0.75 lbs).
- Multiple Protocols Supported: Point-to-Point, Point-to-Point with RTS/CTS, Point-to-Point with XON/XOFF, Multidrop, and others.
- Laser Safety and Reliability: Equipped with a visible 655 nm Class 2 laser with high focus precision and Class 1 EN standard safety rating.
- Power Efficiency: Operates on 10–28 VDC with a maximum power requirement of 7.5W.
- Versatile Mounting Options: DIN rail, machine frame, or enclosure-compatible installation.
The FIS-0830-1002G provides high scan accuracy in compact form, making it perfect for embedded industrial use. The combination of X-Mode decoding and IP54 protection ensures excellent performance in varied automation environments.
