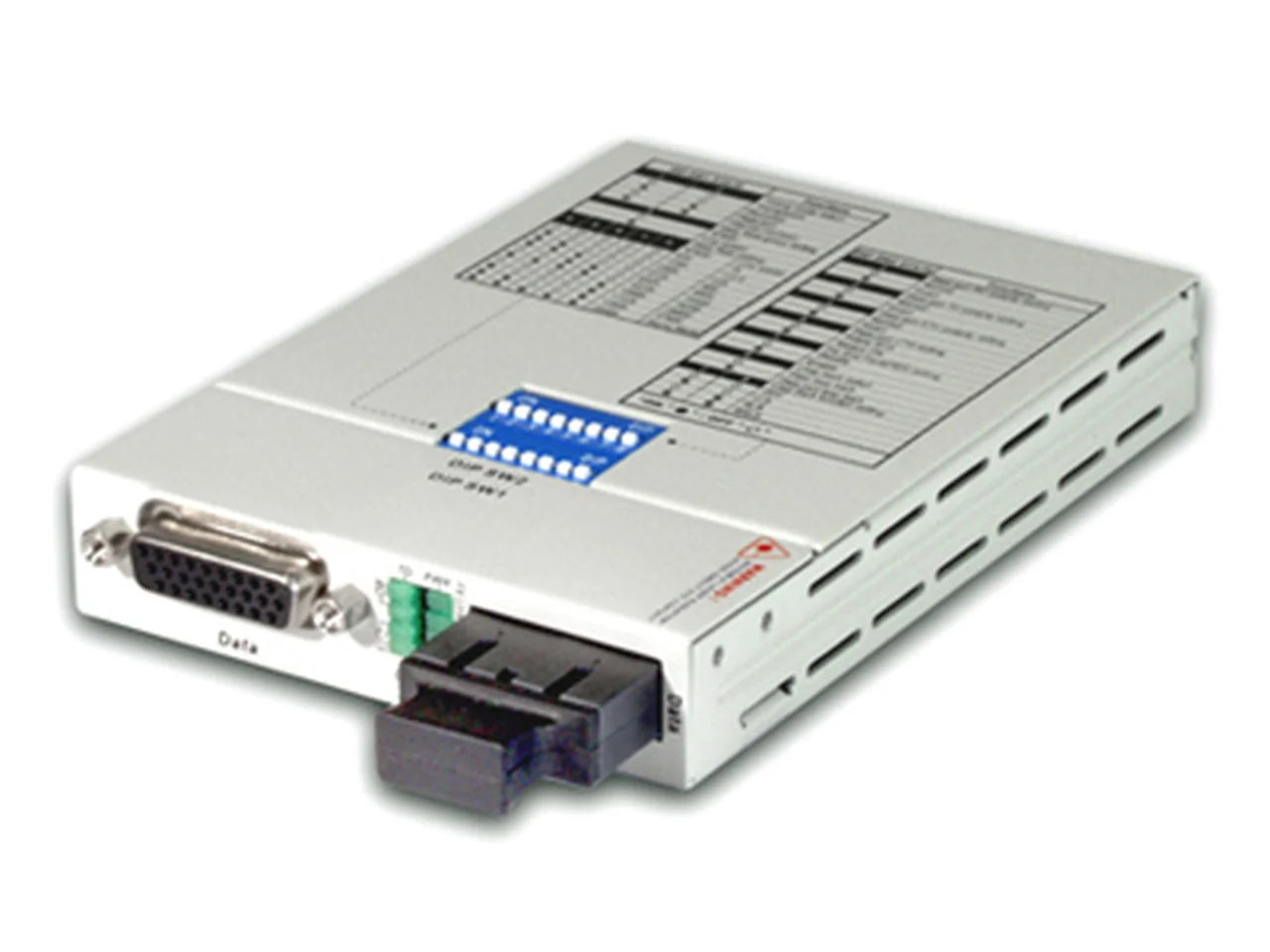

FIB1-232-SC20AF - RS-232 synchronous serial interface to fiber media converter, singlemode BiDi , 20Km A type, SC connector.
* - Please note that this media converter comes by default with an RS-232 DB25 female connector cable. If a male type cable is needed, please contact us. It also does include an AC 90-240V power adapter in its carton package.
Product description
The FIB1-232 is a media converter for RS-232 high-speed synchronous data interface transmission over optical fiber media.
The SC20A model MUST be paired with the SC20B model as they are using complementary wavelengths.
FIB1-232 model is available in a wide range of SC type optical modules, covering operating distances from 2Km up to 120Km. The media converter is also available for WDM single strand fiber optic connections in 4 different flavors.
Product Specification Sheet
Product Installation Manual
Technical specifications
| Interfaces: |
HD26 connector for synchronous port with DB25 cable for RS-232 type interface and SC duplex 155M fiber port |
| Operating wavelength: |
T:1310/R:1550nm over single-mode single strand BiDi 9/125 fiber |
| Operating distance: |
20Km on a single strand of 9/125um SM fiber |
| Optical connector: |
SC (ST or FC available by special order) |
| Front LEDs: |
PWR, Fiber Link, TD, RD, RTS, CTS, DCD, Test mode |
| Power: |
External 90-260V AC switching adapter 9VDC@1A with NEMA1-15(2 blades only), US type main plug |
| Temperature: |
0~50°C (Operating); 0~70°C (Storage) |
| Humidity: |
20-80% non condensing (Operating); 0-90% (Storage) |
| Consumption: |
less than 5W |
| Dimensions(WxDxH): |
85.6mm x 122.6mm x 20mm |
| Weight: |
310g (without AC adapter) |
| Compliance: |
CE, FCC Class A |
| MTBF: |
65,000 hours |
Fiber power budget according to available models
| Model |
Distance |
Lambda |
Min. Output (dBm) |
Sensitivity (dBm) |
Power Budget (dB) |
| FIB1-232-SC2F |
2Km |
1310nm |
-20 |
-31 |
11 |
| FIB1-232-SC15F |
15Km |
1310nm |
-24 |
-35 |
11 |
| FIB1-232-SC80F |
80Km |
1550nm |
-5 |
-34 |
29 |
| FIB1-232-SC120F |
120Km |
1550nm |
0 |
-35 |
35 |
| FIB1-232-SC20AF |
20Km |
Tx:1310nm Rx:1550nm |
-15 |
-32 |
17 |
| FIB1-232-SC20BF |
20Km |
Tx:1550nm Rx:1310nm |
-18 |
-32 |
14 |
| FIB1-232-SC60AF |
60Km |
Tx:1310nm Rx:1550nm |
-5 |
-34 |
29 |
| FIB1-232-SC60BF |
60Km |
Tx:1550nm Rx:1310nm |
-5 |
-34 |
29 |
