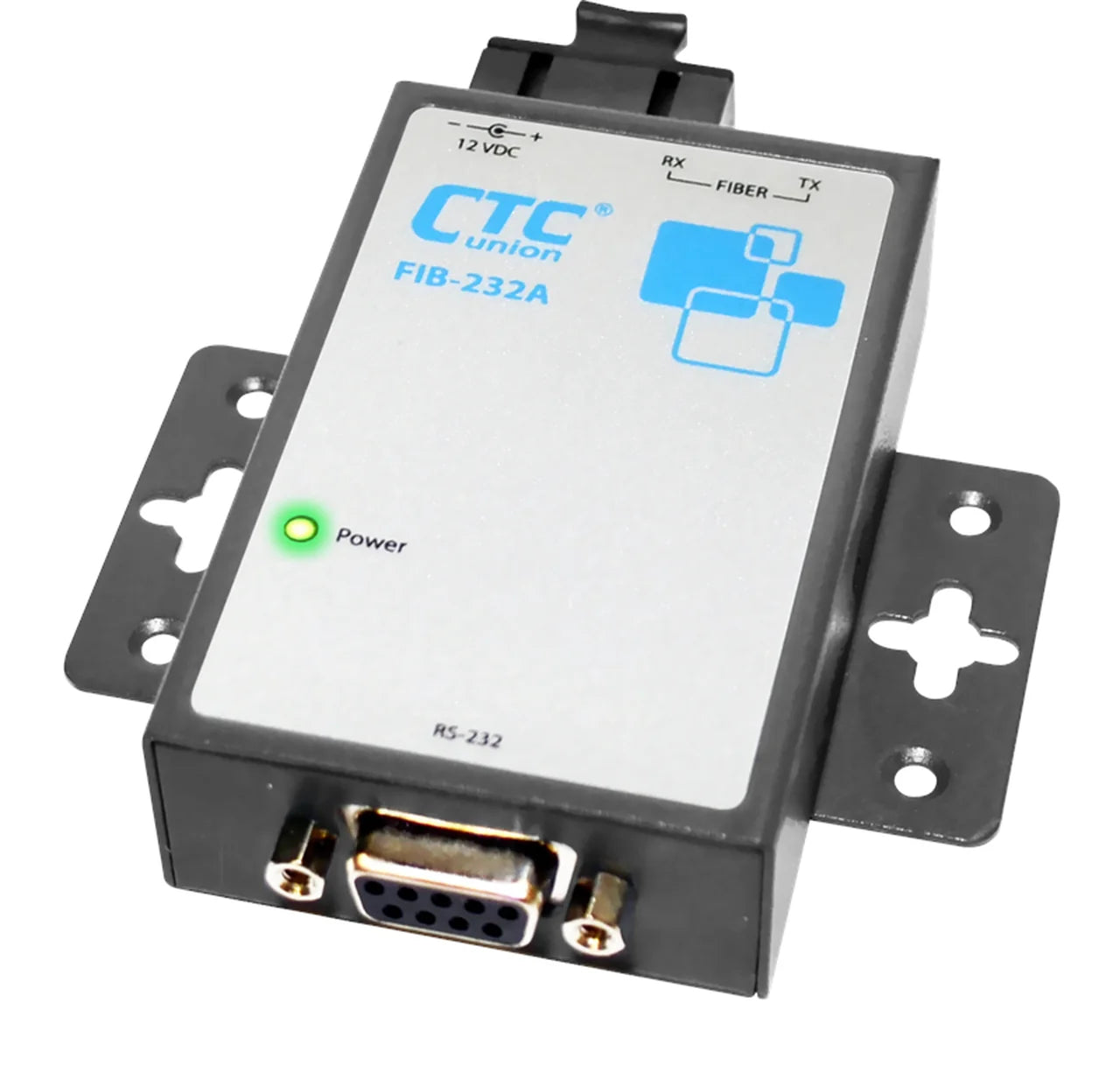

FIB-232A-SC030 - RS-232 over single mode fiber media converter, SC connector, 30Km range
Product description
The FIB-232A-SC030 provides a fiber converter solution to extend 3 wire serial RS-232 interface transmission up to 30km over single mode fiber.
Unit is also available with longer range optics, multi-mode and BiDi WDM optical modules for operation on single strand fiber optic circuits.
The FIB-232A secures data transmission over EMI resistant fiber at speeds up to 230.4kbps for asynchronous RS-232. It is presented in a compact size with wall mounting holes and it is available also with optional DIN rail mounting.
Technical specifications
| Interfaces: |
DB-9 female connector for RS-232 serial asynchronous port and dual SC fiber port |
| Operating wavelength: |
1310nm single-mode |
| Operating distance: |
30Km on 9/125um fiber |
| Optical connector: |
SC duplex, ST or FC available on request |
| Front LEDs: |
Power |
| Power: |
External 90-260V AC switching adapter 12VDC@400mA with NEMA1-15(2 blades only), US type main plug
AC 90-240V power adapter is included in carton package
|
| Temperature: |
0~50°C (Operating); 0~70°C (Storage) |
| Humidity: |
20-80% non condensing (Operating); 0-90% (Storage) |
| Consumption: |
less than 4W |
| Dimensions(WxDxH): |
50mm x 95mm x 22mm |
| Weight: |
90g (without AC adapter) |
| Compliance: |
CE, FCC Class A |
| MTBF: |
65,000 hours |
Fiber power budget according to available models
| Model |
Distance |
Lambda |
Min. Output (dBm) |
Sensitivity (dBm) |
Power Budget (dB) |
| FIB-232A-SC002 |
2Km |
1310nm |
-20 |
-31 |
11 |
| FIB-232A-SC015 |
15Km |
1310nm |
-24 |
-35 |
11 |
| FIB-232A-SC030 |
30Km |
1310nm |
-15 |
-35 |
20 |
| FIB-232A-SC050 |
50Km |
1310nm |
-8 |
-36 |
28 |
| FIB-232A-SC080 |
80Km |
1550nm |
-5 |
-34 |
29 |
| FIB-232A-SC120 |
120Km |
1550nm |
0 |
-35 |
35 |
| FIB-232A-SC20A |
20Km |
Tx:1310nm Rx:1550nm |
-15 |
-32 |
17 |
| FIB-232A-SC20B |
20Km |
Tx:1550nm Rx:1310nm |
-18 |
-32 |
14 |
| FIB-232A-SC40A |
40Km |
Tx:1310nm Rx:1550nm |
-7 |
-32 |
25 |
| FIB-232A-SC40B |
40Km |
Tx:1550nm Rx:1310nm |
-8 |
-32 |
24 |
| FIB-232A-SC60A |
60Km |
Tx:1310nm Rx:1550nm |
-5 |
-34 |
29 |
| FIB-232A-SC60B |
60Km |
Tx:1550nm Rx:1310nm |
-5 |
-34 |
29 |
| FIB-232A-SC80A |
80Km |
Tx:1310nm Rx:1550nm |
-2 |
-34 |
32 |
| FIB-232A-SC80B |
80Km |
Tx:1550nm Rx:1310nm |
-2 |
-34 |
32 |
