Description

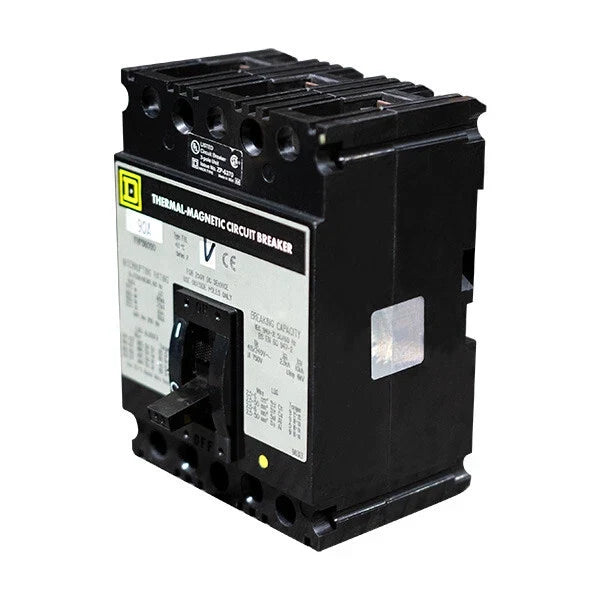

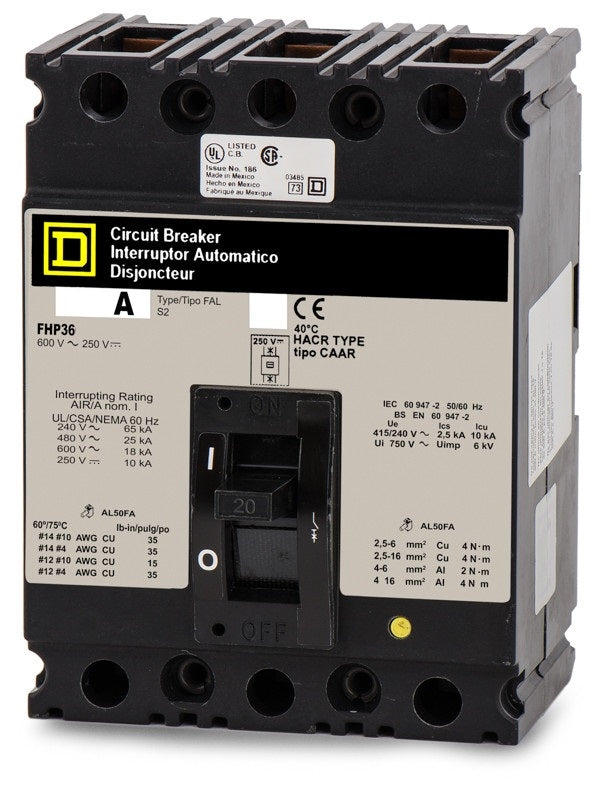

The Schneider Electric FHP36090 is a molded case circuit breaker designed to provide high-interrupting overcurrent protection in industrial and commercial electrical distribution systems. It features a 90 amp trip rating within a 100 amp frame and is rated for operation up to 600 VAC. This breaker is commonly used in three-phase power applications where dependable fault protection and circuit isolation are required.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Circuit Breaker |
| Part Number |
FHP36090 |
| Subcategory |
Molded Case Circuit Breaker |
| Breaker Type |
Molded case, high interrupting |
| Frame Rating |
100 A |
| Trip Rating |
90 A |
| Poles |
3 |
| Rated Voltage |
600 VAC |
| Interrupting Capacity |
High interrupting |
| Lug Configuration |
Load-end lugs only |
| Mounting Type |
Panel mount |
| Application Use |
Power distribution and circuit protection |
| Manufacturer Status |
Discontinued by manufacturer |
| Weight |
5.00 lbs |
Information About FHP36090
The FHP36090 is part of a Schneider Electric molded case circuit breaker family engineered for high-interrupting capacity performance. It is constructed with a durable molded housing and an internal trip system designed to respond quickly to overload and short-circuit conditions. The breaker supports three-pole configurations and uses load-end lugs only for secure conductor termination. Although discontinued by the manufacturer, it remains suitable for maintenance, replacement, and support of existing electrical distribution installations.
Key Features:
- Molded Case Circuit Breaker: Provides reliable protection against overload and short-circuit faults.
- High Interrupting Capacity: Designed to safely interrupt high fault currents.
- 90 Amp Trip Rating: Suitable for medium-to-high current circuit protection.
- 100 Amp Frame Size: Allows installation in systems designed for this breaker frame.
- Three-Pole Configuration: Supports three-phase electrical distribution systems.
- 600 VAC Rating: Suitable for high-voltage AC power applications.
- Load-End Lugs Only: Designed for secure conductor termination on the outgoing side.
The FHP36090 delivers the reliability and precision required for high-interrupting circuit protection in industrial and commercial power systems.
