Description

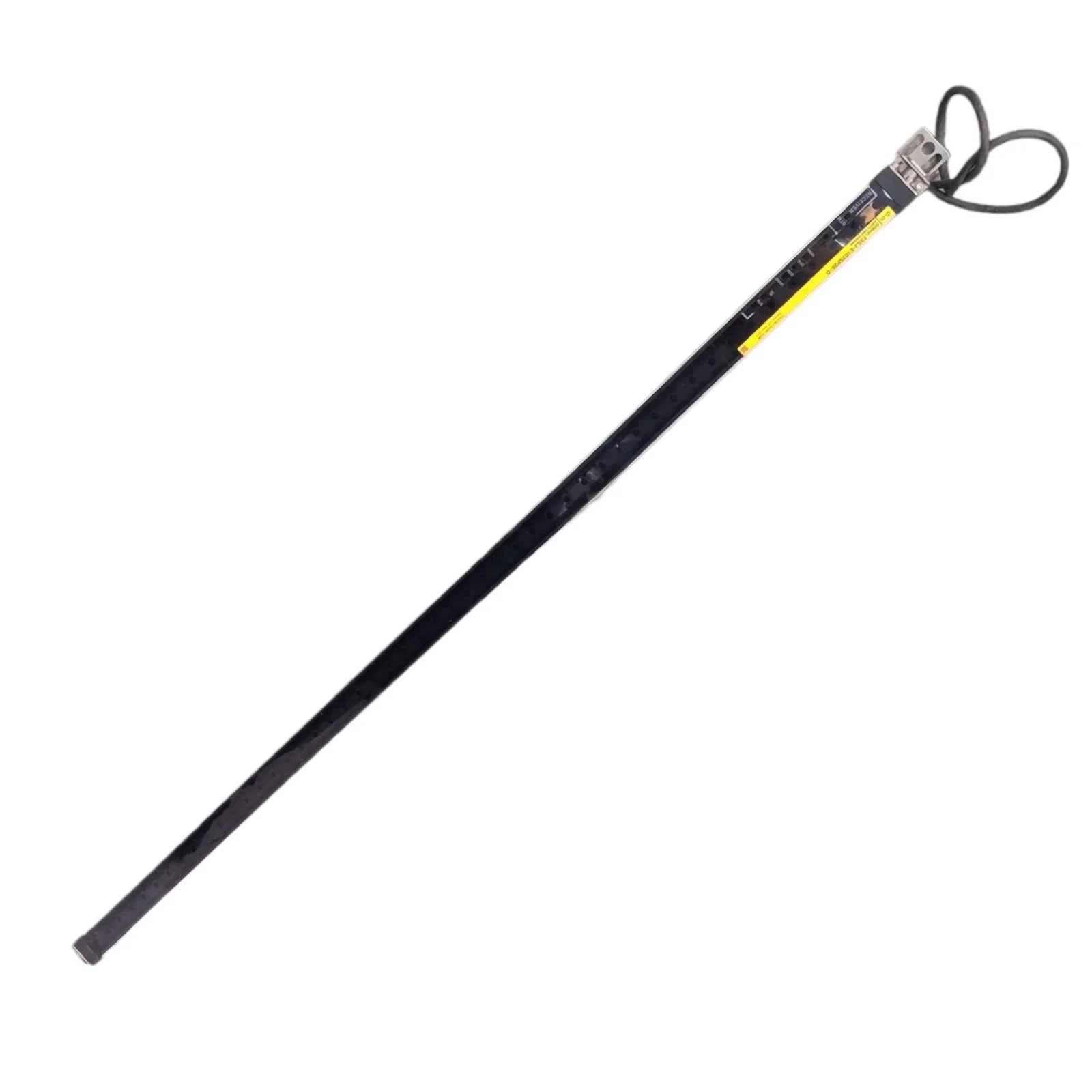

The Omron F3SJ-E1025P25 is a Type 4 safety light curtain transmitter and receiver pair designed for reliable hand protection in industrial machinery. Featuring a 20 mm beam pitch with a 1025 mm protective height, it provides precise object detection within a 0.2 to 7 meter operating range. This safety light curtain is engineered for straightforward on/off detection applications requiring high safety integrity.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Machine Safety |
| Part Number |
F3SJ-E1025P25 |
| Subcategory |
Safety Light Curtains |
| Product Series |
F3SJ |
| Safety Type |
Type 4 ESPE |
| Protective Height |
1025 mm |
| Beam Resolution |
25 mm (hand protection) |
| Number of Beams |
50 |
| Beam Pitch |
20 mm |
| Sensing Distance |
0.2 to 7 m |
| Supply Voltage |
24 V DC (19.2–28.8 V DC) |
| Output Type |
PNP OSSD |
| Response Time |
15 ms (ON→OFF), 70 ms (OFF→ON) |
| Degree of Protection |
IP65 |
| Operating Temperature |
-10 to +55 °C |
| Housing Material |
Aluminum Alloy |
| Light Source |
Infrared LED (870 nm) |
| Weight |
1.96 kg |
Information About F3SJ-E1025P25
The F3SJ-E1025P25 is part of Omron’s F3SJ Easy type safety light curtain series, designed for compact installation and dependable personnel protection. It utilizes an infrared LED sensing method with a rugged aluminum alloy housing suitable for industrial environments with pollution degree 3. The unit is compliant with IEC, EN, and UL 61496-1 standards as a Type 4 electro-sensitive protective equipment device and supports SIL3 and PL e safety classifications. Its PNP output configuration and pre-wired connections make it compatible with common 24 V DC safety control systems.
Key Features:
- Type 4 Safety Rating: Certified to IEC 61496-1 for high-risk machine guarding applications.
- 20 mm Beam Pitch: Enables accurate hand detection with 50 infrared beams.
- 1025 mm Protective Height: Covers a wide vertical detection area for operator safety.
- PNP OSSD Outputs: Dual safety outputs rated at 200 mA for reliable system integration.
- Infrared LED Technology: Uses 870 nm wavelength for stable and precise sensing.
- External Test Function: Supports emitter-side testing via dedicated digital input.
- Robust IP65 Housing: Aluminum enclosure provides protection against dust and water ingress.
The F3SJ-E1025P25 delivers the reliability and precision required for industrial hand protection and machine safety applications.
