Description
The ExplorIR®-W (formerly known as CozIR Wide Range) is a low power, high performance CO2 sensor that measures 5% CO2 in battery powered and portable alarm monitoring applications.
Features
- 0-5% CO2 Measurement
- Durable, low power consumption
- Industry standard serial communication
- Ideal for battery powered applications, or harsh/rugged environments
- Simple to install, pre-calibrated and ready-to-use
Models

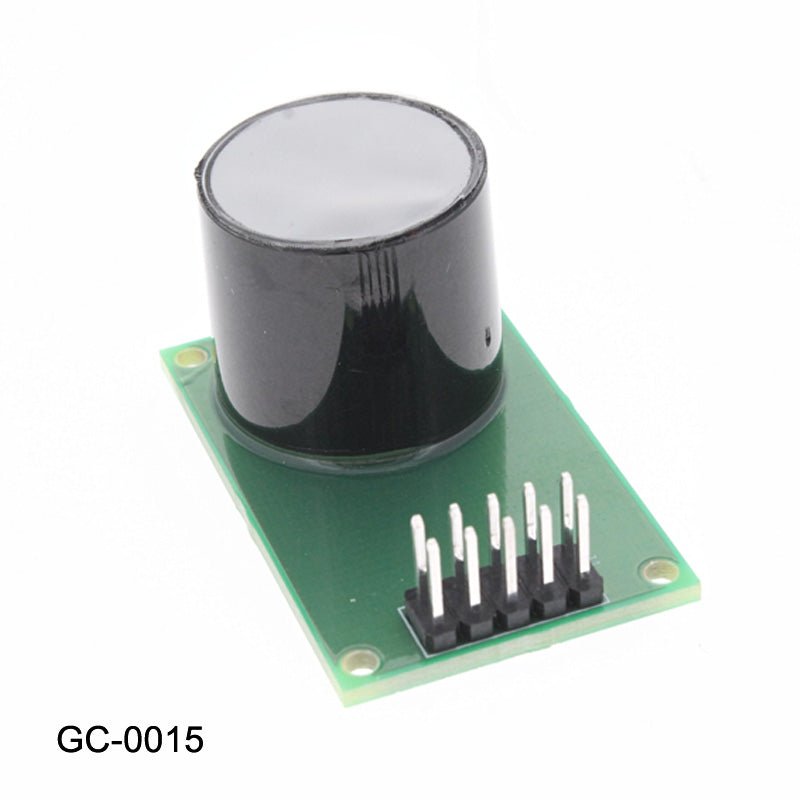

- GC-0015 ExplorIR®-W 5% CO2 Sensor Only - for integration into high-volume OEM products. Contact us directly for wholesale pricing on large quantities of this sensor.

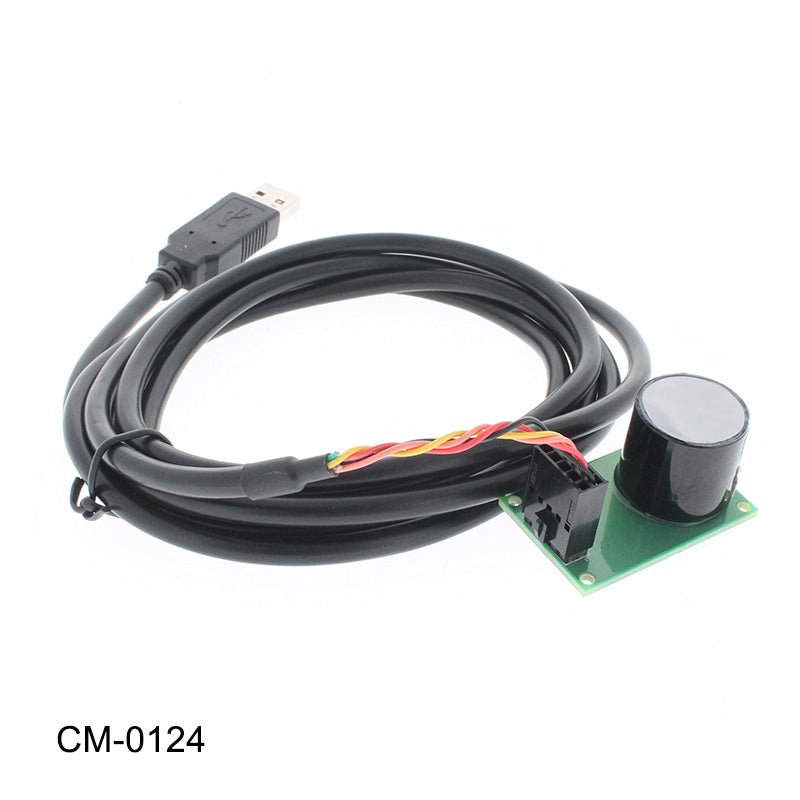

- CM-0124 ExplorIR®-W 5% CO2 Sensor Development Kit - Easy to use, simply plug the sensor module into your PC via the included serial UART to USB cable. Use our free GasLab® software to measure and graph carbon dioxide, to configure the sensor or for data logging.
Specifications
- Measurement Range: 0-5% CO2
- Sensing Method: NDIR with Gold-plated optics
- Sample Method: Diffusion (default) or sampling with optional tube adapter
- Accuracy: ±70 ppm ± 5% of reading
- Resolution: 10ppm
- Sample Rate: 500 ms (2 Hz) measurement interval
- Response Time Filter: 4 secs to 2 mins (user configurable)
- Serial communications: 9600/8/1/N
- Warm-up Time: < 10s
- Operating Conditions: 0°C to 50°C, 950 mBar to 10 Bar
- Weight: 8g
- Sensor Life Expectancy: > 15 years
Electrical/Mechanical
- Power Input: 3.3 ±0.1 volt DC < 3.5 mW
- Peak current: 33mA
-
Devkit includes 6’ (1.8m) USB cable (non-standard)
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Documents
Devkit Quick Start Guide (pdf)
Quality Certificate - ISO9001 (pdf)
Labview Examples for COZIR CO2 Sensors (zip)
Free Easy-to-use GasLab™ Software
This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
Accessories
- Probe Enclosure for Development Kits and Hydrophobic Filter Option

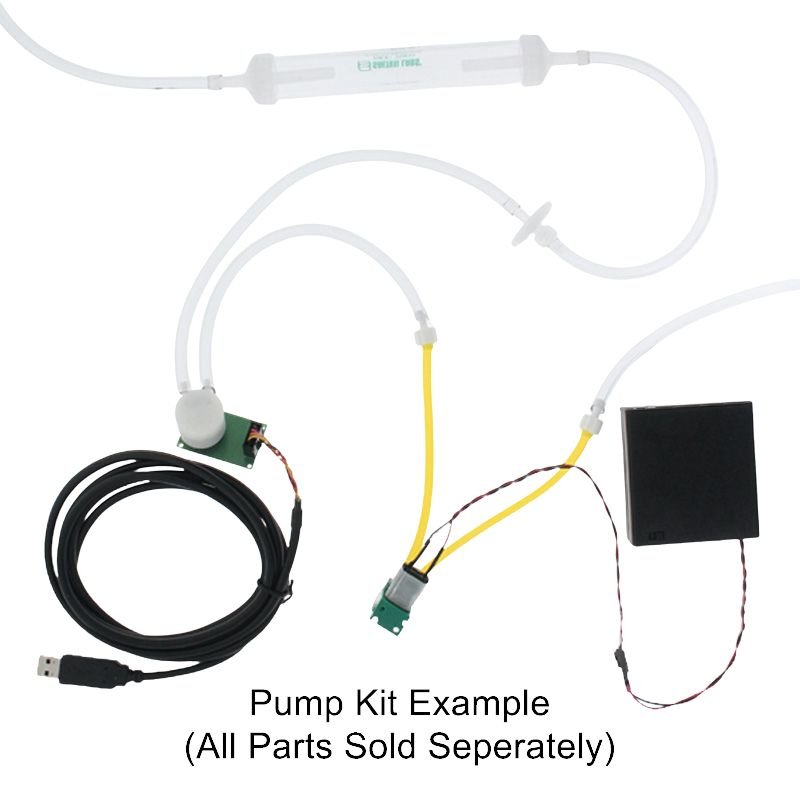

- TC1-5 Tube Cap Adapter - easily converts a wide range of gas sensors from diffusion applications to sampling.
