Description

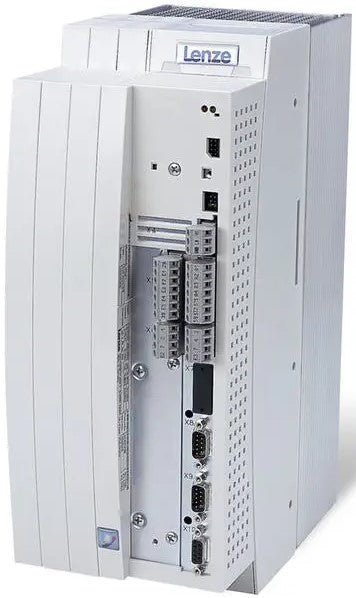

The Lenze EVS9323-ES is a servo inverter designed for precise motion, speed, and torque control in industrial automation systems. Rated for 1.5 kW (2 HP) operation, the EVS9323-ES operates on 400/480 VAC supply and is built as a compact, built-in unit for control cabinet installation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Motion Control |
| Part Number |
EVS9323-ES |
| Subcategory |
Servo Inverters |
| Series |
9300 Series |
| Product Type |
Servo Inverter / Servo Controller |
| Typical Motor Power |
1.5 kW (2.0 HP) |
| Rated Output Power |
2.2 kW |
| Supply Voltage Range |
320–528 VAC |
| Rated Output Current |
3.9 A (8 kHz) |
| Maximum Current |
5.85 A (8 kHz) |
| Standstill Current |
5.9 A (8 kHz) |
| Switching Frequency |
8 kHz or 16 kHz |
| Output Voltage |
Up to 94% with choke; 100% without choke |
| Maximum Power Loss |
140 W |
| Motor Cable Length |
Up to 50 m (without additional filters) |
| Protection Rating |
IP20 |
| Mounting Orientation |
Vertical, control cabinet installation |
| Ambient Temperature Range |
0 to +55 °C |
| Weight |
11.00 lbs (4.99 kg) |
Information About EVS9323-ES
The EVS9323-ES is part of Lenze’s 9300 series servo inverter platform, developed for high-performance servo control in machinery and automated production equipment. It integrates power electronics and control functionality into a single built-in unit, simplifying wiring and system design. The inverter supports stable motor operation through configurable switching frequencies and precise current regulation. Designed for vertical mounting within a control cabinet, it provides reliable performance across a defined industrial temperature range.
Key Features:
- 9300 Series Servo Platform: Engineered for accurate and responsive industrial servo motor control.
- High-Voltage Operation: Supports a supply voltage range of 320–528 VAC for 400/480 VAC systems.
- Integrated Servo Inverter Design: Combines control and power stages into a single built-in unit.
- Flexible Switching Frequencies: Selectable 8 kHz or 16 kHz switching to balance efficiency and noise.
- High Current Capability: Supports elevated standstill and peak current levels for demanding motion profiles.
- Efficient Power Conversion: Delivers up to full input voltage output without a mains choke.
- Compact Cabinet Installation: Designed for vertical mounting in IP20-rated control enclosures.
The EVS9323-ES delivers the reliability and precision required for industrial servo motion control applications.
