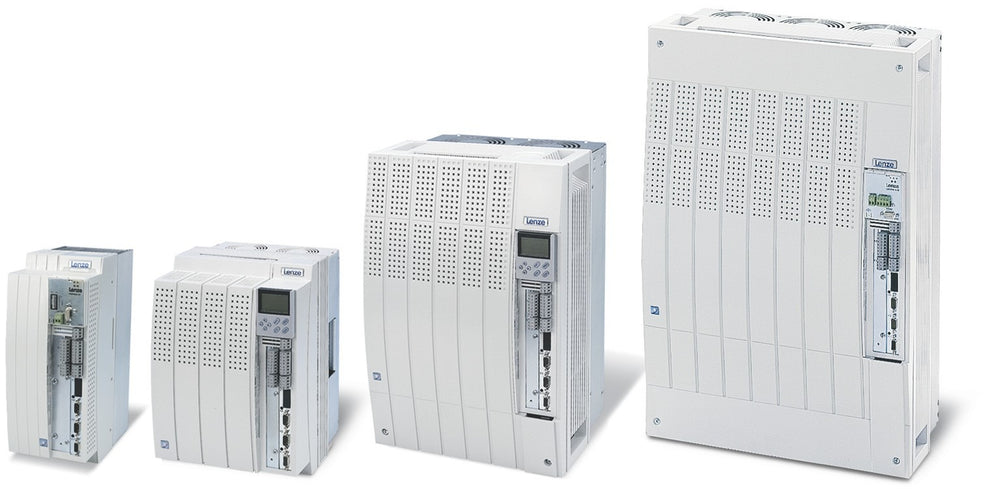

Description
The Lenze EVF9329-EVV100 is a 9300 series frequency inverter designed for three-phase industrial motor control applications. It operates with a 400–480 VAC input at 50/60 Hz and delivers a controlled output range of 0–480 VAC up to 600 Hz. This IT system variant drive provides regulated speed and torque control for demanding automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Drives |
| Part Number |
EVF9329-EVV100 |
| Subcategory |
Drive |
| Series |
9300 |
| Drive Type |
Frequency Inverter |
| Input Voltage |
400–480 VAC |
| Input Phase |
3 Phase |
| Input Frequency |
50/60 Hz |
| Input Current |
53 A |
| Input Apparent Power |
44 kVA |
| Output Voltage |
0–480 VAC |
| Output Frequency Range |
0–600 Hz |
| Output Current |
56 A |
| Output Apparent Power |
46.6 kVA |
| System Variant |
IT System Variant |
| Weight |
14.5 kg |
Information About EVF9329-EVV100
The EVF9329-EVV100 is part of the Lenze 9300 inverter platform developed for variable frequency motor control in industrial machinery. It supports a three-phase input rated at 53 A and 44 kVA, with a three-phase output rated at 56 A and 46.6 kVA. The inverter is designed as an IT system variant, making it suitable for installations with isolated or impedance-grounded power systems. Engineered for cabinet-mounted integration, the unit is intended for regulated drive control in production and processing environments.
Key Features:
-
9300 Series Platform: Designed for industrial variable frequency motor control.
-
400–480 VAC Input: Three-phase operation at 50/60 Hz supply frequency.
-
53 A Input Current: Rated for 44 kVA input capacity.
-
0–480 VAC Output: Adjustable frequency range from 0 to 600 Hz.
-
56 A Output Current: Provides up to 46.6 kVA output power.
-
IT System Variant: Suitable for isolated or impedance-grounded electrical systems.
-
Three-Phase Output Control: Supports regulated speed and torque performance.
-
Industrial Cabinet Installation: Intended for panel-mounted automation systems.
The EVF9329-EVV100 delivers the reliability and precision required for industrial three-phase frequency inverter applications.
