Description

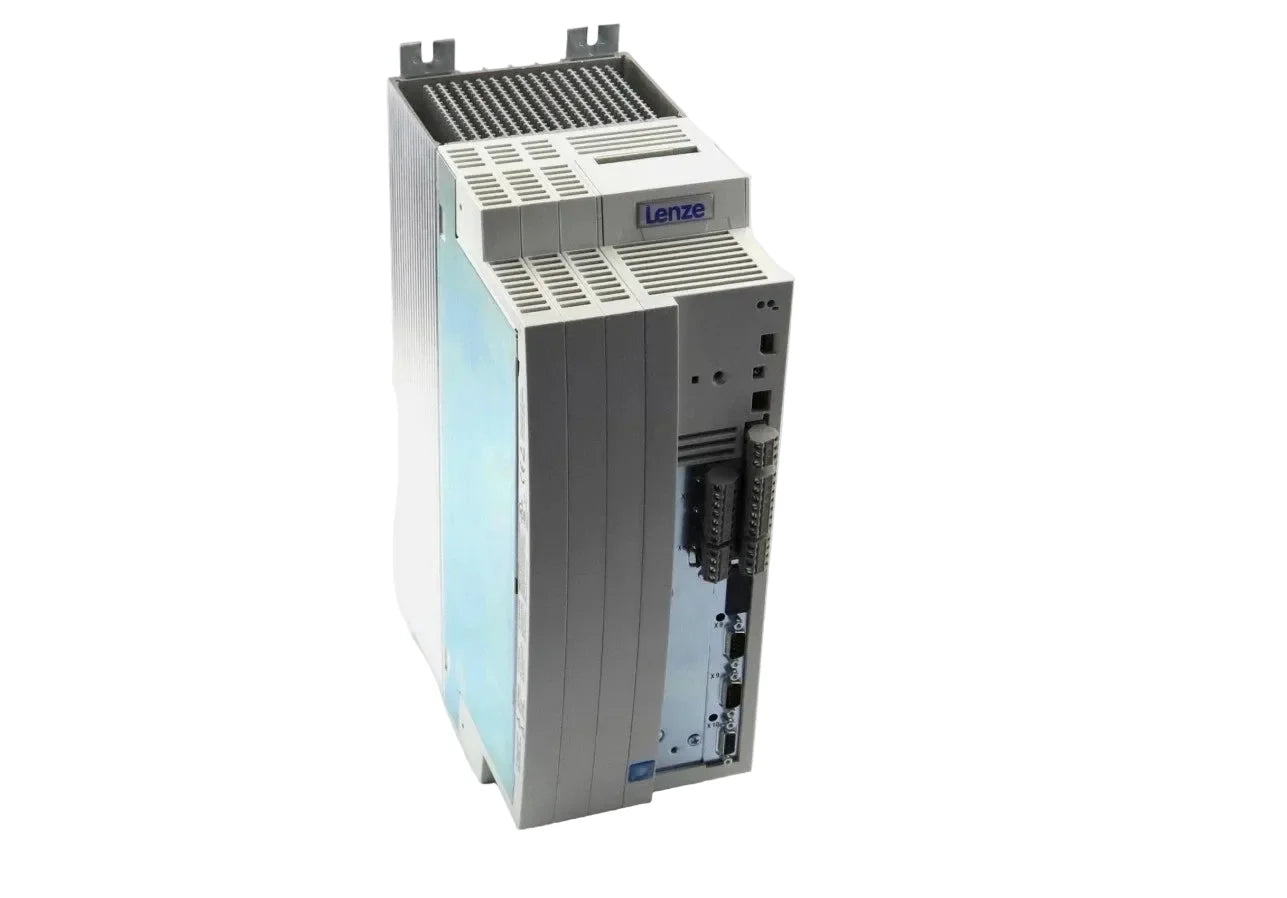

The Lenze EVF9325-EV is a 9300 Series vector frequency inverter designed for three-phase 400/480 VAC motor control applications. It provides adjustable output voltage up to 400 VAC and supports a typical motor power rating of 7.5 kW. The built-in unit is intended for panel mounting and delivers controlled speed and torque regulation in industrial systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Servo Products |
| Part Number |
EVF9325-EV |
| Subcategory |
Servo Drive/Servo Control |
| Series |
9300 |
| Product Type |
Vector Frequency Inverter |
| Rated Motor Power |
7.5 kW |
| Input Voltage |
3-Phase 400/480 VAC |
| Input Frequency |
50/60 Hz (45–65 Hz range) |
| Output Voltage |
0–400 VAC |
| Mains Current (with choke) |
15 A |
| DC Supply Option |
460 VDC / 620 VDC |
| Power Loss |
260 W |
| Mounting Method |
Built-In Unit (Panel Mount) |
| Dimensions |
139 mm W x 350 mm H |
| Weight |
14.55 lbs |
Information About EVF9325-EV
The EVF9325-EV belongs to the Lenze 9300 product line and is configured as a built-in, vector-controlled frequency inverter. It operates on a three-phase 400 VAC supply at 50/60 Hz and supports a mains current of 15 A when used with a mains choke. The inverter can alternatively be powered from a DC supply of 460 VDC or 620 VDC for specialized configurations. Designed for industrial automation environments, the unit supports flexible frequency operation and compact cabinet installation.
Key Features:
-
9300 Series Platform: Designed for industrial motor control applications.
-
7.5 kW Motor Rating: Suitable for 4-pole asynchronous motors.
-
400/480 VAC Input: Three-phase operation at 50/60 Hz.
-
0–400 VAC Output: Adjustable AC output voltage range.
-
15 A Mains Current (with choke): Supports stable drive operation.
-
Vector Control Technology: Provides regulated speed and torque performance.
-
DC Supply Option: Compatible with 460 VDC or 620 VDC input.
-
Built-In Unit Design: Panel-mounted configuration for control cabinets.
-
Compact Construction: 139 mm width for space-efficient installation.
The EVF9325-EV delivers the reliability and precision required for industrial vector frequency inverter applications.
