Description

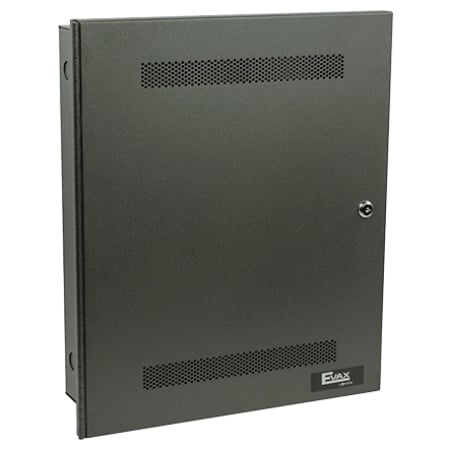

The EVAX-100 Voice Evacuation System by EVAX Systems, Inc. is a 100-watt, fully supervised voice evacuation panel designed for integration with any fire alarm control panel (FACP). It provides clear, high-fidelity emergency voice messages and tones for safe building evacuation. The EVAX-100 combines robust power output, reliable performance, and ease of installation, making it ideal for commercial, institutional, and multi-story applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
EVAX |
| Category |
Fire Alarm Systems |
| Part Number |
EVAX-100 |
| Subcategory |
Voice Evacuation Systems |
| Power Output |
100 Watts |
| Input Voltage |
120 VAC, 60 Hz |
| Speaker Circuit Type |
25 or 70 VRMS, Class A/B selectable |
| Amplifier Type |
Bullet-proof solid-state amplifier |
| Message Storage |
8 MB MP3 digital message driver |
| Backup Power |
Supports two 12V 7AH batteries (24-hour backup) |
| Microphone Override |
Live microphone control over messages and tones |
| System Compatibility |
Works with 12VDC/24VDC fire alarm panels |
| Supervision |
Fully supervised amplifier, speaker circuits, and power |
| Configuration Options |
Adjustable tones, message repeats, 6-hour AC fail delay |
| Mounting Type |
Surface or semi-flush mounting |
| Cabinet Type |
Clean dead-front construction with key-locked door |
| Enclosure Color |
Charcoal Gray |
| Dimensions |
14.5" W × 18.0" H × 4.0" D |
| Compliance |
NFPA 72, UL Listed |
| Country of Origin |
United States |
| Weight |
32.00 lbs |
Information About EVAX-100
The EVAX-100 is part of the EVAX Series of voice evacuation systems engineered by EVAX Systems, Inc. to meet demanding fire protection and life safety standards. It includes a built-in 120 VAC power supply, battery charger, and an integrated digital message repeater (DMR) that stores and replays custom evacuation messages. The system features selectable Class A/B speaker circuits operating at 25 or 70 VRMS, ensuring installation flexibility across various building types. Designed to work with both conventional and addressable fire alarm control panels, the EVAX-100 ensures reliable message delivery and continuous supervision for critical emergency communication.
Key Features:
- High-Power Output: Provides 100 watts of audio power for large-scale evacuation systems.
- Integrated Power Supply: Includes 120 VAC input and a built-in battery charger for standby operation.
- Digital Message Repeater (DMR): Allows storage and automatic playback of emergency messages.
- Selectable Speaker Circuits: Field-configurable for 25 or 70 VRMS Class A/B operation.

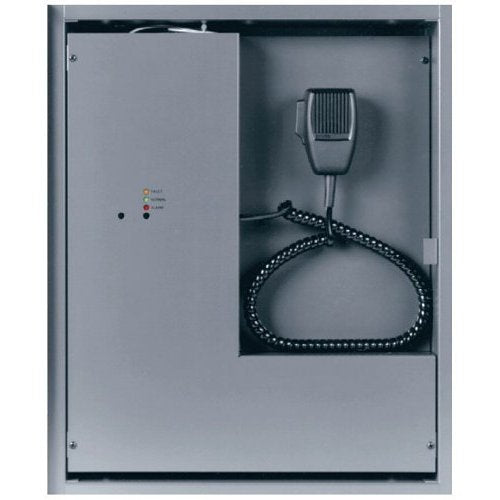

- Live Microphone Override: Enables direct announcements during alarm conditions.
- Fully Supervised Design: Monitors amplifier, speaker lines, and power supply for system integrity.
- Field Configurable: Adjustable tone selection, repeat settings, and AC fail delay for flexibility.
- Durable Construction: Secure surface or semi-flush mount cabinet with key-locked hinged door.
The EVAX-100 delivers the reliability and precision required for dependable, code-compliant voice evacuation and emergency communication systems.
