Description
The Potter EVAX-50 Voice Evacuation System is a compact 50-watt voice evacuation panel designed for integration with any fire alarm control panel (FACP). It delivers clear, high-quality voice messages and tones to guide building occupants during emergencies. The EVAX-50 combines reliability, performance, and simplicity, making it ideal for small to medium-sized facilities requiring supervised voice communication systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Potter |
| Category |
Fire Alarm Systems |
| Part Number |
EVAX-50 |
| Subcategory |
Voice Evacuation Systems |
| Power Output |
50 Watts |
| Input Voltage |
120 VAC, 60 Hz |
| Speaker Circuit Type |
25 or 70 VRMS, Class A/B field selectable |
| Digital Message Storage |
8 MB MP3 message driver |
| Amplifier Type |
Solid-state bullet-proof amplifier |
| Backup Power |
Supports two 12V 7AH batteries for 24-hour backup |
| Alarm Configuration |
General alarm or alarm-by-zone setup |
| Microphone Function |
Live override of messages and tones |
| System Compatibility |
Works with 12VDC or 24VDC fire alarm panels |
| Construction |
Clean dead-front cabinet with hinged, key-locked door |
| Mounting Options |
Surface or semi-flush mounting |
| Field Configurations |
Alarm tone selection, message repeat, AC power fail delay |
| Compliance |
NFPA 72 and UL Listed |
| Dimensions |
14.5” (W) × 18.0” (H) × 4.0” (D) |
| Weight |
20 lbs |
Information About EVAX-50
The EVAX-50 is part of the EVAX Series by Potter, developed to provide scalable voice evacuation solutions for commercial and institutional environments. This model includes a built-in 120 VAC power supply, battery charger, and digital message repeater for complete standalone operation. The system supports Class A/B speaker circuits with selectable 25 or 70 VRMS outputs, offering flexibility across different installation types. Designed for compatibility with both conventional and addressable FACPs, the EVAX-50 ensures consistent voice clarity, reliable supervision, and simplified field configuration options.
Key Features:
- Output Power: Provides 50 watts of speaker power for small to mid-size fire alarm applications.
- Integrated Power Supply: Includes 120 VAC input and a built-in battery charger for uninterrupted operation.
- Digital Message Repeater (DMR): Stores and automatically repeats pre-recorded evacuation messages.
- Selectable Speaker Circuits: Offers 25 or 70 VRMS field-selectable Class A/B speaker outputs.

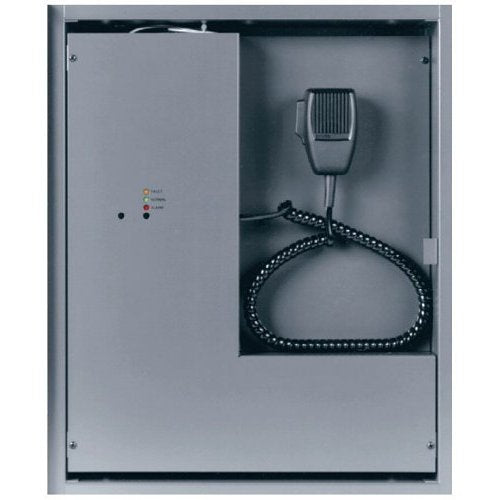

- Microphone Override: Enables live announcements that override prerecorded tones and messages.

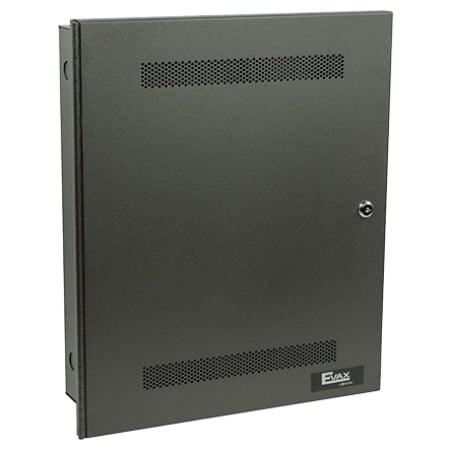

- Compact and Secure Enclosure: Housed in a surface or semi-flush mounted cabinet with a hinged, key-locked door.
- Fully Supervised System: Monitors amplifier, speaker lines, and power supply for system integrity.
- Configurable Settings: Adjustable alarm tones, message repeat intervals, and AC power failure delay.
The EVAX-50 delivers the reliability and precision required for dependable emergency voice evacuation and notification applications.
