Description

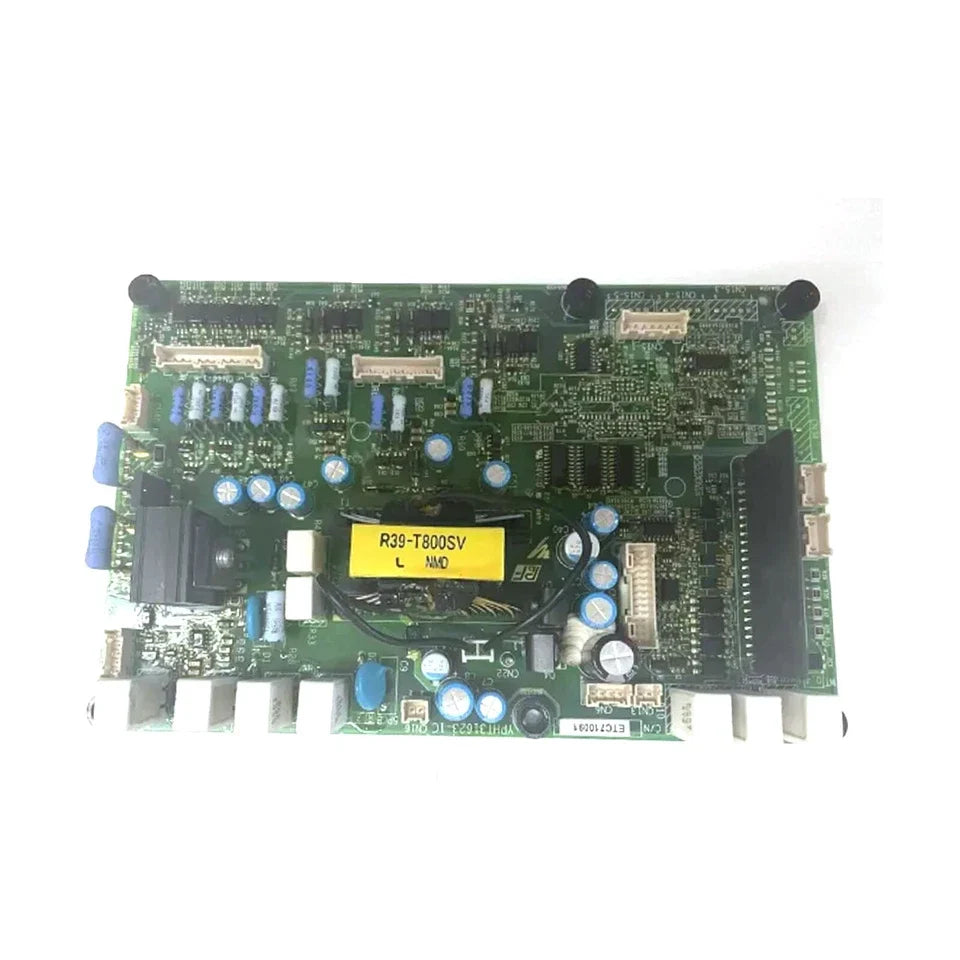

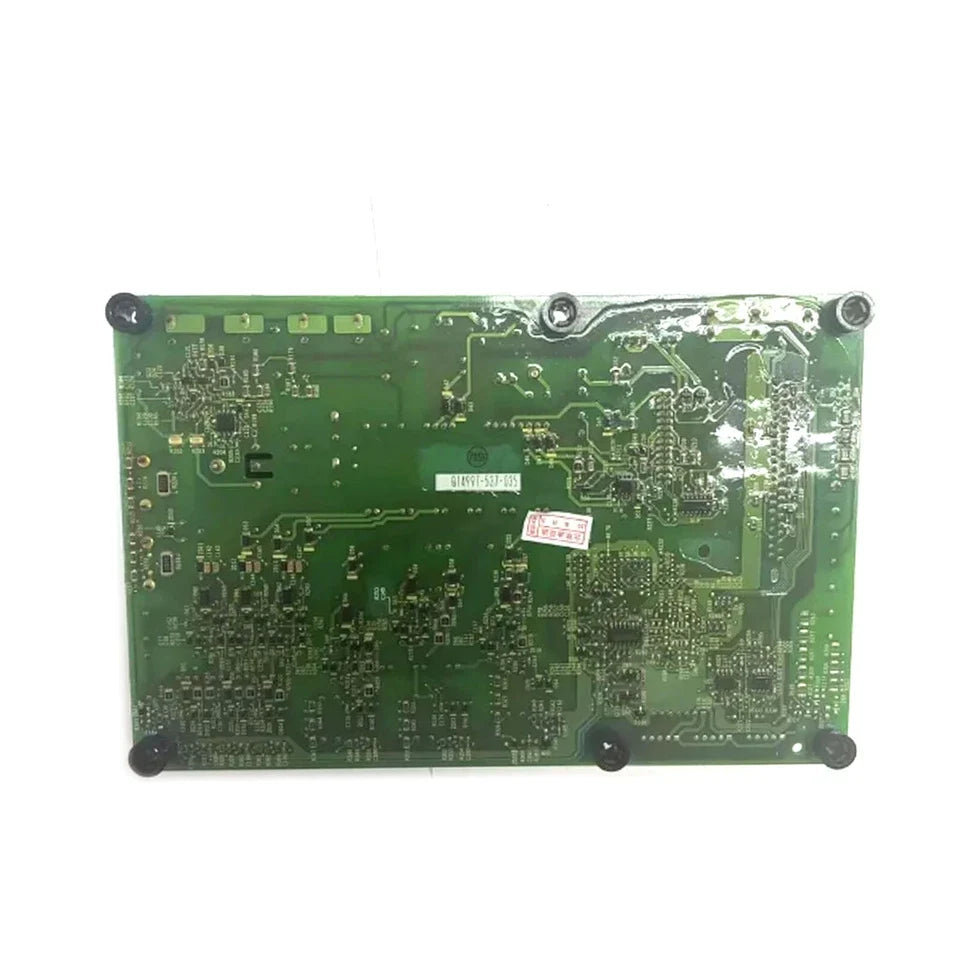

The Yaskawa ETC710091 is a replacement power board module designed for high-performance A1000 series inverters. It supports power levels in the 22–37 kW range and plays a critical role in handling power conversion and control within the drive system.

Technical Specifications

Information About ETC710091

This module is part of the internal power stage for Yaskawa A1000 series inverters, typically used in heavy-duty motor control environments. The ETC710091 board is engineered to deliver reliable performance and thermal efficiency under demanding industrial loads. It integrates seamlessly with the control and gate driver circuitry in A1000 units, ensuring optimal modulation of output voltage and current for motor operation.

Key Features:

• Compatible Power Class: 22–37 kW – Suitable for mid-to-high capacity A1000 drives.
• Voltage Class: 400 V (typical) – Engineered for standard industrial 3-phase power systems.
• Power Control Role – Handles DC link switching, energy distribution, and IGBT coordination.
• PCB Format – Robust board layout designed for high-voltage and high-temperature operation.
• Component Integration – Includes heat sinks, bus capacitors, and connectors for integration.
• Manufacturing Grade – Built for precision fit within Yaskawa A1000 frames.
• Application Scope – Industrial fans, compressors, pumps, and automation equipment.
• Serviceability – Field-replaceable to minimize system downtime.
• Model Identifier – ETC710091 denotes production and variant lineage.
