Description

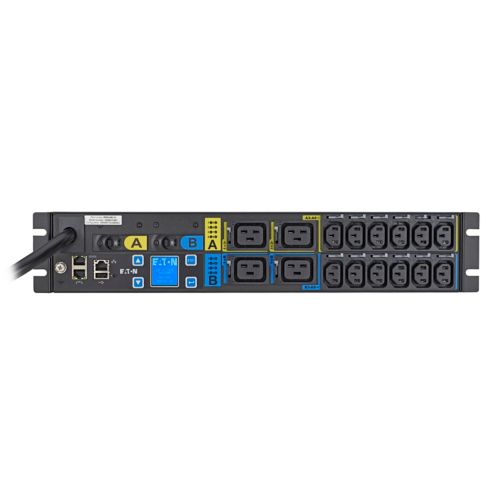

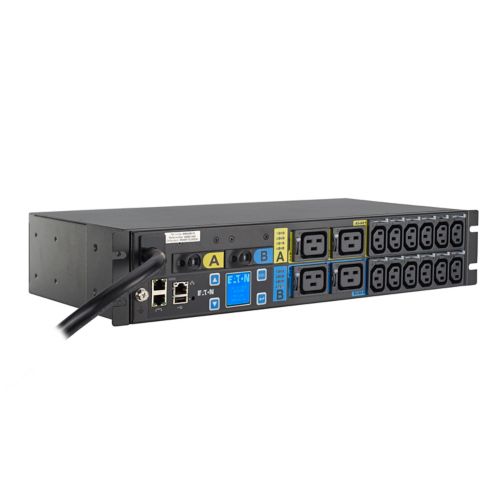

The Eaton EMAU06-10 is a 2U rack-mountable managed power distribution unit (PDU) designed for enterprise IT and data center environments requiring intelligent power control and monitoring.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
|
| Part Number |
EMAU06-10 |
| Subcategory |
PLC Module/Rack |
| Compliances |
Contact Manufacturer |
Certifications
|
UL Listed |
| Form Factor |
2U |
| Outlet Control |
Yes |
| Phase |
Single-phase |
| Wattage |
5.76 kW max |
Amperage Rating
|
24A |
Input Voltage
|
200-240V |
| Input Connection |
L6-30P |
| Outlets |
(12) C13, (4) C19
|
| Cord Length |
10 ft
|
| Frequency Rating |
50-60 Hz
|
| Operating Temperature |
0° to 60°C (32° to 140°F)
|
| Length/Depth |
19 in
|
| Height |
5 in
|
| Width |
3.4 in
|
| Weight |
13.3 lbs
|
Information About EMAU06-10
The Eaton EMAU06-10 is a 2U rack-mountable managed power distribution unit (PDU) designed for enterprise IT and data center environments requiring intelligent power control and monitoring. Operating at 200–240V single-phase with a 24A input capacity, it delivers up to 5.76 kW of power through 16 outlets—comprising 12 IEC C13 and 4 IEC C19 receptacles. Equipped with a 10-foot NEMA L6-30P input cord, this PDU features remote management capabilities via Ethernet and RS-232 interfaces, allowing for real-time monitoring and control of power usage. Its robust construction and UL listing ensure reliability and compliance in demanding power distribution applications.
Key Features:
- High Power Capacity: Supports up to 5.76 kW at 200–240V, 24A single-phase.
- Outlet Configuration: Equipped with 12 IEC C13 and 4 IEC C19 outlets for varied equipment support.
- Input Connection: Comes with a 10 ft NEMA L6-30P input cord.
- Remote Management: Enables control and monitoring via Ethernet and RS-232 interfaces.
- Form Factor: 2U rack-mountable design for efficient space utilization.
- Certifications: UL listed for quality and safety assurance.
The EMAU06-10 delivers intelligent, high-efficiency power distribution with remote visibility and control, making it an ideal choice for modern data centers and critical IT infrastructure.
