Description

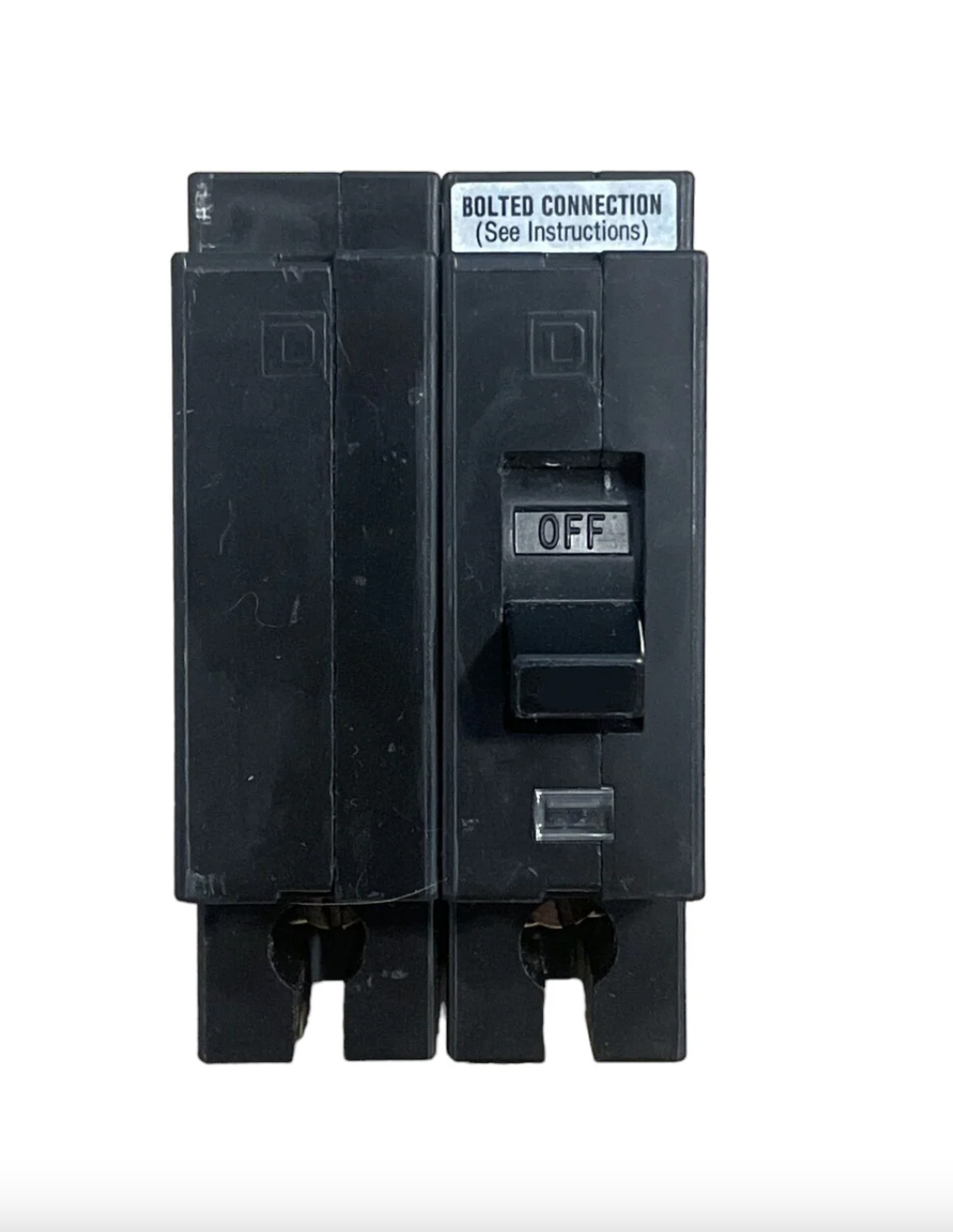

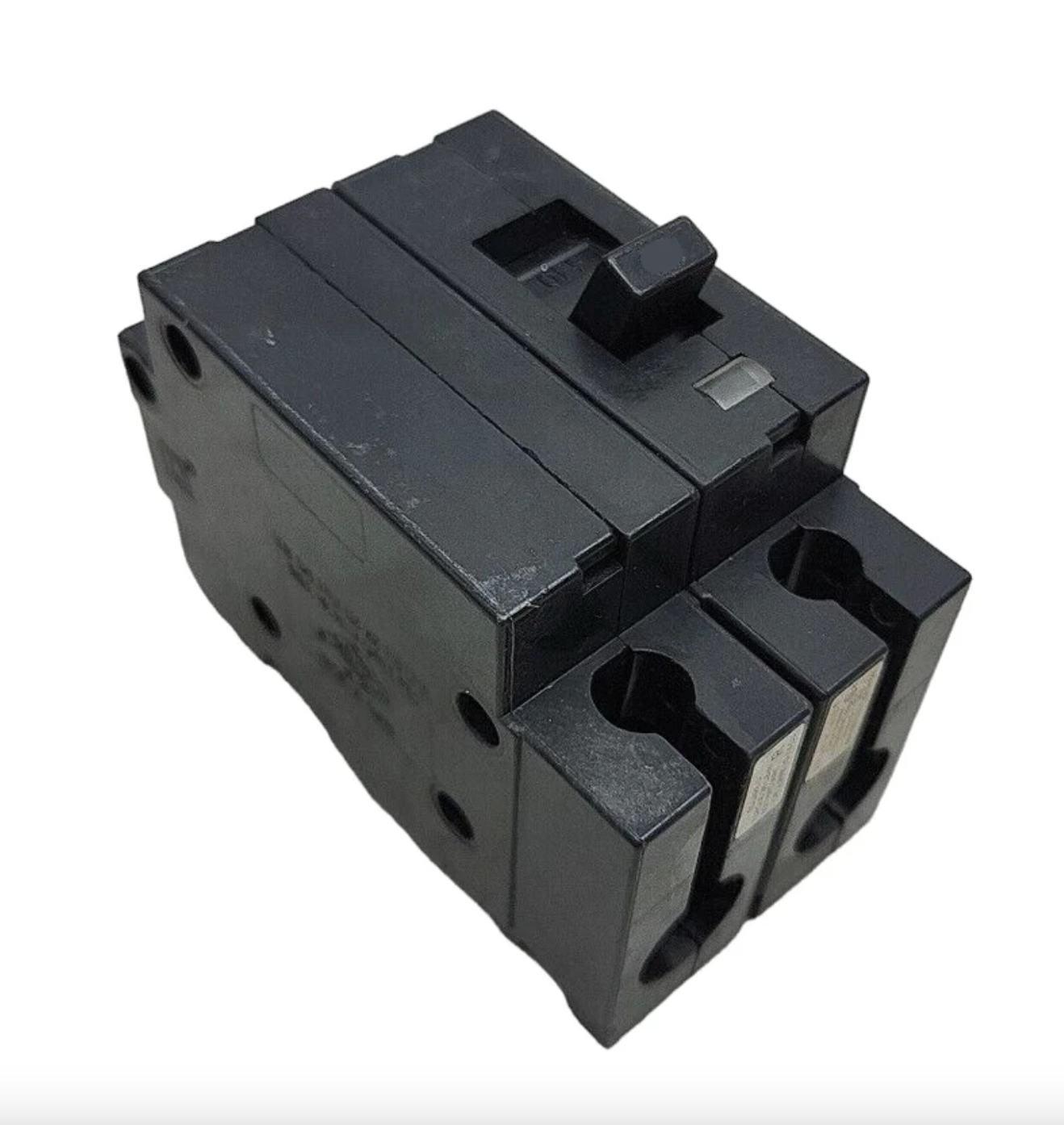

The Square D EHB24060 is a 2-pole molded case circuit breaker engineered for reliable overcurrent protection in commercial and industrial electrical systems. With a 60 amp rating and support for 277/480 VAC applications, this breaker uses a thermal magnetic trip mechanism to provide dependable long-time and instantaneous fault protection. Designed for bolt-on installation, the Square D EHB24060 ensures secure integration into compatible panelboards.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Square D
Category	Circuit Breakers
Part Number	EHB24060
Subcategory	Molded Case Circuit Breakers
Series	EHB
Frame Type	EH
Current Rating	60 A
Voltage Rating	277/480 VAC
Number of Poles	2
Phase	Single Phase
Interrupting Rating	14 kAIC at 277 V
Trip Unit Type	Thermal Magnetic
Trip Functions	Long-Time and Instantaneous (LI)
Mounting Type	Bolt-On
Certifications	UL Listed, CSA Certified
Operating Temperature	-25 °C to 70 °C
Weight	1 lb





Information About EHB24060

The EHB24060 is a Square D EHB series molded case circuit breaker built on the EH frame platform for compact and efficient power distribution. It is designed for use in NEHB panelboards and other compatible Square D systems requiring a 2-pole configuration. The breaker incorporates thermal magnetic protection technology to safeguard circuits against overloads and short circuits under standard operating conditions. UL Listed and CSA Certified, it is suitable for commercial and industrial environments where consistent performance and compliance are required.

Key Features:

• EHB Series Construction: Designed within the Square D EHB family for dependable molded case protection.
• 60 Amp Current Rating: Supports moderate-load branch circuits and feeder applications.
• 277/480 VAC Voltage Rating: Suitable for common commercial and industrial power systems.
• 2-Pole Configuration: Provides protection for single-phase, two-pole circuits.
• Thermal Magnetic Protection: Combines overload and short-circuit protection in one trip unit.
• LI Trip Function: Includes long-time and instantaneous trip response for fault conditions.
• Bolt-On Mounting: Ensures a secure and stable electrical connection.

The EHB24060 delivers the reliability and precision required for commercial and industrial power distribution protection.
