Description

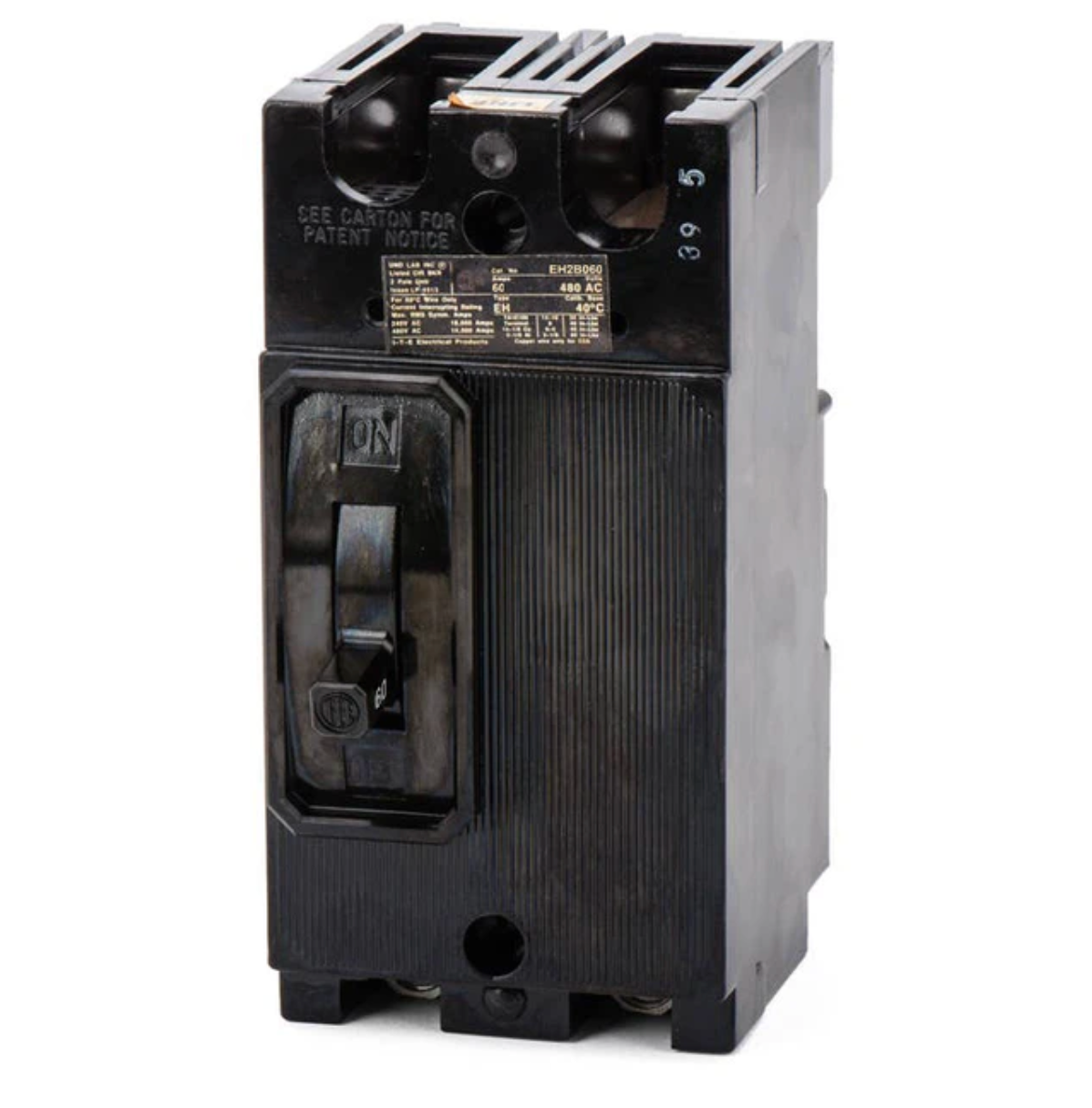

The Siemens EH2B060 is a 2-pole molded case circuit breaker designed to provide dependable protection for 480VAC single-phase systems. Offering a 60-amp current rating and thermal-magnetic trip performance, it ensures stable response to overload and short-circuit conditions. The EH2B060 is suited for applications requiring secure bolt-on installation and moderate interrupting capacity.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Circuit Protection |
| Part Number |
EH2B060 |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
EH |
| Amperage |
60A |
| Voltage Rating |
480VAC |
| Poles |
2 |
| Phase |
1 |
| Interrupting Rating |
14kAIC @ 480V |
| Protection Type |
Thermal Magnetic |
| Functions |
Long-Time and Instantaneous Trip |
| Frame Type |
EH |
| Connection Type |
Bolt-On |
| Terminal Connection |
Load-Side Lug |
| Manufacturer |
ITE / Siemens |
| Packaged Weight |
12 lb |
| Style / Type |
EH Series, Type EH |
| Weight |
12 lb |
Information About
EH2B060
The EH2B060 is part of the Siemens EH Series, built with a molded case design that supports reliable operation in commercial and industrial panelboards. Its bolt-on connection style ensures firm mechanical engagement and consistent conductivity within compatible Siemens and ITE distribution equipment. This model incorporates long-time and instantaneous trip technologies to manage both sustained overloads and rapid-rise faults. With a 14kAIC interrupting rating at 480V, the breaker is designed for systems where moderate fault currents must be safely interrupted.
Key Features:
- 60A Current Rating: Supports medium-capacity loads in single-phase 480VAC systems.
- Thermal-Magnetic Trip: Provides accurate long-time overload response and fast instantaneous short-circuit protection.
- 14kAIC Interrupting Rating: Suitable for applications with moderate fault-current requirements.
- Bolt-On Mounting: Ensures stable attachment to compatible panelboards and distribution equipment.
- Durable EH Frame: Designed for consistent mechanical and electrical performance over long service life.
- Load-Side Lug Terminal: Enables straightforward conductor termination for secure circuit integration.
- 2-Pole Configuration: Offers protection for two connected conductors within single-phase systems.
The EH2B060 delivers the reliability and precision required for molded case circuit protection in 480VAC applications.
