Description

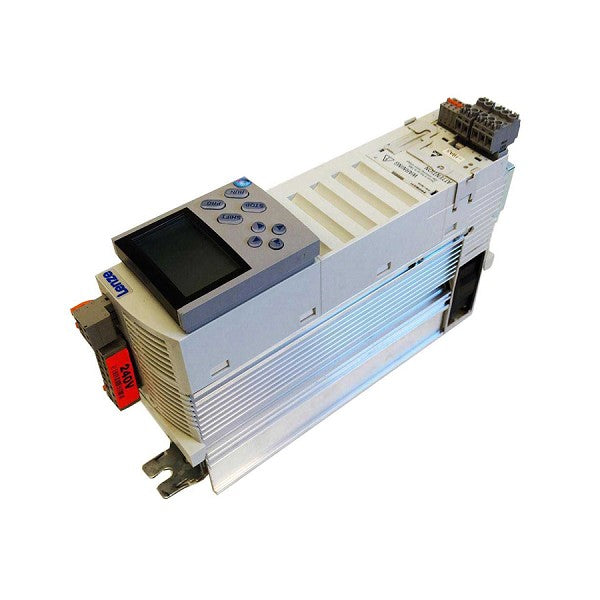

The Lenze E82EV222-2C is an 8200 Series frequency inverter designed for three-phase 230 VAC motor control applications. Rated at 2.2 kW with a nominal current of 9.5 A, it provides adjustable output voltage for regulated speed operation. The unit is panel-mounted and supplied without integrated EMC filters for standard industrial installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Drives |
| Part Number |
E82EV222-2C |
| Subcategory |
Drive |
| Series |
8200 Series |
| Product Type |
Frequency Inverter |
| Rated Power |
2.2 kW |
| Input Voltage |
200/240 VAC |
| Input Phase |
3 Phase |
| Rated Current |
9.5 A |
| Output Voltage |
0–200/240 VAC |
| Control Modes |
V/f Control, Vector Control |
| Cooling Method |
Natural Cooling |
| EMC Filter |
Without Integrated EMC Filter |
| Mounting Type |
Panel Mount |
| Status |
Discontinued by Manufacturer |
| Weight |
3.25 lbs |
Information About E82EV222-2C
The E82EV222-2C belongs to the Lenze 8200 inverter platform developed for compact and modular motor control systems. It operates on a 3-phase 200/240 VAC supply and delivers controlled output voltage up to the input level for precise speed regulation. The inverter supports both V/f and vector control modes to accommodate general-purpose and more dynamic applications. Designed for indoor panel installation, it features natural cooling and optional communication interfaces for integration into automation networks.
Key Features:
-
8200 Series Platform: Modular industrial frequency inverter architecture.
-
2.2 kW Rated Power: Suitable for light- to medium-duty motor control.
-
230 VAC 3-Phase Input: Designed for industrial three-phase systems.
-
9.5 A Rated Current: Supports continuous motor operation.
-
V/f and Vector Control Modes: Flexible control for varied application demands.
-
Panel-Mounted Design: Intended for control cabinet installation.
-
Natural Cooling: Passive thermal management without forced ventilation.
-
Without Integrated EMC Filter: Configured for systems using external filtering solutions.
The E82EV222-2C delivers the reliability and precision required for industrial variable frequency drive applications.
