E-50-107 102.3mm Dia x 1524.7mm FL Achromatic Lens

E-50107 102.3mm Dia x 1524.7mm FL Achromatic Lens

Product MGF2 Coating Curve

Product Drawing

Diameter (mm): 102.31 +0.00/-0.12

Effective Focal Length EFL (mm): 1524.73

Focal Length Tolerance (%): ±1

Back Focal Length BFL (mm): 1514.53

Focal Length Specification Wavelength (nm): 587.6

Clear Aperture CA (mm): 98.75

Centering (arcmin): 5.00

Center Thickness CT 1 (mm): 12.37

Center Thickness CT 2 (mm): 8.76

Center Thickness Tolerance (mm): ±0.86

Radius R₁ (mm): 908.13

Radius R₂ (mm): -626.59

Radius R₃ (mm): -625.40

Radius R₄ (mm): -2169.77

Edge Thickness ET (mm): 19.18

N-BK7 / N-SF2

Surface Quality: 60-40

f/#: 14.9

Numerical Aperture NA: 0.03

Coating: MgF₂ (400-700nm)

Coating Specification: R_avg ≤1.75% @ 400 - 700nm

Construction: Unmounted, Airspaced 0.10mm

Bevel: Protective bevel as needed

Type: Achromatic Lens

Wavelength Range (nm): 400 - 700

Product Family Description

Offered in Cemented or Air-Spaced Designs
Mounted Versions Available for Easy Integration
Feature MgF₂ Anti-Reflection Coating

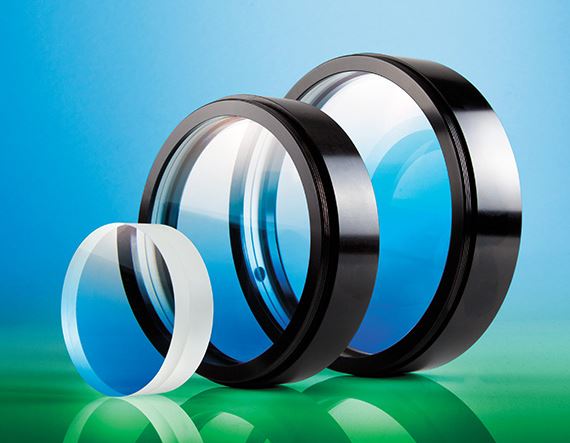

TECHSPEC® Large Precision Achromatic Lenses offer near-diffraction limited performance across the designated wavelength range. These color-corrected achromatic lenses feature long focal lengths and are available in either cemented or air-spaced designs. Mounted versions feature a male mounting thread for easy integration into optical systems. Adhesive foil spacers and mounting instructions are included for unmounted, air-spaced achromatic lenses.

Browse related categories

Pro Video & Cinema Equipment

Product

Name: E-50-107 102.3mm Dia x 1524.7mm FL Achromatic Lens
SKU: E-50107
Price: 3328.6 USD
Availability: InStock
